Toyota RAUM — STANDARD TOOL

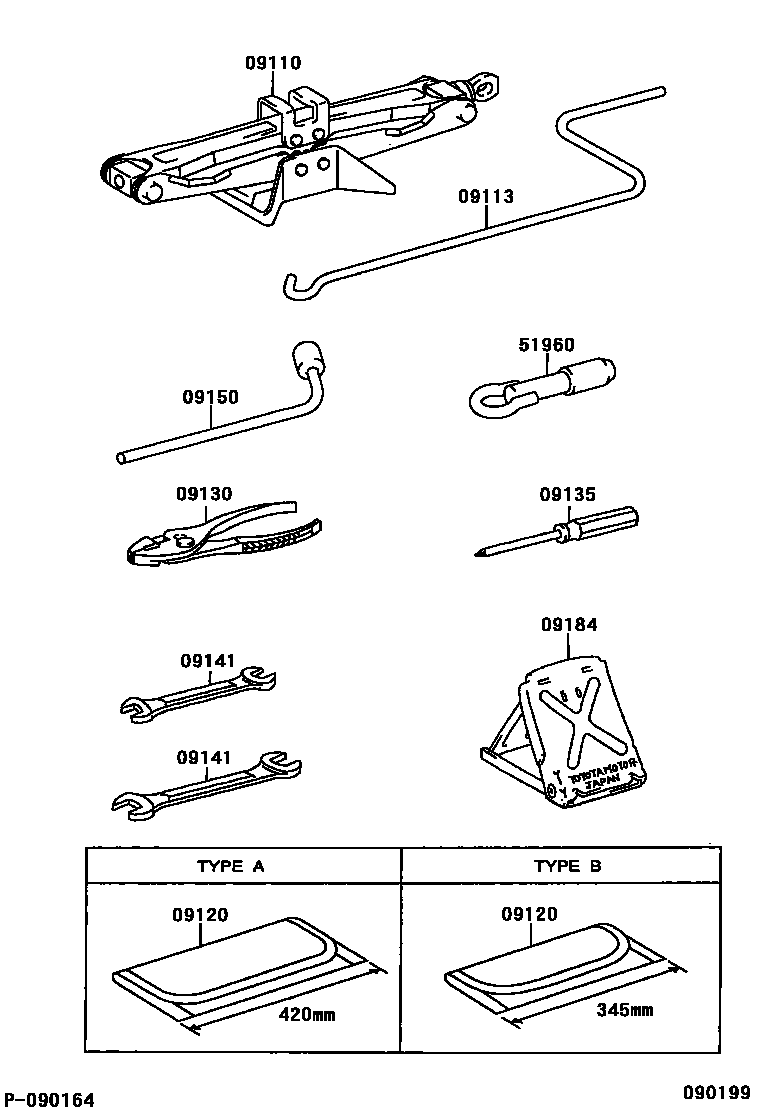

Parts diagram

09110JACK ASSY

main09111-47010i200403-201008

main09111-52040i200304-200308

main09111-52041i200308-200402

main09111-52060i201009

09113HANDLE, JACK

main09113-52010i200304-200308

main09113-52040i200308

09120BAG, TOOL

main09120-17020i200304

main09120-16030i200304

09130PLIERS

main99913-11500i200304

09135DRIVER, SCREW

main99915-10700i200304

09141SPANNER

main99914-10810i200304

main99914-11214i200304

09150WRENCH, HUB NUT BOX

main09150-40010i200304-201104

09184STOPPER, WHEEL

main09184-00010i200304

51960HOOK ASSY, FRONT

main51961-46010i200304-201104

9 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota RAUM

This section contains 9 genuine Toyota parts for the STANDARD TOOL system of the Toyota RAUM. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, PLIERS, DRIVER, SCREW.
