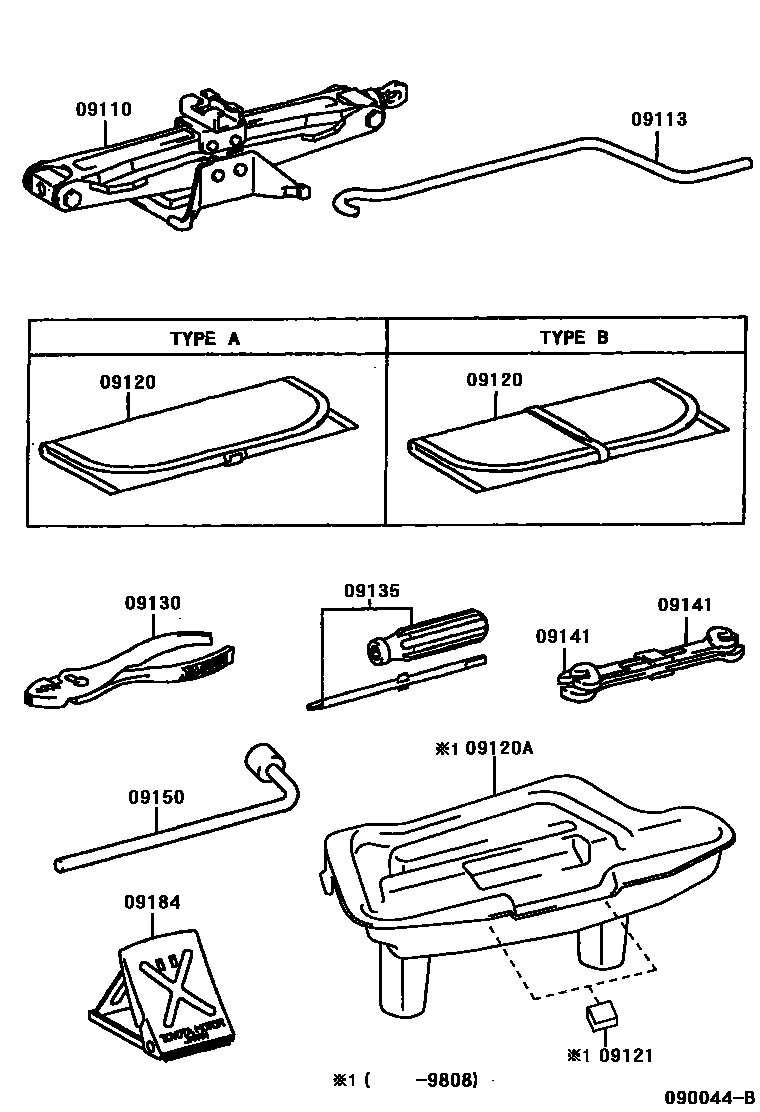

Toyota RAUM — STANDARD TOOL

09110JACK ASSY

main09111-20140i199705-199907

main09111-46010i199907

09113HANDLE, JACK

main09113-20030i199705-199907

main09113-52010i199907

09120BAG, TOOL

main09120-16030i199705

main09120-17020i199705

09120ACASE, TOOL

main75231-46010i199705-199808

09121SHEET, TOOL BAG, NO.1

main09121-46010×2i199705-199808

09130PLIERS

main99913-11500i199705

09135DRIVER, SCREW

main99915-10700i199705

09141SPANNER

main99914-10810i199705

main99914-11214i199705

09150WRENCH, HUB NUT BOX

main09150-40010i199705

09184STOPPER, WHEEL

main09184-00010i199705

10 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota RAUM

This section contains 10 genuine Toyota parts for the STANDARD TOOL system of the Toyota RAUM. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, CASE, TOOL, SHEET, TOOL BAG, NO.1.
