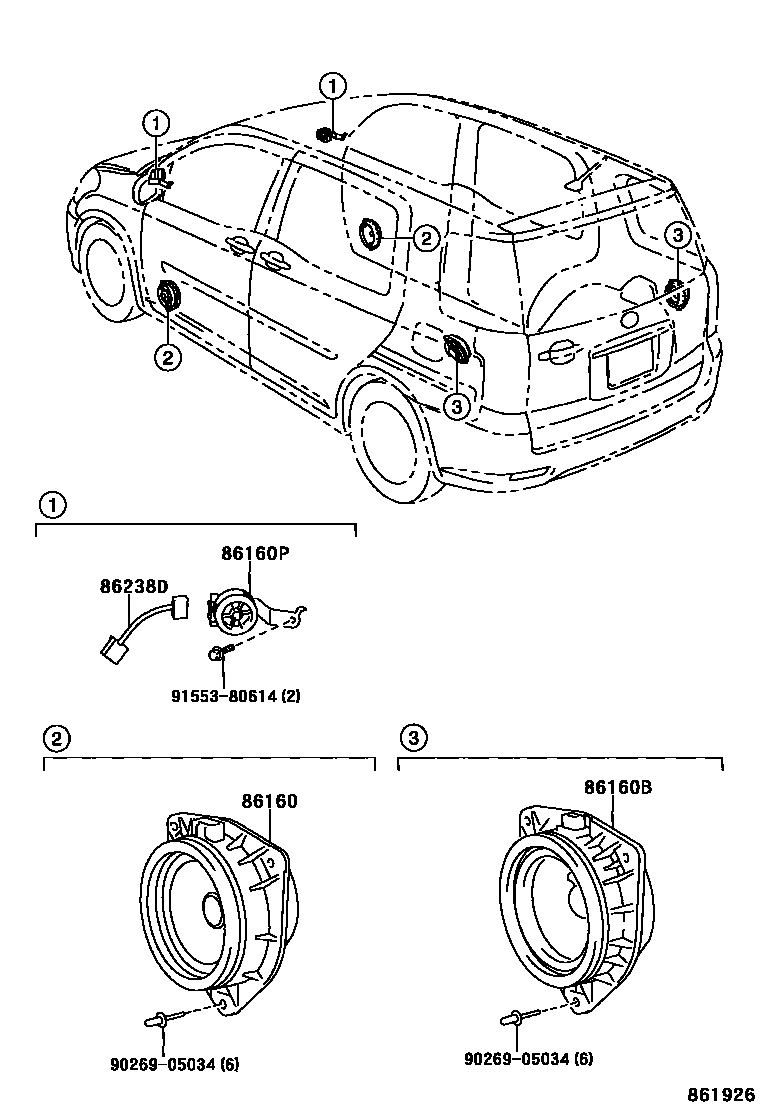

Toyota RAUM — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-22A10×2i200508-200611

main86160-2B580×2i200612

main86160-46060×2i200304-200507

86160BSPEAKER ASSY, REAR

main86160-13080×2i200304-200611

main86160-52220×2i200612

86160PSPEAKER ASSY, FRONT NO.2

main86160-46040i200304-200612

main86160-46050i200304-200612

86238DWIRE, SPEAKER

main86238-46010×2i200304-200612

9026905034

main90269-05034

9155380614

main91553-80614

6 parts on this diagram · 1 diagram in section

SPEAKER for Toyota RAUM

This section contains 6 genuine Toyota parts for the SPEAKER system of the Toyota RAUM. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2, WIRE, SPEAKER.
