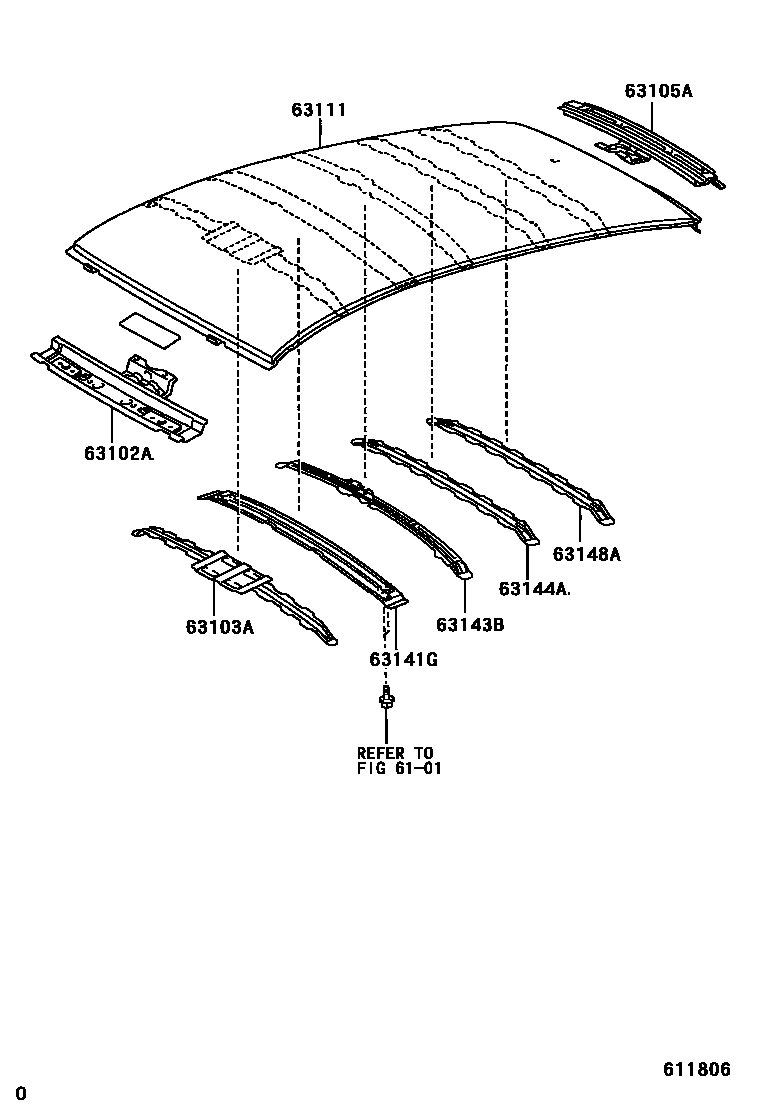

Toyota RAUM — ROOF PANEL & BACK WINDOW GLASS

6101SIDE MEMBER

→ Go to FIG 61-01

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-46020i200304-201104

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-46020i200304

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-46020i200304-201104

63111PANEL, ROOF

main63111-46050i200304

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-46020i200304

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63104-46010i200304

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-46020i200304

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-46010i200304

9 parts on this diagram · 1 diagram in section

ROOF PANEL & BACK WINDOW GLASS for Toyota RAUM

This section contains 9 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota RAUM. Key components include: SIDE MEMBER, PANEL SUB-ASSY, WINDSHIELD HEADER, REINFORCEMENT SUB-ASSY, ROOF PANEL, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF.
