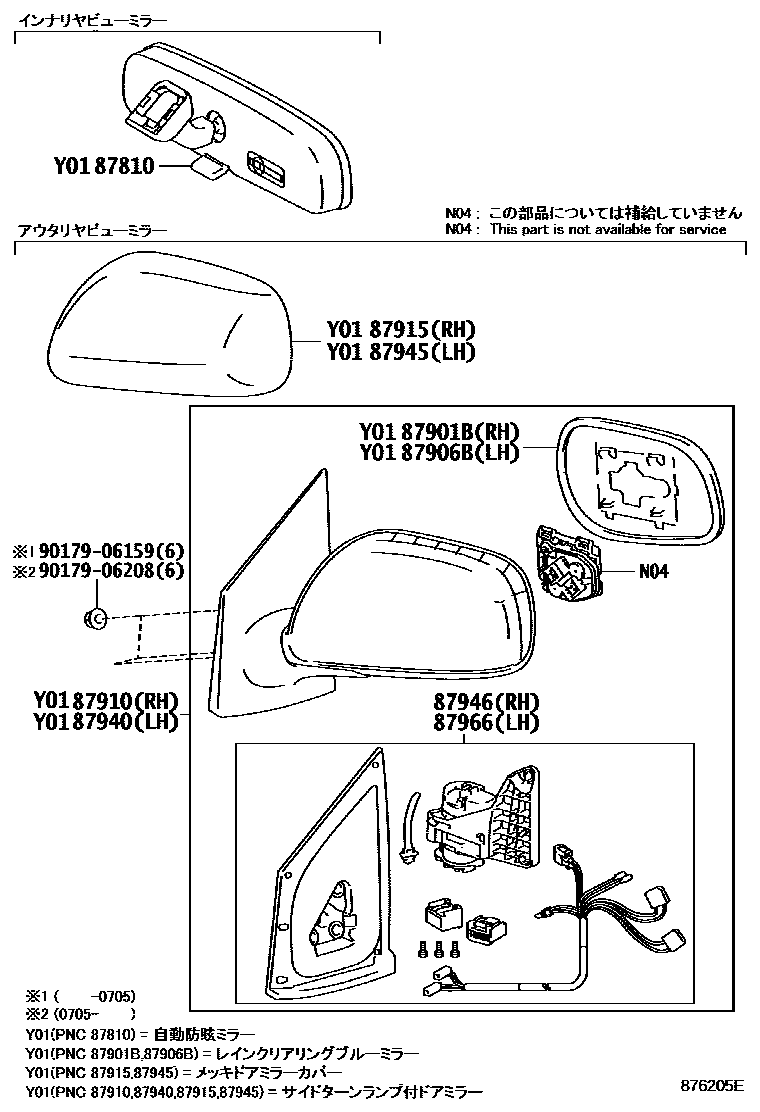

Toyota RAUM — MIRROR
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
SUPER RED 5,3P0
PALE ORANGE MICA METALLIC,4S3
LT.GREEN M.M.,6T4
DK.BLUE MC.,8N8
LT.BLUE M.M.,8R2
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
SUPER RED 5,3P0
PALE ORANGE MICA METALLIC,4S3
LT.GREEN M.M.,6T4
DK.BLUE MC.,8N8
LT.BLUE M.M.,8R2
87946RETRACTOR, OUTER MIRROR, RH
87966RETRACTOR, OUTER MIRROR, LH
9017906159
main90179-06159
9017906208
main90179-06208
11 parts on this diagram · 1 diagram in section
MIRROR for Toyota RAUM
This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota RAUM. Key components include: MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
