Toyota RAUM — MIRROR

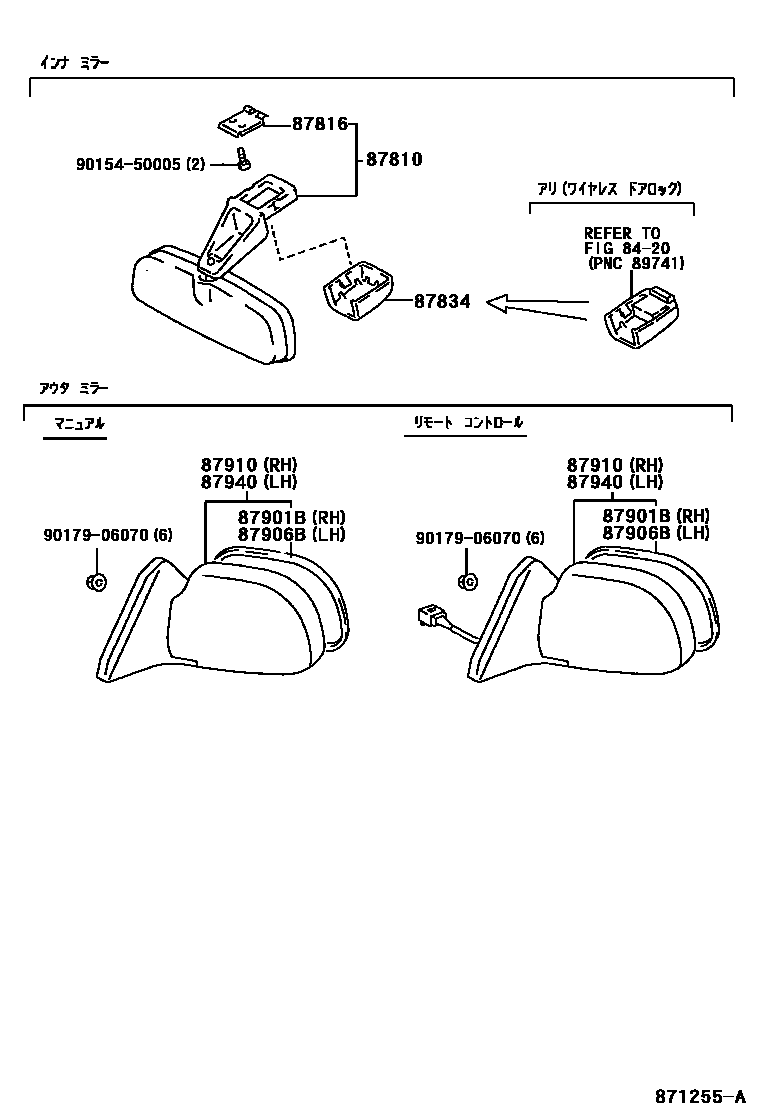

Parts diagram

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

87810MIRROR ASSY, INNER REAR VIEW

main87810-12270-A0i200204

main87810-12270-B3i199705-199907

LT.BLUISH GRAY,TRIM1#

main87810-12270-B7i199907

LT.GRAY,TRIM1#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i199705

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-16010-B0i199705-199907

LT.BLUISH GRAY,TRIM1#

main87834-16010-B1i199907-200304

LT.GRAY,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-44010i199705

main87931-46060i199907

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-44010i199705

main87961-46060i199907

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-46010i199705

main87910-46020i199709

main87910-46030i199705-199808

main87910-46040-A0i199709

main87910-46040-A1i200204

main87910-46040-B0i199808-199907

main87910-46040-B1i200204

main87910-46040-C0i199808-199907

main87910-46040-C1i200204

main87910-46040-D0i199709

main87910-46040-F1i199804

main87910-46040-F2i200204

main87910-46040-H0i199812-199907

main87910-46040-H1i200204

main87910-46040-J0i199804

main87910-46040-J1i199810-199812

main87910-46040-J2i200204

main87910-46040-K0i199808-199907

main87910-46050-A0i199812-199907

main87910-46050-B0i199812-199907

main87910-46050-C0i199812-199907

main87910-46050-H0i199812-199907

main87910-46060i199907-200204

main87910-46070-A0i200105-200204

main87910-46070-A1i199907-200204

main87910-46070-B0i199907-200204

main87910-46070-C0i199907-200204

main87910-46070-D0i199907-200204

main87910-46070-D1i200112-200204

main87910-46070-G0i199907-200204

main87910-46070-J0i199907-200204

main87910-46080-A0i199907-200204

main87910-46080-A1i199907-200204

main87910-46080-B0i199907-200204

main87910-46080-C0i199907-200204

main87910-46080-D0i199907-200204

main87910-46080-G0i199907-200204

main87910-46080-J0i199907-200204

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-46010i199705

main87940-46020i199709

main87940-46030i199705-199808

main87940-46040-A0i199709

main87940-46040-A1i200204

main87940-46040-B0i199808-199907

main87940-46040-B1i200204

main87940-46040-C0i199808-199907

main87940-46040-C1i200204

main87940-46040-D0i199709

main87940-46040-F1i199804

main87940-46040-F2i200204

main87940-46040-H0i199812-199907

main87940-46040-H1i200204

main87940-46040-J0i199804

main87940-46040-J1i199810-199812

main87940-46040-J2i200204

main87940-46040-K0i199808-199907

main87940-46050-A0i199812-199907

main87940-46050-B0i199812-199907

main87940-46050-C0i199812-199907

main87940-46050-H0i199812-199907

main87940-46060i199907-200204

main87940-46070-A0i200105-200204

main87940-46070-A1i199907-200204

main87940-46070-B0i199907-200204

main87940-46070-C0i199907-200204

main87940-46070-D0i199907-200204

main87940-46070-D1i200112-200204

main87940-46070-G0i199907-200204

main87940-46070-J0i199907-200204

main87940-46080-A0i199907-200204

main87940-46080-A1i199907-200204

main87940-46080-B0i199907-200204

main87940-46080-C0i199907-200204

main87940-46080-D0i199907-200204

main87940-46080-G0i199907-200204

main87940-46080-J0i199907-200204

9015450005

main90154-50005

9017906070

main90179-06070

10 parts on this diagram · 1 diagram in section

MIRROR for Toyota RAUM

This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota RAUM. Key components include: WIRELESS DOOR LOCK, MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
