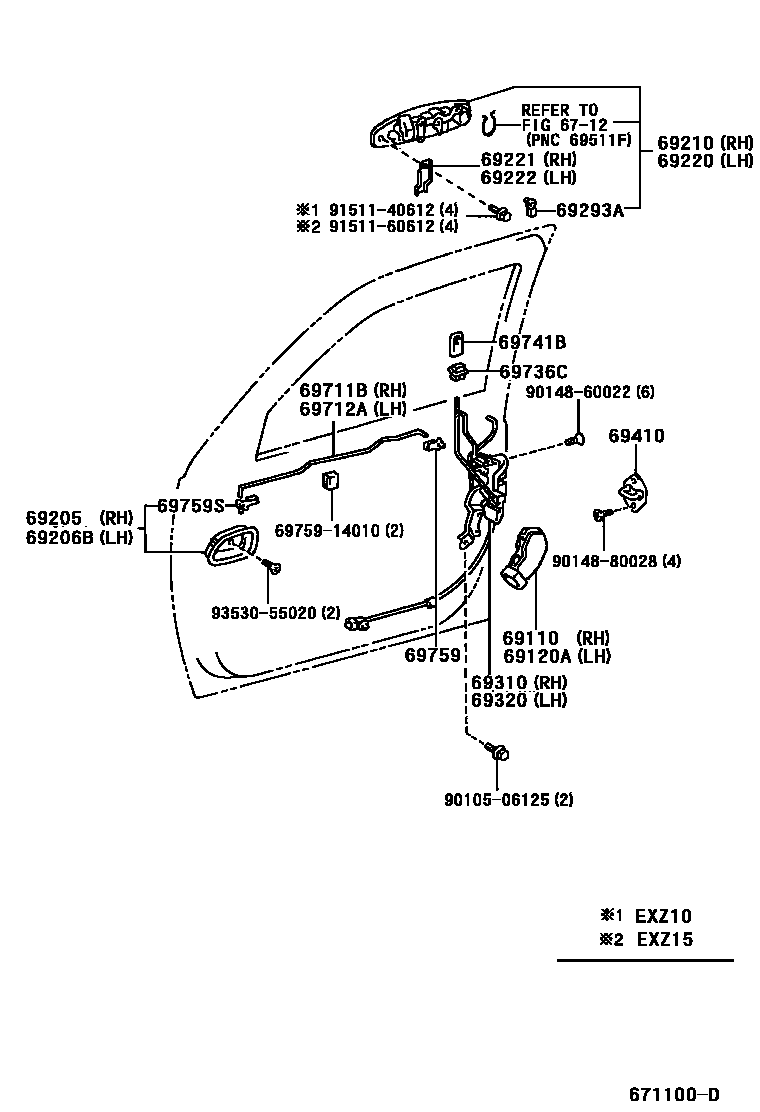

Toyota RAUM — FRONT DOOR LOCK & HANDLE
6712LOCK CYLINDER SET
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
MD.MOON MIST,TRIM1#
DK.GRAY,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
MD.MOON MIST,TRIM1#
DK.GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL MC.,049; WHITE PEARL MC.,049 ,2HX
SUPER WHITE 2,040
SILVER ME,199
SILVER ME.,1C0
BLACK ME,205
BLACK,202
SUPER RED II,3E5
CHAMPAGNE ME.,583
DK.GREEN MC.,6R4
DK.TURQUOISE.MC,742
LT.AQUA ME.OP.,761
BLUE MC.,8M6
DK.PURPLE MC.GR.,2DW
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL MC.,049; WHITE PEARL MC.,049 ,2HX
SUPER WHITE 2,040
SILVER ME.,1C0
BLACK ME,205
BLACK,202
SUPER RED II,3E5
CHAMPAGNE ME.,583
DK.GREEN MC.,6R4
DK.TURQUOISE.MC,742
LT.AQUA ME.OP.,761
BLUE MC.,8M6
DK.PURPLE MC.GR.,2DW
69221PLATE, FRONT DOOR OUTSIDE HANDLE BASE, RH
69222PLATE, FRONT SLIDE DOOR OUTSIDE HANDLE BASE, LH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69736CGUIDE, FRONT DOOR LOCKING LINK
69741BKNOB, FRONT DOOR LOCK CONTROL
MD. MOON MIST,TRIM1#
DK.GRAY,TRIM1#
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
6975914010SNAP, DOOR LOCK CONTROL LINK, NO.1
main69759-14010
9010506125
main90105-06125
9014860022
main90148-60022
9014880028
main90148-80028
9151140612
main91511-40612
9151160612
main91511-60612
9353055020
main93530-55020
26 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota RAUM
This section contains 26 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota RAUM. Key components include: LOCK CYLINDER SET, ACTUATOR ASSY, FRONT DOOR LOCK, RH, ACTUATOR ASSY, FRONT DOOR LOCK, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH.
