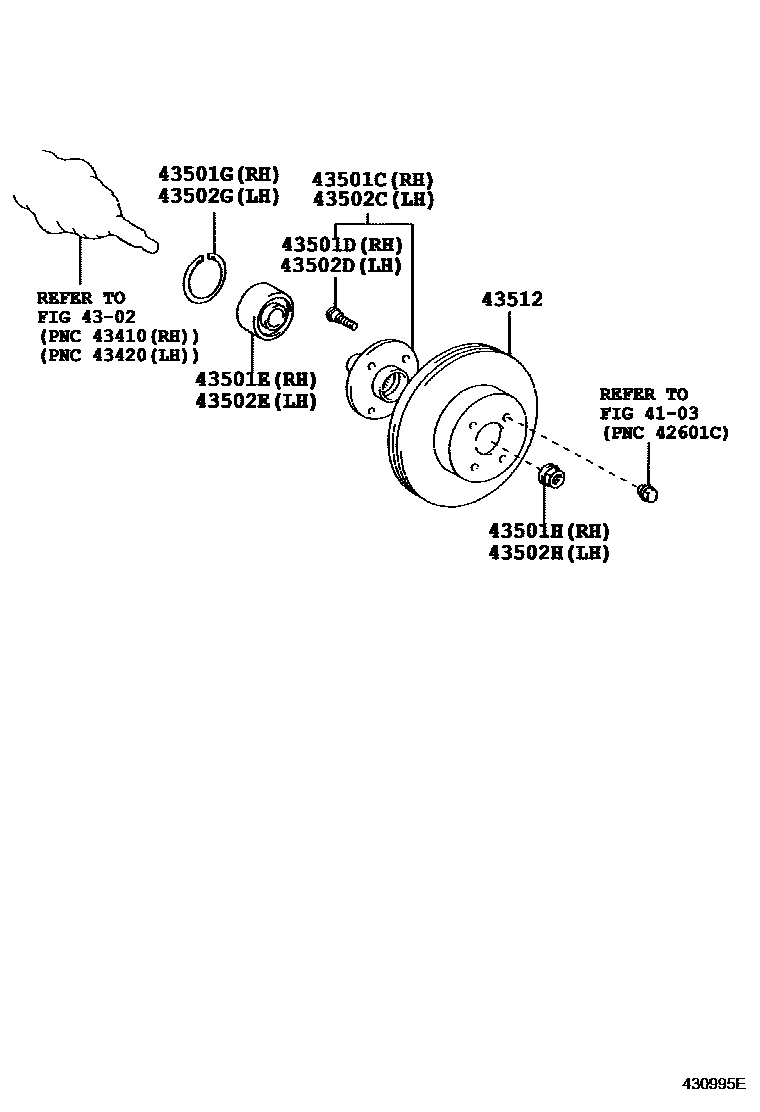

Toyota RAUM — FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52010i200304-201104

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4i200304

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-38021i200304

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001i200304

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200304

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52010i200304

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4i200304

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-38021i200304

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001i200304

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200304

43512DISC, FRONT

main43512-52080×2i200304-201104

13 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota RAUM

This section contains 13 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota RAUM. Key components include: DISC WHEEL & WHEEL CAP, FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH).
