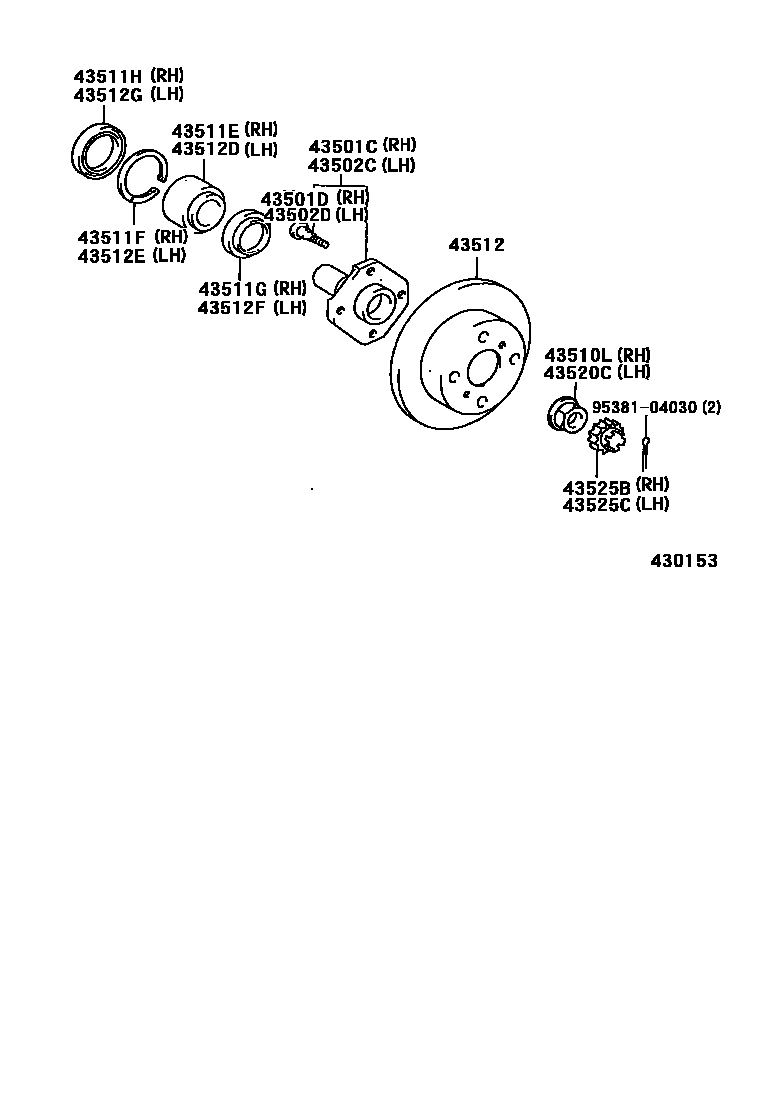

Toyota RAUM — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-16040i199705

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02047×4i199705

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-16040i199705

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02047×4i199705

43510LNUT (FOR STEERING KNUCKLE RH)

main90178-22001i199709

main90179-22020i199705-199709

43511EBEARING (FOR FRONT AXLE HUB RH)

main90369-38006i199705

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001i199705

43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)

main90311-54003i199705

43511HSEAL, OIL (FOR FRONT AXLE HUB INNER RH)

main90311-56017i199705

43512DISC, FRONT

main43512-16080×2i199705

43512DBEARING (FOR FRONT AXLE HUB LH)

main90369-38006i199705

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001i199705

43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)

main90311-54003i199705

43512GSEAL, OIL (FOR FRONT AXLE HUB INNER LH)

main90311-56017i199705

43520CNUT (FOR STEERING KNUCKLE LH)

main90178-22001i199709

main90179-22020i199705-199709

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030i199705

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030i199705

9538104030

main95381-04030

18 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota RAUM

This section contains 18 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota RAUM. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), HUB SUB-ASSY, FRONT AXLE, LH, BOLT, HUB (FOR FRONT AXLE LH), NUT (FOR STEERING KNUCKLE RH).
