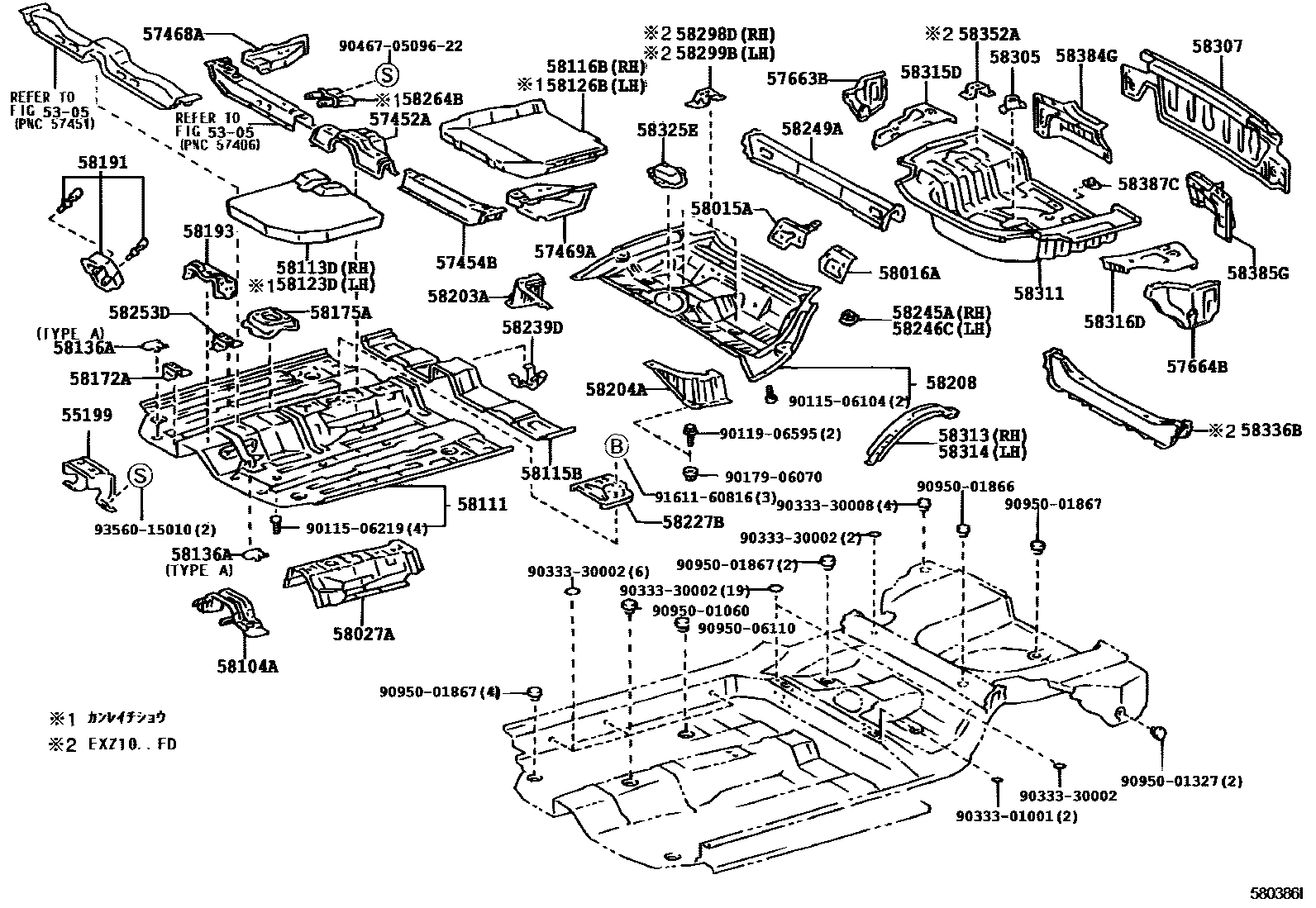

Toyota RAUM — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

5305

55199COVER, DASH PANEL COMPUTER

main55199-46010iEXZ1#199705

57452AMEMBER, FRONT FLOOR CROSS, NO.2

main57452-46010iEXZ10199705

57454BMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-46010iEXZ10199705

main57454-46020iEXZ15199708

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main58105-46010iEXZ1#199705

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main58106-46010iEXZ1#199705

57663BPANEL, REAR FLOOR SIDE, REAR RH

main57663-46010iEXZ1#199705

57664BPANEL, REAR FLOOR SIDE, REAR LH

main57664-46010iEXZ1#199705

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-16050iEXZ10199705

main58273-46010iEXZ15199708

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-10020iEXZ10199705

main58274-10010iEXZ15199708

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-46010iEXZ15199708

main58027-46020iEXZ10199705

58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT

main58104-16020iEXZ10199705

58111PAN, FRONT FLOOR

main58111-16901iEXZ15199708

main58111-16903iEXZ10199705

58113DPANEL, FRONT FLOOR SIDE, NO.1 RH

main58113-46010iEXZ1#199705

main58113-46020iEXZ1#199705

58115BPANEL, FRONT FLOOR, REAR

main58112-46010iEXZ10199705

main58112-46020iEXZ15199708

58116BPANEL, FRONT FLOOR REAR UPPER SIDE, RH

main58116-46010iEXZ15199708

main58116-46020iEXZ10199705

58123DPANEL, FRONT FLOOR SIDE, NO.1 LH

main58123-46010iEXZ1#199705

main58123-46020iEXZ1#199705

58126BPANEL, FRONT FLOOR REAR UPPER SIDE, LH

main58126-46010iEXZ15199708

main58126-46020iEXZ10199705

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12030×2iEXZ1#199705

main58136-46020×2iEXZ15199907

58172APLATE, PARKING BRAKE MOUNTING

main58172-46010iEXZ10199705-199907

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-46010iEXZ1#199705

58191FOOTREST, FRONT FLOOR

main58191-46010iEXZ1#199705-199711

main58191-46011iEXZ1#199711

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58109-46010iEXZ15199907

main58193-16060iEXZ1#199705-199907

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-46010iEXZ10..PB,SEPA199705

main58203-46020iEXZ15199708

main58203-46030iEXZ10..FD199907-200204

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-46010iEXZ10..PB,SEPA199705

main58204-46020iEXZ15199708

main58204-46030iEXZ10..FD199907-200204

58208PAN, CENTER FLOOR

main58211-16091iEXZ10199705

main58211-46010iEXZ15199708-200101

sub90333-30002

main58211-46011iEXZ15200101

58227BPLATE, FRONT FLOOR PANEL SIDE, RH

main58227-46010iEXZ10199907

main58227-46020iEXZ15199907

58239DBRACKET, CABLE CLAMP

main58239-46010iEXZ10199705

58245ABRACKET, REAR SEAT HINGE, CENTER NO.1

main58245-46010iEXZ1#199808

58246CBRACKET, REAR SEAT HINGE, CENTER NO.2

main58246-46010iEXZ1#199808

58249AREINFORCEMENT, REAR SEAT MOUNTING

main58205-46010iEXZ10199705-199808

main58205-46011iEXZ10..PB,SEPA199808

main58205-46020iEXZ15199708-199808

main58205-46021iEXZ15199808

58253DBRACKET, PARKING BRAKE CABLE

main58253-46010iEXZ10199705-199907

58264BBRACKET, PARKING BRAKE CABLE GUIDE

main58264-46010iEXZ1#199705

58298DREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH

main58298-46010iEXZ10..FD199907-200204

58299BREINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH

main58299-46010iEXZ10..FD199907-200204

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iEXZ10199705

main58351-10030iEXZ15199708

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-46010iEXZ1#199705

58311PAN, REAR FLOOR

main58311-10193iEXZ10199705

main58311-10201iEXZ15199708-200101

sub90333-30002

main58311-46010iEXZ15200101

sub58311-46011

58313PANEL, REAR FLOOR SIDE, RH

main58313-10030iEXZ15199708

main58313-16030iEXZ10199705

58314PANEL, REAR FLOOR SIDE, LH

main58314-10030iEXZ15199708

main58314-16090iEXZ10199705

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-46010iEXZ1#199705

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-46010iEXZ1#199705

58325ECOVER, REAR FLOOR SERVICE HOLE

main58031-16020iEXZ10199705

main58325-10040iEXZ15199708

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-46010iEXZ10..FD199907-200204

58352ABRACKET, REAR FLOOR STAY

main58352-46010×2iEXZ10..FD199907-200204

58384GGUSSET, LOWER BACK, UPPER RH

main58384-46010iEXZ1#199705

58385GGUSSET, LOWER BACK, UPPER LH

main58385-46010iEXZ1#199705

58387CPLATE, REAR FLOOR FINISH

main58387-10010iEXZ1#199705

9011506104

main90115-06104

9011506219

main90115-06219

9011906595

main90119-06595

9017906070

main90179-06070

9033301001

main90333-01001

9033330002

main90333-30002

9033330008

main90333-30008

904670509622

main90467-0509622

9095001060

main90950-01060

9095001327

main90950-01327

9095001866

main90950-01866

9095001867

main90950-01867

9095006110

main90950-06110

9161160816

main91611-60816

9356015010

main93560-15010

63 parts on this diagram · 2 diagrams in section
