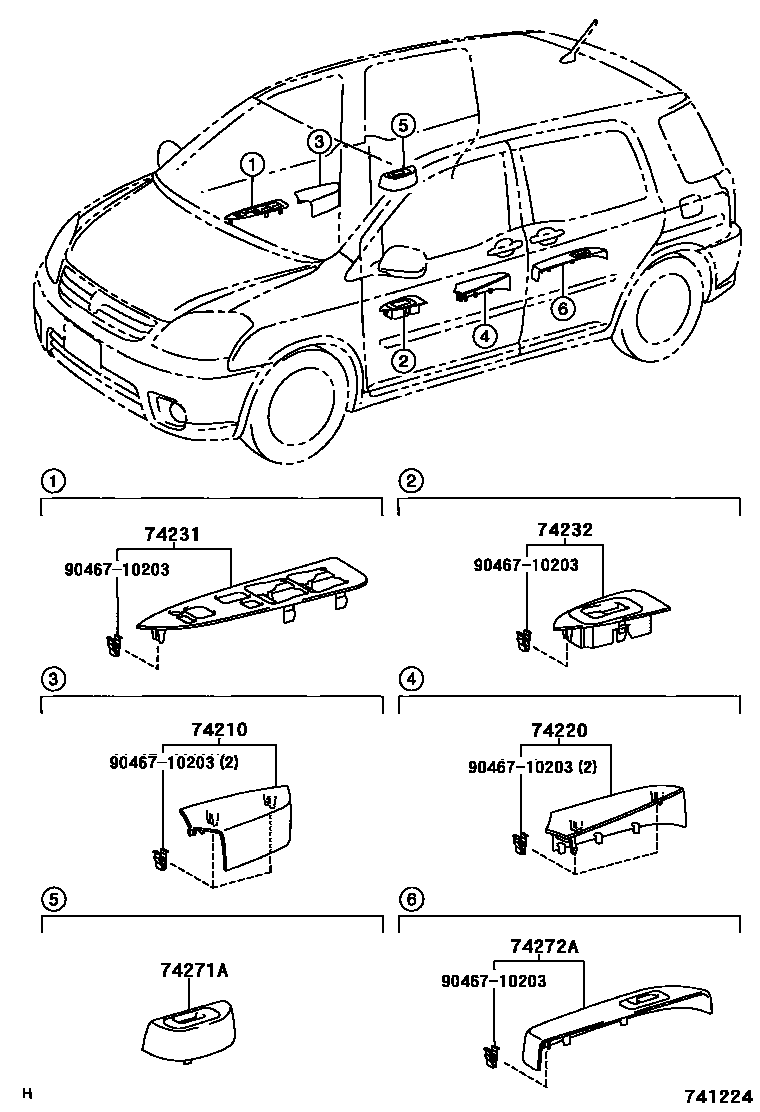

Toyota RAUM — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-46020-B0i200304-201104

MD.GRAY,TRIM1#

main74210-46020-E0i200304-201104

MD.NEUTRAL BONE,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74220-46020-B0i200304-201104

MD.GRAY,TRIM1#

main74220-46020-E0i200304-201104

MD.NEUTRAL BONE,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-46050-B0supersedes 74231-46040-B0i200612-201104

MD.GRAY,TRIM1#

main74231-46050-E0supersedes 74231-46040-E0i200612-201104

MD.NEUTRAL BONE,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-46030-B0i200304-201104

MD.GRAY,TRIM1#

main74232-46030-E0i200304-201104

MD.NEUTRAL BONE,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-46010-B0i200304-201104

MD.GRAY,TRIM1#

main74271-46010-E0i200304-201104

MD.NEUTRAL BONE,TRIM4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-46010-B0i200304-201104

MD.GRAY,TRIM1#

main74272-46010-E0i200304-201104

MD.NEUTRAL BONE,TRIM4#

9046710203

main90467-10203

7 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota RAUM

This section contains 18 genuine Toyota parts for the ARMREST & VISOR system of the Toyota RAUM. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH.
