Toyota RAUM — ARMREST & VISOR

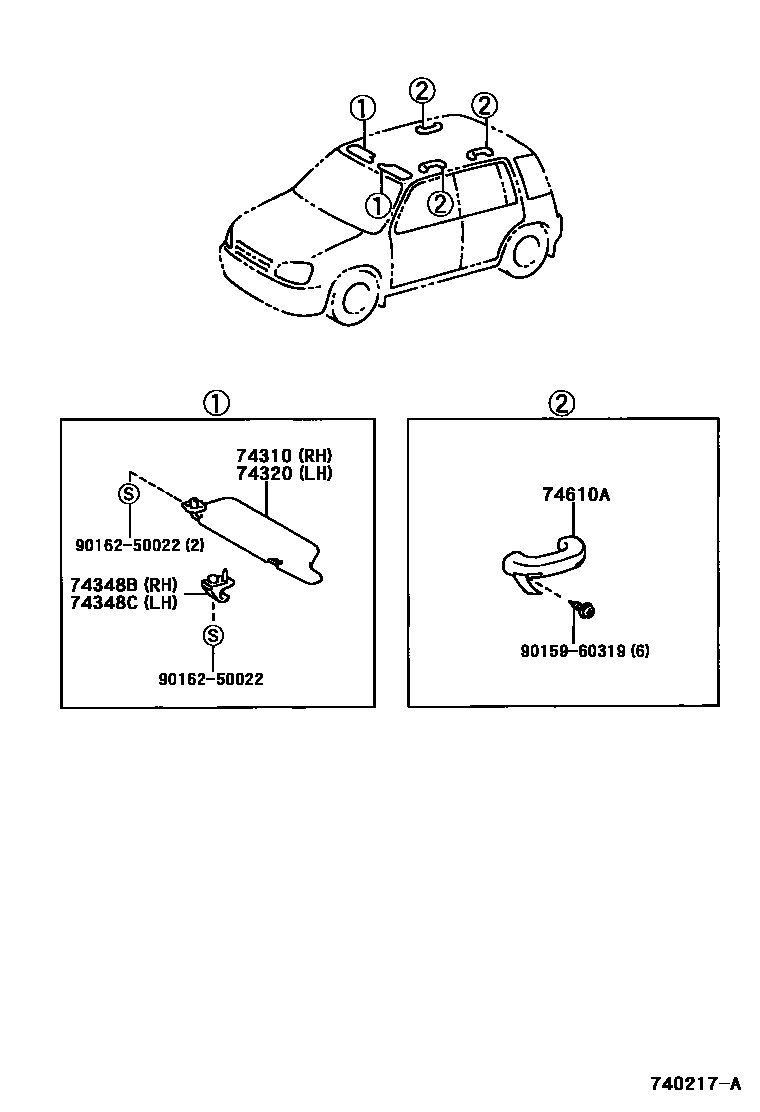

Parts diagram

74310VISOR ASSY, RH

main74310-46010-B0i199705-199708

main74310-46011-B0i199708-199907

main74310-46012-A0i200204

main74310-46012-B1i199907

main74310-46020-B0i199705-199708

LT.BLUISH GRAY,TRIM1#

main74310-46021-B0i199708-199808

LT.BLUISH GRAY,TRIM1#

main74310-46030-B0i199812-199907

main74310-46031-B1i199907-200204

74320VISOR ASSY, LH

main74320-46010-B0i199705-199708

main74320-46011-B0i199708-199907

main74320-46012-A0i200204

main74320-46012-B1i199907

main74320-46020-B0i199705-199708

LT.BLUISH GRAY,TRIM1#

main74320-46021-B0i199808-199907

LT.BLUISH GRAY,TRIM1#

main74320-46030-B0i199812-199907

main74320-46031-B1i199907-200204

74348BHOLDER, VISOR, RH

main74348-33030-A2i200204

main74348-33030-B1i199907

main74348-33030-B3i199705-199907

LT.BLUISH GRAY,TRIM1#

74348CHOLDER, VISOR, LH

main74348-33030-A2i200204

main74348-33030-B1i199907

main74348-33030-B3i199705-199907

LT.BLUISH GRAY,TRIM1#

74610AGRIP SUB-ASSY, ASSIST

main74611-20030-A1×3i200204

main74611-20030-B2×3i199705-199907

LT.BLUISH GRAY,TRIM1#

main74611-20030-B8×3i199907

9015960319

main90159-60319

9016250022

main90162-50022

7 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota RAUM

This section contains 13 genuine Toyota parts for the ARMREST & VISOR system of the Toyota RAUM. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, VISOR ASSY, RH.
