Toyota RAUM — ACCELERATOR LINK

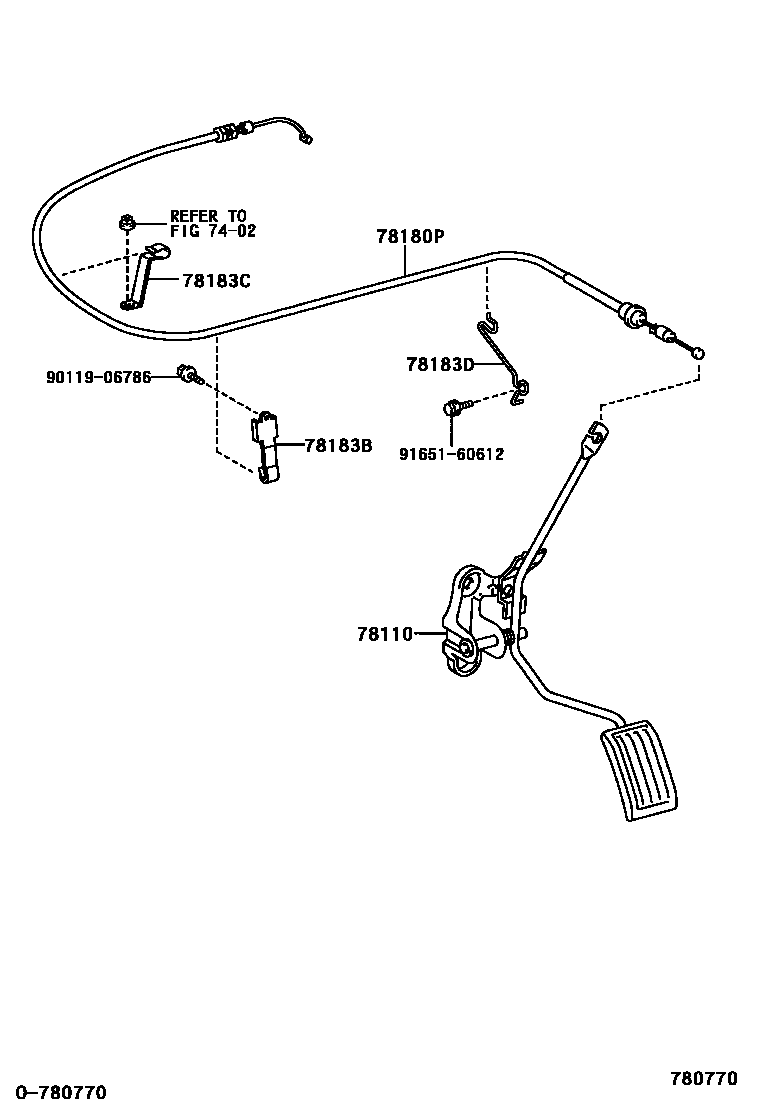

Parts diagram

7402BATTERY CARRIER

→ Go to FIG 74-02

78110ROD ASSY, ACCELERATOR PEDAL

main78120-52050i200304-200403

main78120-52110i200403

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-52030i200304

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-46020i200304

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-52120i200304

78183DCLAMP, ACCELERATOR CONTROL CABLE

main78183-46030i200304

9011906786

main90119-06786

9165160612

main91651-60612

8 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota RAUM

This section contains 8 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota RAUM. Key components include: BATTERY CARRIER, ROD ASSY, ACCELERATOR PEDAL, CABLE ASSY, ACCELERATOR CONTROL, CLAMP, ACCELERATOR CONTROL CABLE.
