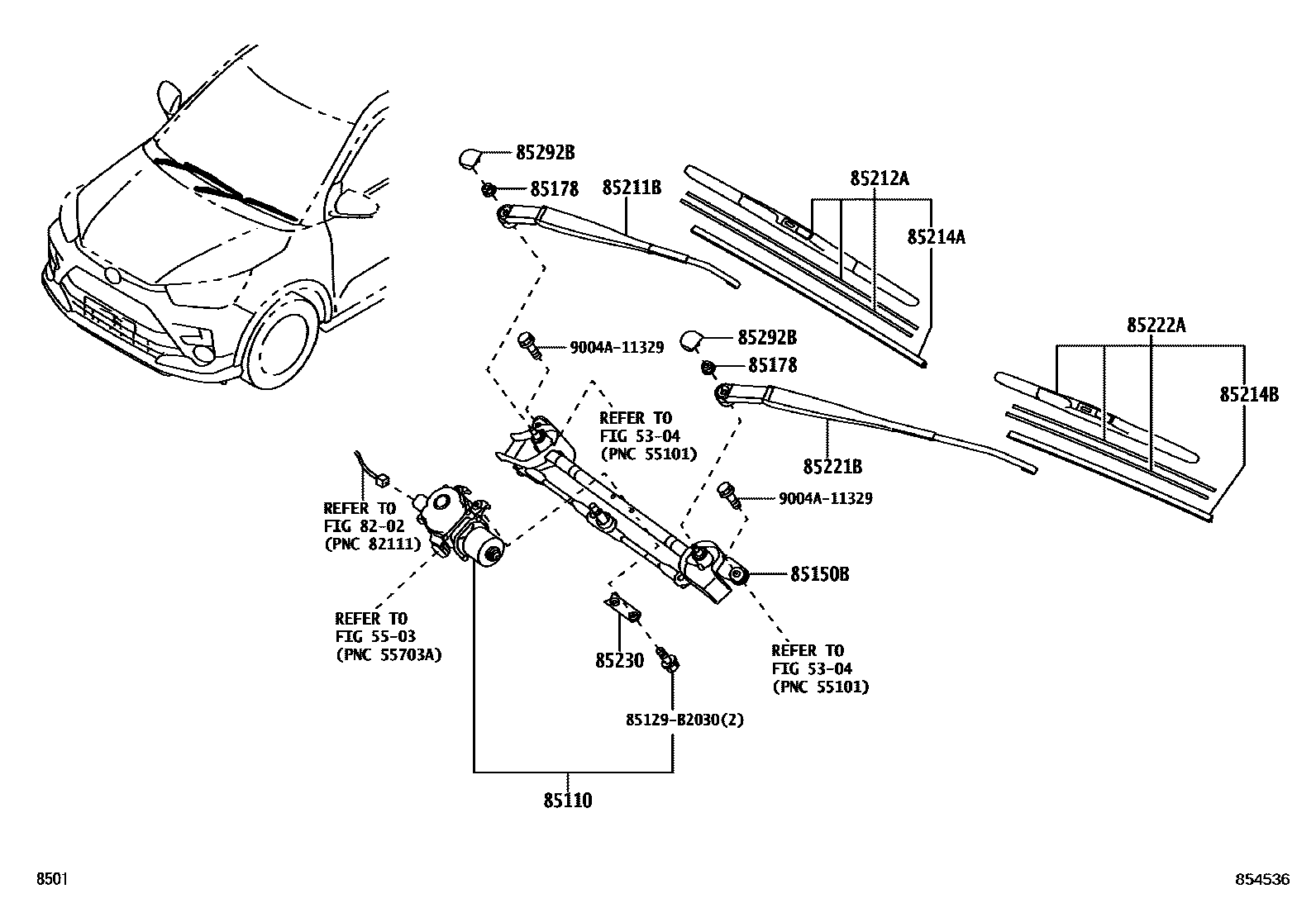

Toyota RAIZE — WINDSHIELD WIPER

0001 1 0002 1

5304

5503

8202

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-BZ250iA25#..RHD..GEN202108-202607

main85110-BZ280iA250..LHD..(GCC,GEN);A251..CVT..(CHL,GCC);A251..LHD..CVT..X..GEN;A251..LHD..5F..(CHL,GEN)202108-202608

main85110-BZ400iA25#..IDN202104-202606

main85110-BZ410iA25#..PHL202108-202607

85150BLINK ASSY, WIPER

main85150-BZ320iA25#..RHD202104-202607

main85150-BZ330iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

85178NUT (FOR FRONT WIPER ARM SETTING)

main81128-87205×2iA25#202104-202208

main90041-79379×2iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202209-202608

85211BARM, FRONT WIPER, RH

main85211-BZ240iA25#..RHD202104-202607

main85221-BZ320iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

85212ABLADE, FR WIPER, RH

main85212-BZ270iA25#..RHD202104-202607

main85222-BZ350iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

85214ARUBBER, WIPER, RH

main85214-BZ440iA25#..RHD202104-202607

main85214-BZ450iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

85214BRUBBER, WIPER, LH

main85214-BZ440iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

main85214-BZ450iA25#..RHD202104-202607

85221BARM, FRONT WIPER, LH

main85211-BZ320iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

main85221-BZ240iA25#..RHD202104-202607

85222ABLADE, FR WIPER, LH

main85212-BZ330iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

main85222-BZ280iA25#..RHD202104-202607

85230BRACKET ASSY, WINDSHIELD WIPER

main85230-B2010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

85292BCAP, FRONT WIPER ARM HEAD

main85292-BZ110×2iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

85129B2030COIL, WINDSHIELD WIPER MOTOR FIELD

main85129-B2030

9004A11329

main9004A-11329

16 parts on this diagram · 2 diagrams in section
