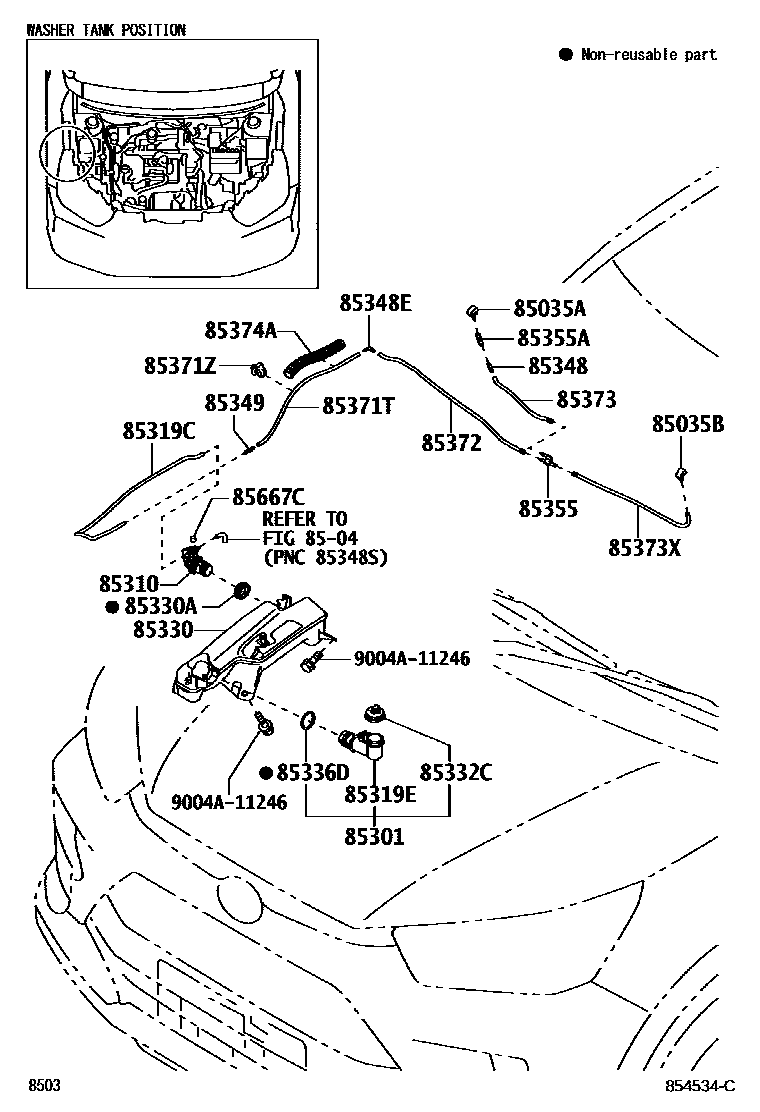

Toyota RAIZE — WINDSHIELD WASHER

0001 1 0002 1

85035ANOZZLE, FR WASHER, RH

main85381-BZ260iA25#..RHD202104-202607

main85381-BZ270iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

85035BNOZZLE, FRONT WASHER, LH

main85381-BZ270iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

8504

85301INLET SUB-ASSY, WASHER

main85301-BZ020iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-BZ190iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

85319CHOSE, WASHER

main85374-BZK40iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

85319EINLET WASHER

main85318-BZ030iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

85330JAR ASSY, WINDSHIELD WASHER

main85315-BZ200iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

85330ABUSH, WINDSHIELD WASHER JAR

main85336-BZ020iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

85332CCAP, FRONT WASHER TANK

main85332-BZ030iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

85336DPACKING, WINDSHIELD WASHER JAR

main85336-BZ050iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85317-BZ020iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85317-BZ040iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85317-BZ020iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

85355VALVE, WINDSHIELD WASHER HOSE

main85377-BZ010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

85355AJOINT, WINDSHIELD WASHER ELBOW

main85375-BZ020iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)

main85374-BZK70iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

L=370

85371ZCLAMP, WASHER HOSE

main82711-16790iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85374-BZK90iA25#..RHD202104-202607

L=580

main85374-BZL10iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

L=710

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85374-BZK80iA25#..RHD202104-202607

L=210

main85374-BZL00iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

L=420

85373XHOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE), NO.2

main85374-BZL20iA25#..RHD202104-202607

L=390

main85374-BZL30iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

L=190

85374APROTECTOR, WASHER HOSE

main85372-BZ050iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

85667CCOVER, MOTOR

main85338-BZ010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

9004A11246

main9004A-11246

24 parts on this diagram · 2 diagrams in section
