Toyota RAIZE — WATER PUMP

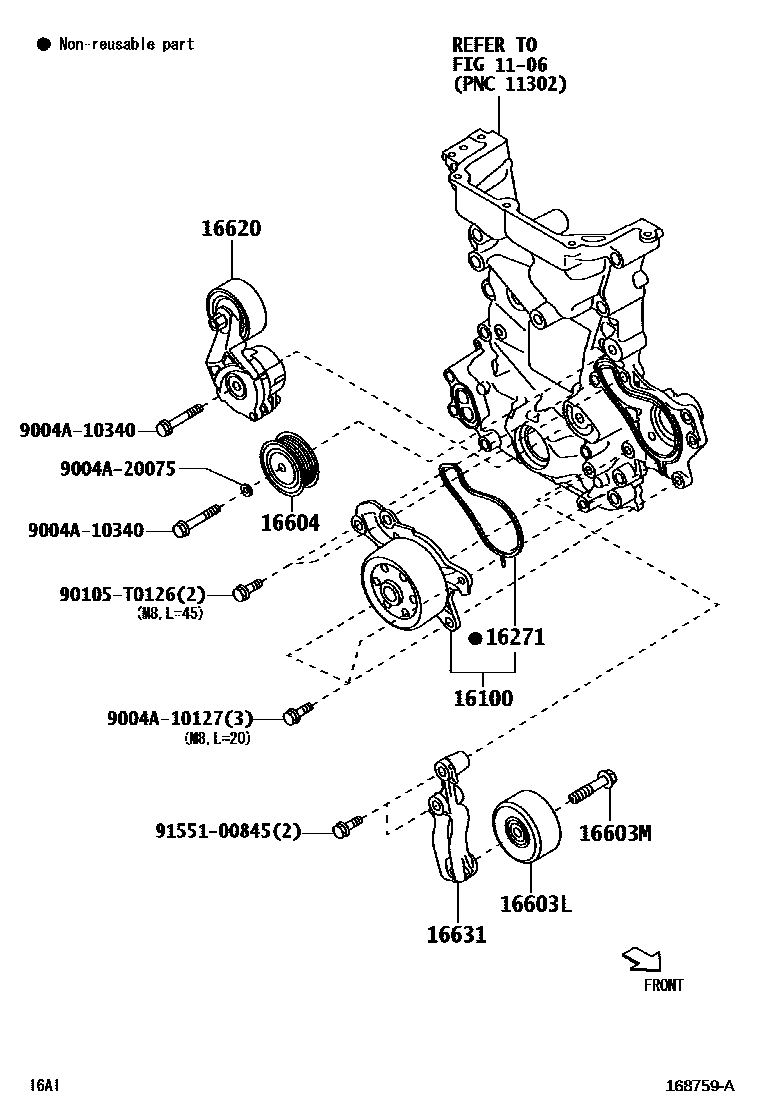

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16100PUMP ASSY, ENGINE WATER

main16100-80017i202104-202608

main16100-B9700i202104-202209

main16100-B9710i202209-202608

16271GASKET, WATER PUMP

main16271-40030i202104-202608

main16271-B1020i202104-202209

main16271-BZ080i202209-202608

16603LPULLEY SUB-ASSY, IDLER, NO.1

main16603-B1010i202104-202207

main16603-B1011i202209-202608

16603MBOLT(FOR IDLER PULLEY)

main91552-81050i202104-202208

M10,L=50

main91672-81050i202104-202608

M10,L=30

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-23011i202104-202608

16620TENSIONER ASSY, V-RIBBED BELT

main16620-B1040i202104-202209

main16620-BZ020i202104-202608

main16620-BZ050i202209-202608

16631BRACKET, IDLER PULLEY

main16631-B1010i202104-202501

9004A10127

main9004A-10127

9004A10340

main9004A-10340

9004A20075

main9004A-20075

90105T0126

main90105-T0126

9155100845

main91551-00845

13 parts on this diagram · 2 diagrams in section

WATER PUMP for Toyota RAIZE

This section contains 15 genuine Toyota parts for the WATER PUMP system of the Toyota RAIZE. Key components include: TIMING GEAR COVER & REAR END PLATE, RADIATOR & WATER OUTLET, PUMP ASSY, ENGINE WATER, GASKET, WATER PUMP, PULLEY SUB-ASSY, IDLER, NO.1.
