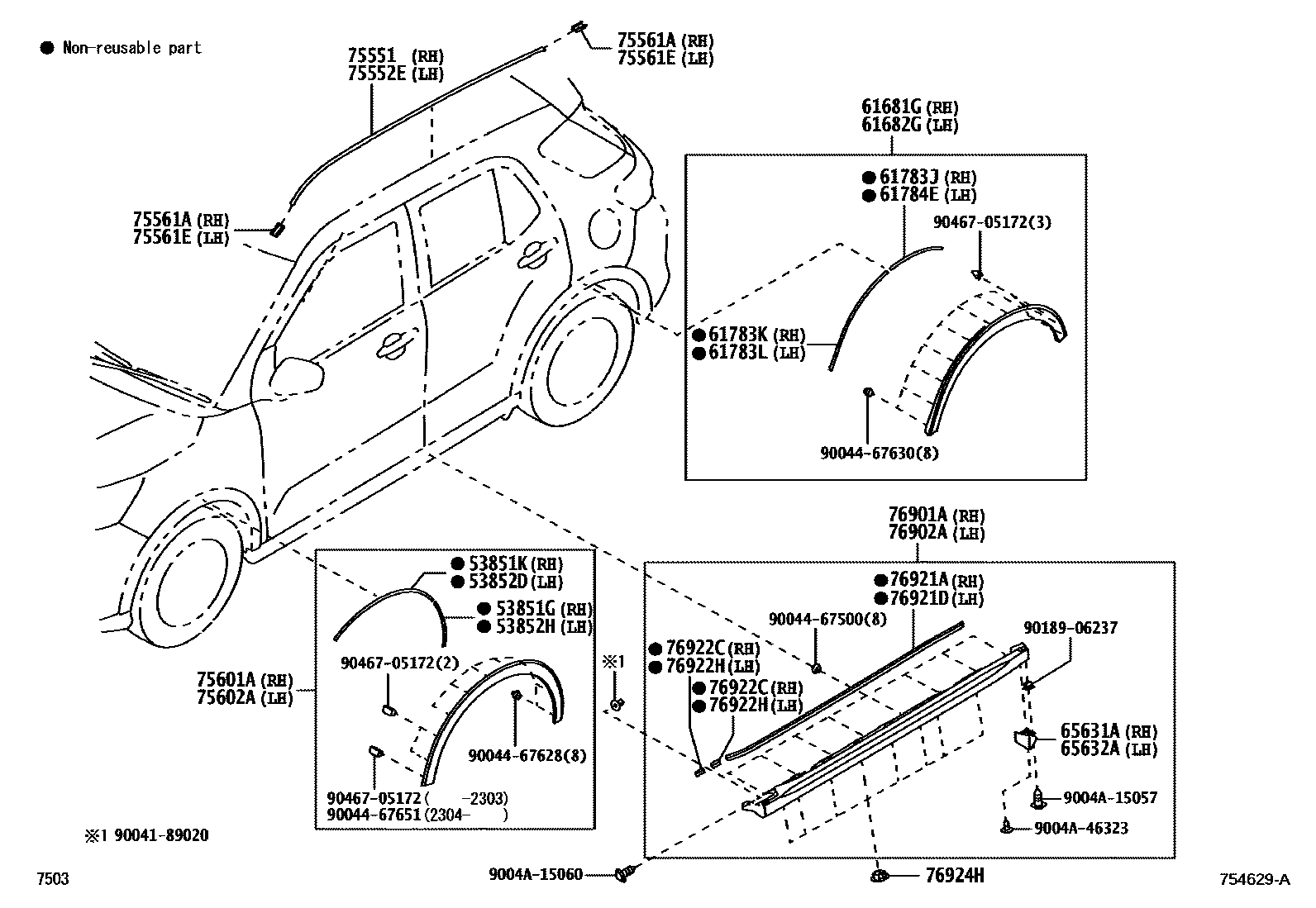

Toyota RAIZE — SIDE MOULDING
53851GPAD, FRONT WHEEL OPENING EXTENSION, RH
53851KPAD, FRONT WHEEL OPENING EXTENSION, RH
53852DPAD, FRONT WHEEL OPENING EXTENSION, LH
53852HPAD, FRONT WHEEL OPENING EXTENSION, LH
61681GEXTENSION, REAR WHEEL OPENING, RH
61682GEXTENSION, REAR WHEEL OPENING, LH
61783JPAD, REAR WHEEL OPENING EXTENSION, NO.2
61783KPAD, REAR WHEEL OPENING EXTENSION, RH
61783LPAD, REAR WHEEL OPENING EXTENSION, LH
61784EPAD, REAR WHEEL OPENING EXTENSION, NO.2
65631APLATE, REAR WHEEL HOUSE, FRONT RH
65632APLATE, REAR WHEEL HOUSE, FRONT LH
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
75552EMOULDING, ROOF DRIP SIDE FINISH, LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75561ECLIP, ROOF DRIP SIDE FINISH MOULDING, LH
75601AMOULDING SUB-ASSY, FRONT FENDER, RH
75602AMOULDING SUB-ASSY, FRONT FENDER, LH
76901AMUDGUARD SUB-ASSY, SIDE, RH
76902AMUDGUARD SUB-ASSY, SIDE, LH
76921APROTECTOR, SIDE MUDGUARD, NO.1
76921DPROTECTOR, SIDE MUDGUARD, NO.1
76922CPROTECTOR, SIDE MUDGUARD, NO.2
76922HPROTECTOR, SIDE MUDGUARD, NO.2
76924HRETAINER, SIDE MUDGUARD, NO.2
9004189020
main90041-89020
9004467500
main90044-67500
9004467628
main90044-67628
9004467630
main90044-67630
9004467651
main90044-67651
9004A15057
main9004A-15057
9004A15060
main9004A-15060
9004A46323
main9004A-46323
9018906237
main90189-06237
9046705172
main90467-05172
35 parts on this diagram · 1 diagram in section
SIDE MOULDING for Toyota RAIZE
This section contains 35 genuine Toyota parts for the SIDE MOULDING system of the Toyota RAIZE. Key components include: PAD, FRONT WHEEL OPENING EXTENSION, RH, PAD, FRONT WHEEL OPENING EXTENSION, LH, EXTENSION, REAR WHEEL OPENING, RH.
