Toyota RAIZE — MOUNTING

0001 1 0002 1 0003 1 0004 1

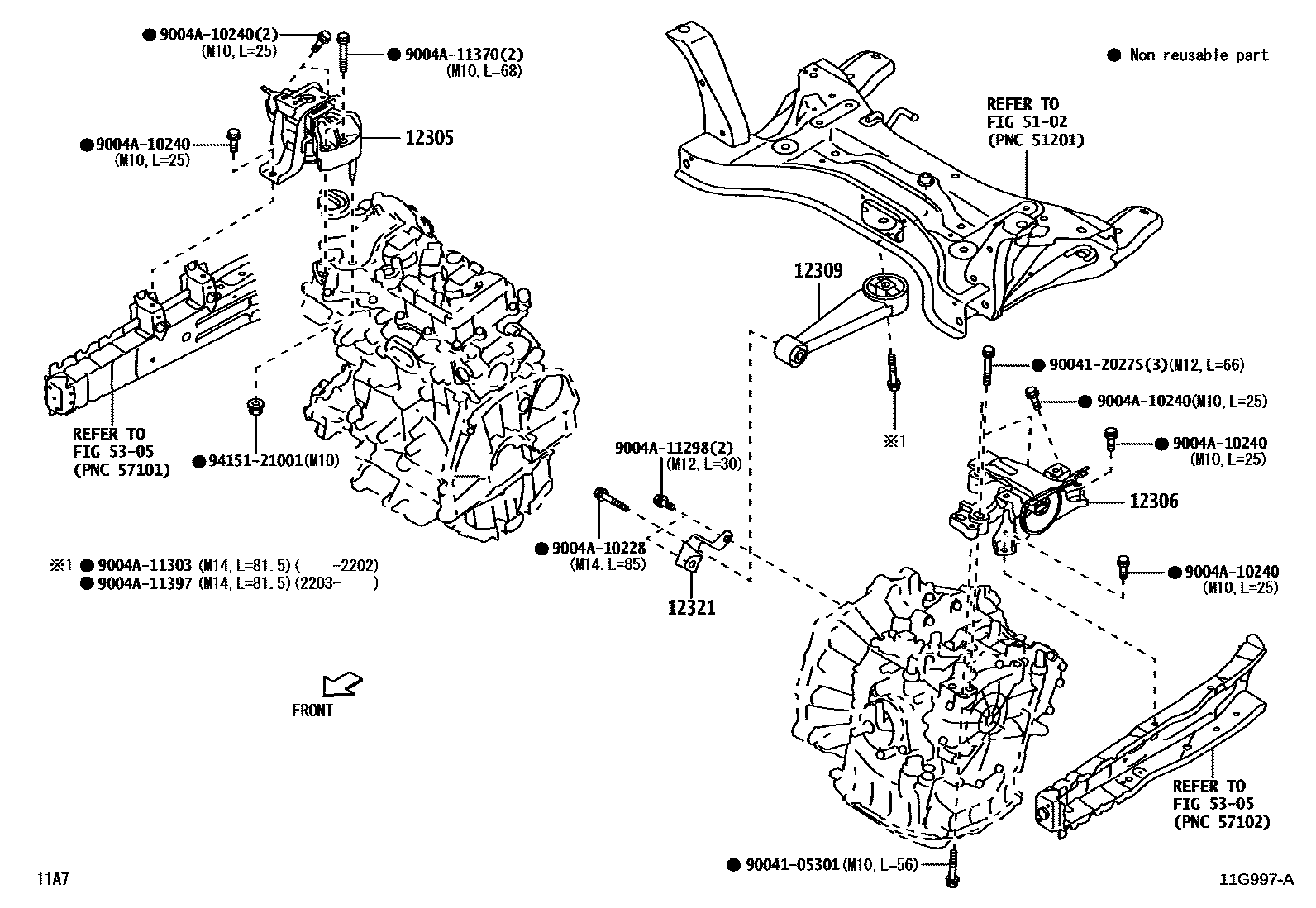

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-BZ120iWAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202104-202608

main12305-BZ320iWAVE..A251..5F202104-202608

main12305-BZ330i1KRVET..A250..CVT202104-202608

main12305-BZ340i1KRVET..A250..5F202104-202607

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-BZ340iWAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202104-202608

main12306-BZ350iWAVE..A251..5F202104-202608

main12306-BZ360i1KRVET..A250..CVT202104-202608

main12306-BZ370i1KRVET..A250..5F202104-202607

12309ROD SUB-ASSY, ENGINE MOVING CONTROL

main12309-BZ120iWAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202104-202608

main12309-BZ260i1KRVET..A250..CVT202104-202608

main12309-BZ270iWAVE,1KRVET..A25#..5F202104-202608

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-BZ360i1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202104-202608

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9004105301

main90041-05301

9004120275

main90041-20275

9004A10228

main9004A-10228

9004A10240

main9004A-10240

9004A11298

main9004A-11298

9004A11303

main9004A-11303

9004A11370

main9004A-11370

9004A11397

main9004A-11397

9415121001

main94151-21001

15 parts on this diagram · 4 diagrams in section
