Toyota RAIZE — HORN

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

6101SIDE MEMBER

→ Go to FIG 61-01

8202WIRING & CLAMP

→ Go to FIG 82-02

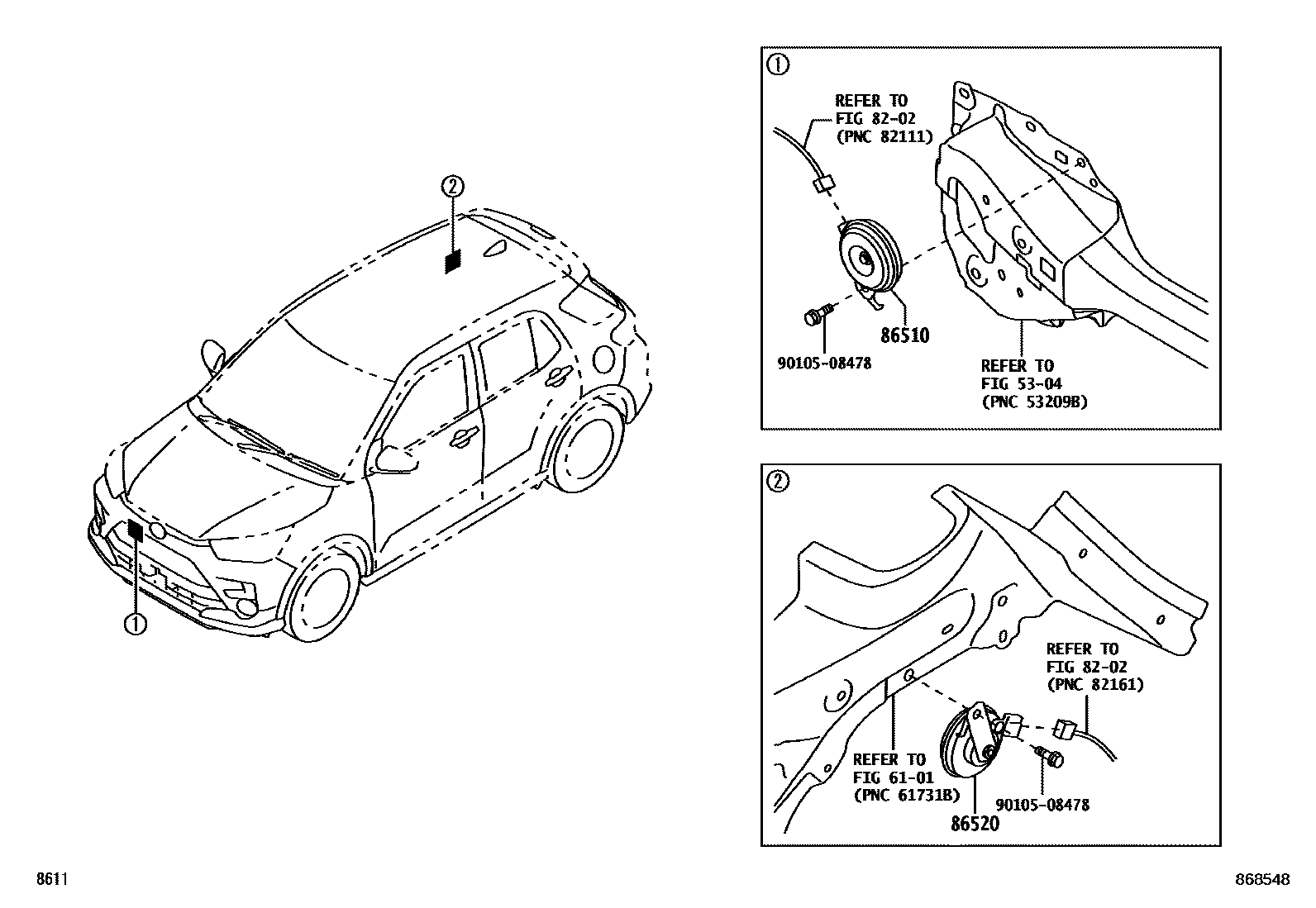

86510HORN ASSY, HIGH PITCHED

main86510-BZ250i202104-202608

86520HORN ASSY, LOW PITCHED

main86520-BZ250i202104-202608

SECURITY HORN

9010508478

main90105-08478

6 parts on this diagram · 1 diagram in section

HORN for Toyota RAIZE

This section contains 6 genuine Toyota parts for the HORN system of the Toyota RAIZE. Key components include: FRONT FENDER APRON & DASH PANEL, SIDE MEMBER, WIRING & CLAMP, HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
