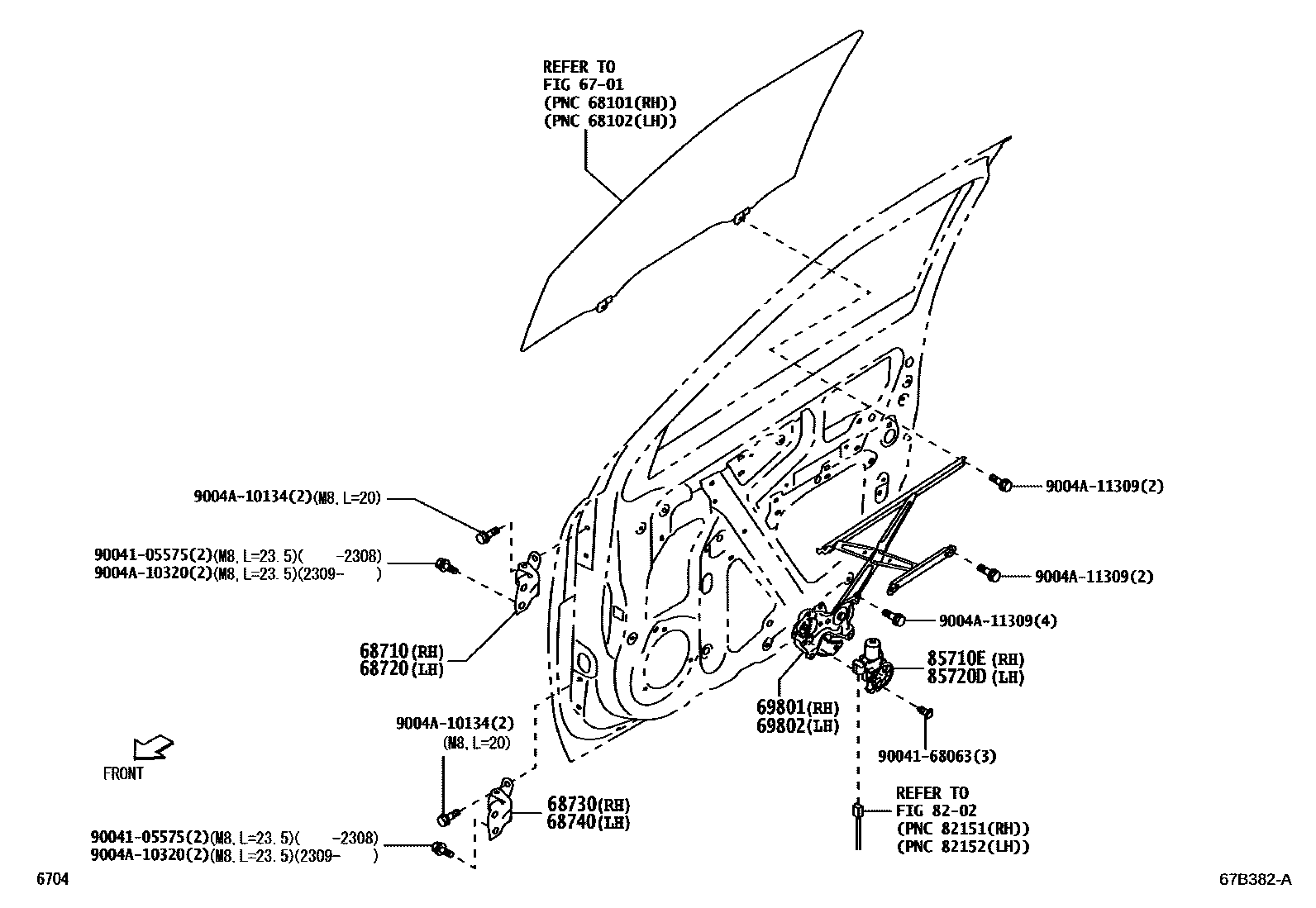

Toyota RAIZE — FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-BZ140iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-BZ110iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-BZ110iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-BZ140iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-BZ150iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-BZ150iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

8202

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-BZ210iA25#..RHD202104-202607

main85710-BZ270iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-BZ240iA25#..RHD202104-202607

main85720-BZ250iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

9004105575

main90041-05575

9004168063

main90041-68063

9004A10134

main9004A-10134

9004A10320

main9004A-10320

9004A11309

main9004A-11309

15 parts on this diagram · 1 diagram in section
