Toyota RAIZE — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
MEXICO; VIETNAM
17410KSPRING, EXHAUST PIPE
main17152-BZ100×4i1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202303-202608
17430PIPE ASSY, EXHAUST, TAIL
MEXICO; VIETNAM
17451GASKET, EXHAUST PIPE
main17451-B1010×2i1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202104-202608
17565ASUPPORT, EXHAUST PIPE, NO.4
main17567-B2020×3i1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202104-202608
17569CBOLT, EXHAUST PIPE SUPPORT
main90901-05026×4i1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202201-202608
5102SUSPENSION CROSSMEMBER & UNDER COVER
5305FLOOR SIDE MEMBER
5801FLOOR PAN & LOWER BACK PANEL

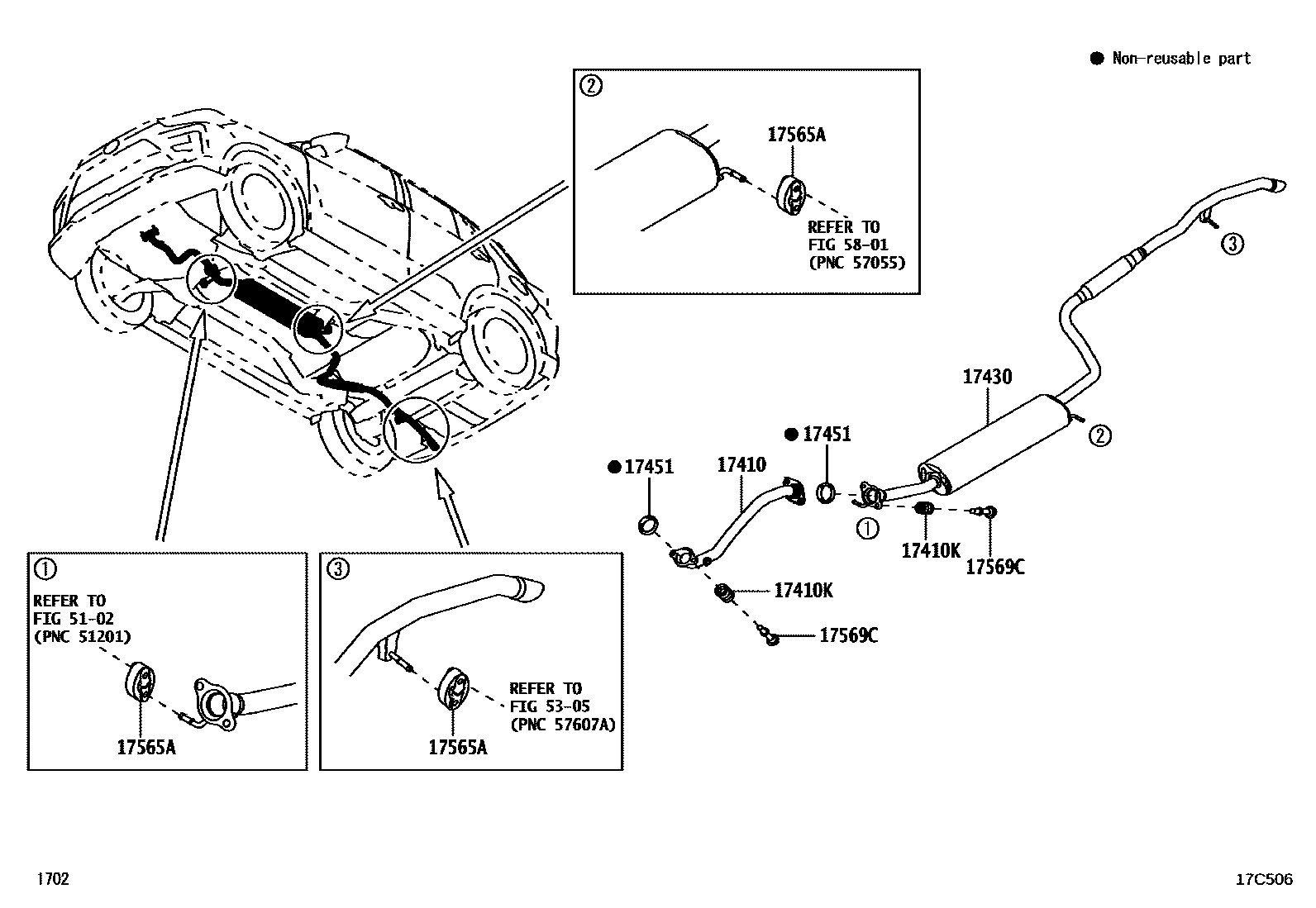

9 parts on this diagram · 1 diagram in section
EXHAUST PIPE for Toyota RAIZE
This section contains 9 genuine Toyota parts for the EXHAUST PIPE system of the Toyota RAIZE. Key components include: PIPE ASSY, EXHAUST, FRONT, SPRING, EXHAUST PIPE, PIPE ASSY, EXHAUST, TAIL, GASKET, EXHAUST PIPE, SUPPORT, EXHAUST PIPE, NO.4.
