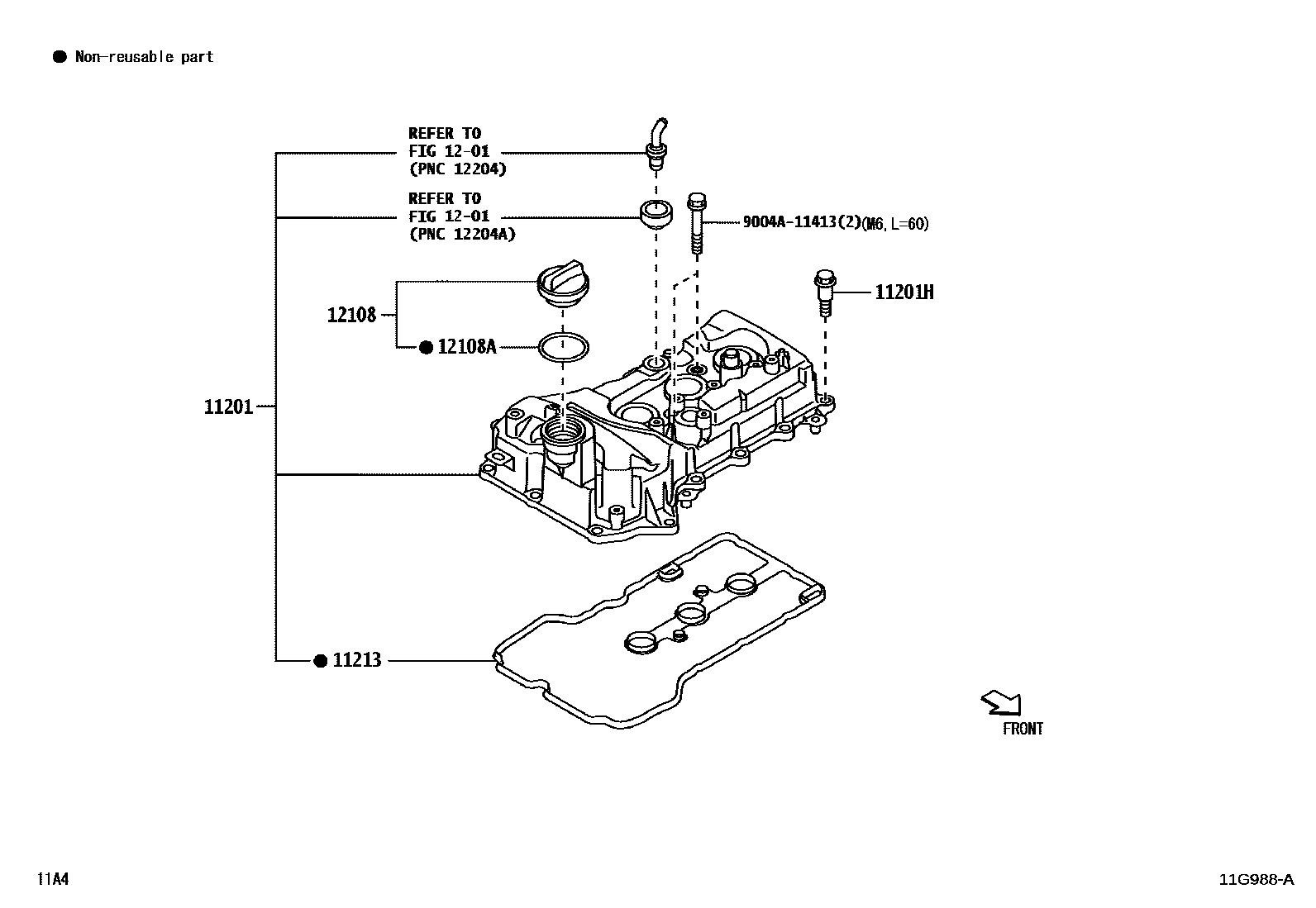

Toyota RAIZE — CYLINDER HEAD

11201COVER SUB-ASSY, CYLINDER HEAD

main11210-B1041i202104-202608

main11210-B1050i202104-202209

main11210-BZ090i202209-202608

11201HBOLT(FOR CYLINDER HEAD COVER)

main90041-09275×13i202104-202608

M6,L=23.5

main90109-06384×14i202104-202411

M6,L=12

main90109-T0055×14i202411-202608

11213GASKET, CYLINDER HEAD COVER

main11213-B1031i202104-202608

main11213-B1050i202104-202209

main11213-BZ150i202209-202608

1201VENTILATION HOSE

→ Go to FIG 12-01

12108CAP SUB-ASSY, OIL FILLER

main12180-38010i202104-202209

main12180-BZ060i202209-202608

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i202104-202608

main90430-37140i202209-202608

9004A11413

main9004A-11413
