Toyota RAIZE — CONSOLE BOX & BRACKET

0001 1FRONT CONSOLE 0002 1FRONT CONSOLE 0003 1REAR CONSOLE

3312

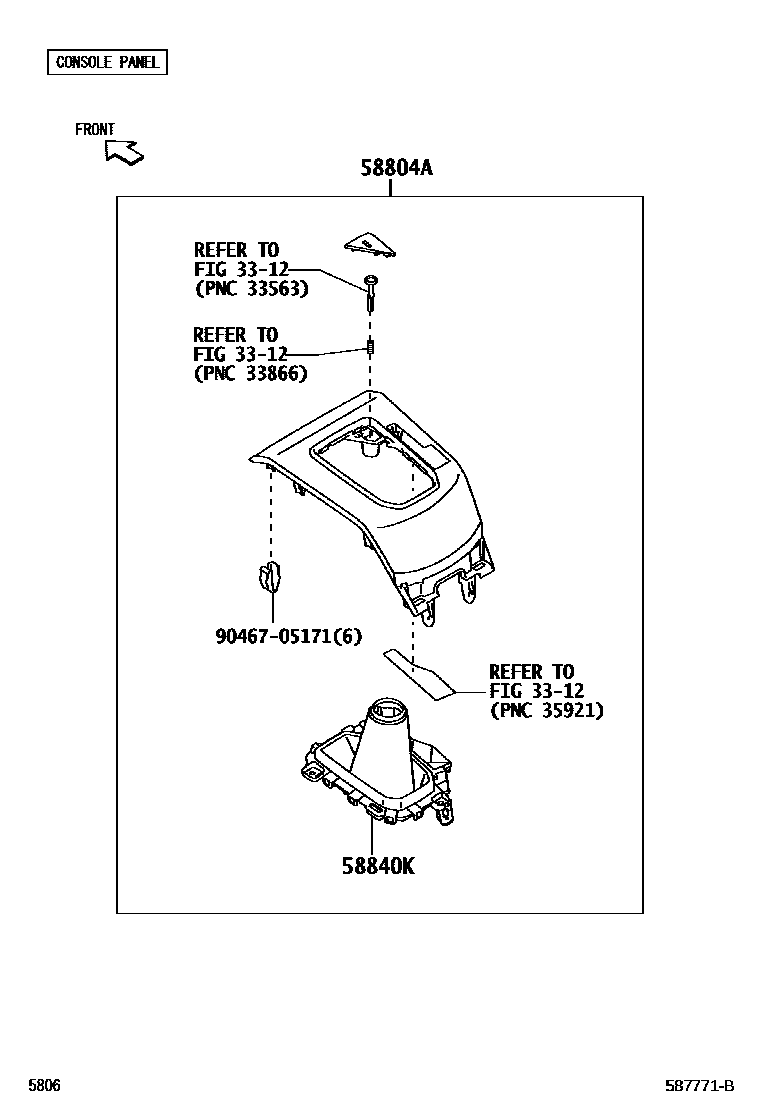

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-BZ050-C2iA251..RHD..CVT202104-202607

GRAY,TRIM2#

main58804-BZ060-C0iA25#..(L,X)..GCC202110-202608

BLACK,TRIM2#

main58804-BZ070-C2iA251..LHD..CVT..X..(CHL,GEN,PHL)202108-202608

GRAY,TRIM2#

main58804-BZ080-C0iA251..5F..L202108-202608

BLACK,TRIM2#

main58804-BZ090-C3iA251..5F..X202104-202608

GRAY,TRIM2#

main58804-BZ100-C3iA25#..LHD..CVT..V202108-202608

GRAY,TRIM2#

main58804-BZ130-C2iA250..5F202104-202607

GRAY,TRIM2#

main58804-BZ140-C2iA250..RHD..CVT202104-202607

GRAY,TRIM2#

58840KCOVER ASSY, SHIFTING HOLE

main58840-BZ270-C0iA251..5F..L202108-202608

BLACK,TRIM2#

main58840-BZ280-C2iA25#..5F..(V,X)202104-202608

GRAY,TRIM2#

main58840-BZ300-C2iA25#..RHD..CVT202104-202607

GRAY,TRIM2#

main58840-BZ310-C0iA25#..(L,X)..GCC202110-202608

BLACK,TRIM2#

main58840-BZ320-C2iA250..LHD..CVT..V;A251..LHD..CVT..(V,X)..(CHL,GEN,PHL)202108-202608

GRAY,TRIM2#

9046705171

main90467-05171

4 parts on this diagram · 3 diagrams in section
