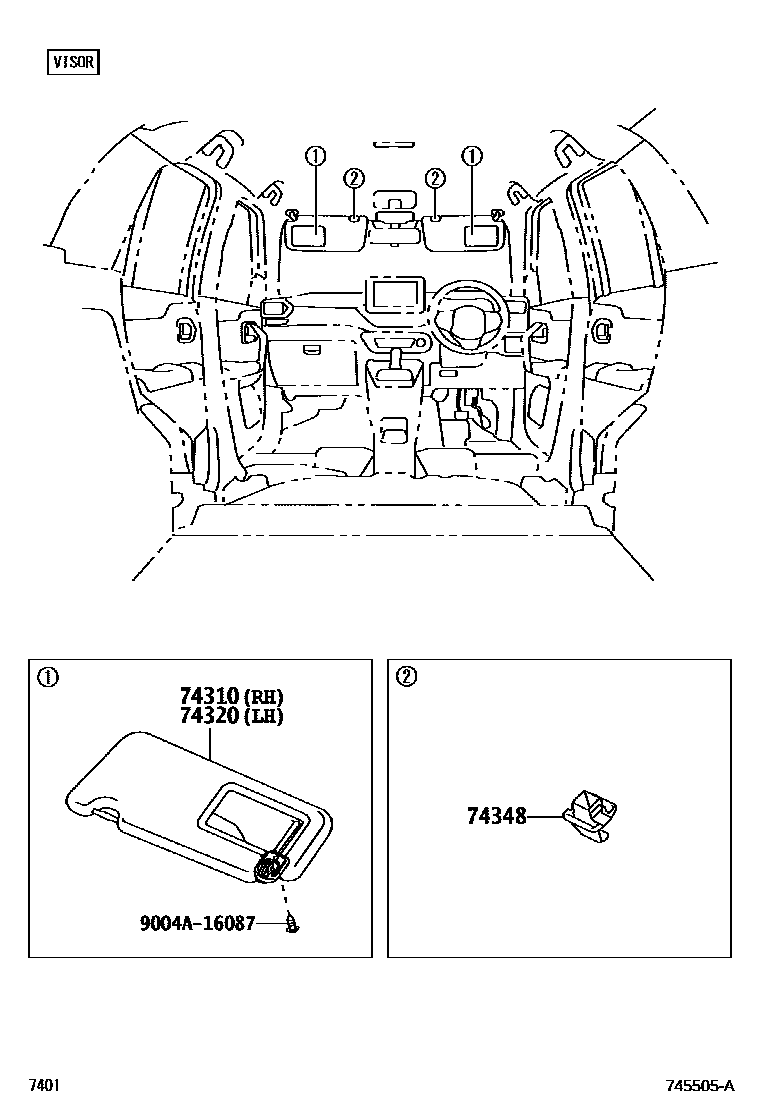

Toyota RAIZE — ARMREST & VISOR

0001 1VISOR 0002 1ARMREST 0003 1ARMREST 0004 1ARMREST 0005 1ARMREST 0006 1ASSIST GRIP 0007 1ASSIST GRIP 0008 1ASSIST GRIP

74310VISOR ASSY, RH

main74310-BZA60-B0iA25#..RHD202104-202607

LT.GRAY,TRIM2#

main74310-BZC20-B0iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

LT.GRAY,TRIM2#

74320VISOR ASSY, LH

main74320-BZ840-B0iA25#..RHD202104-202607

LT.GRAY,TRIM2#

main74320-BZ860-B0iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

LT.GRAY,TRIM2#

main74320-BZ850-B0iA25#..RHD..GEN202108-202607

RHD ASIA,LT.GRAY,TRIM2#

74348HOLDER, VISOR

main74348-BZ080-B0×2iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

LT.GRAY,TRIM2#

9004A16087

main9004A-16087

4 parts on this diagram · 8 diagrams in section
