Toyota RAIZE — AIR BAG

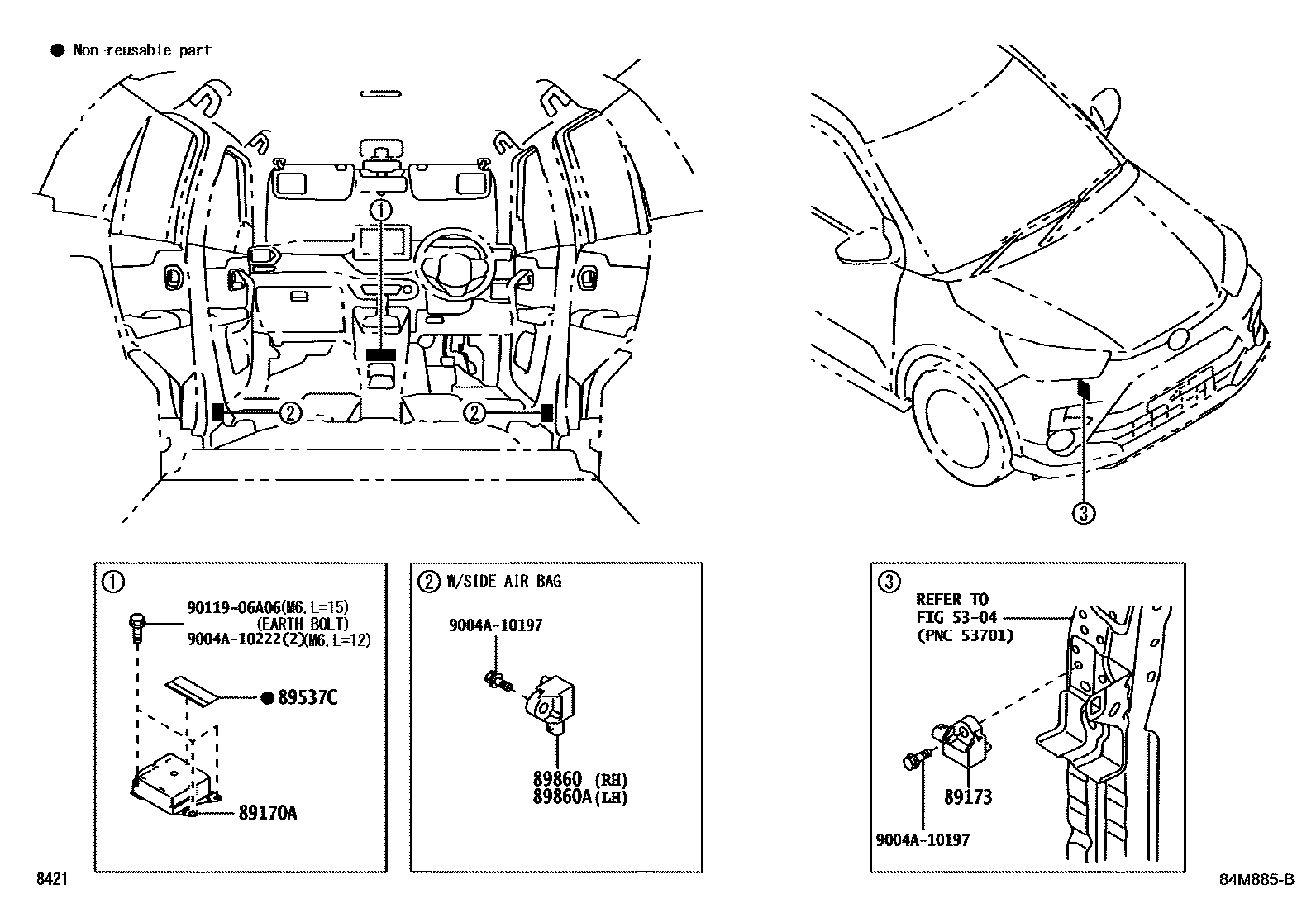

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

89170ACOMPUTER ASSY, AIRBAG

main89170-BZ660supersedes 89170-BZ670i202104-202608

main89170-BZ680i202108-202608

89173SENSOR, AIRBAG, FRONT

main89173-B2240i202104-202608

89537CCOVER, COMPUTER

main19114-B2060i202104-202310

main19114-BZ020i202311-202608

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-B1120i202108-202608

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89860-B1120i202108-202608

9004A10197

main9004A-10197

9004A10222

main9004A-10222

9011906A06

main90119-06A06

9 parts on this diagram · 2 diagrams in section

AIR BAG for Toyota RAIZE

This section contains 9 genuine Toyota parts for the AIR BAG system of the Toyota RAIZE. Key components include: FRONT FENDER APRON & DASH PANEL, COMPUTER ASSY, AIRBAG, SENSOR, AIRBAG, FRONT, COVER, COMPUTER, SENSOR ASSY, SIDE AIRBAG, RH.
