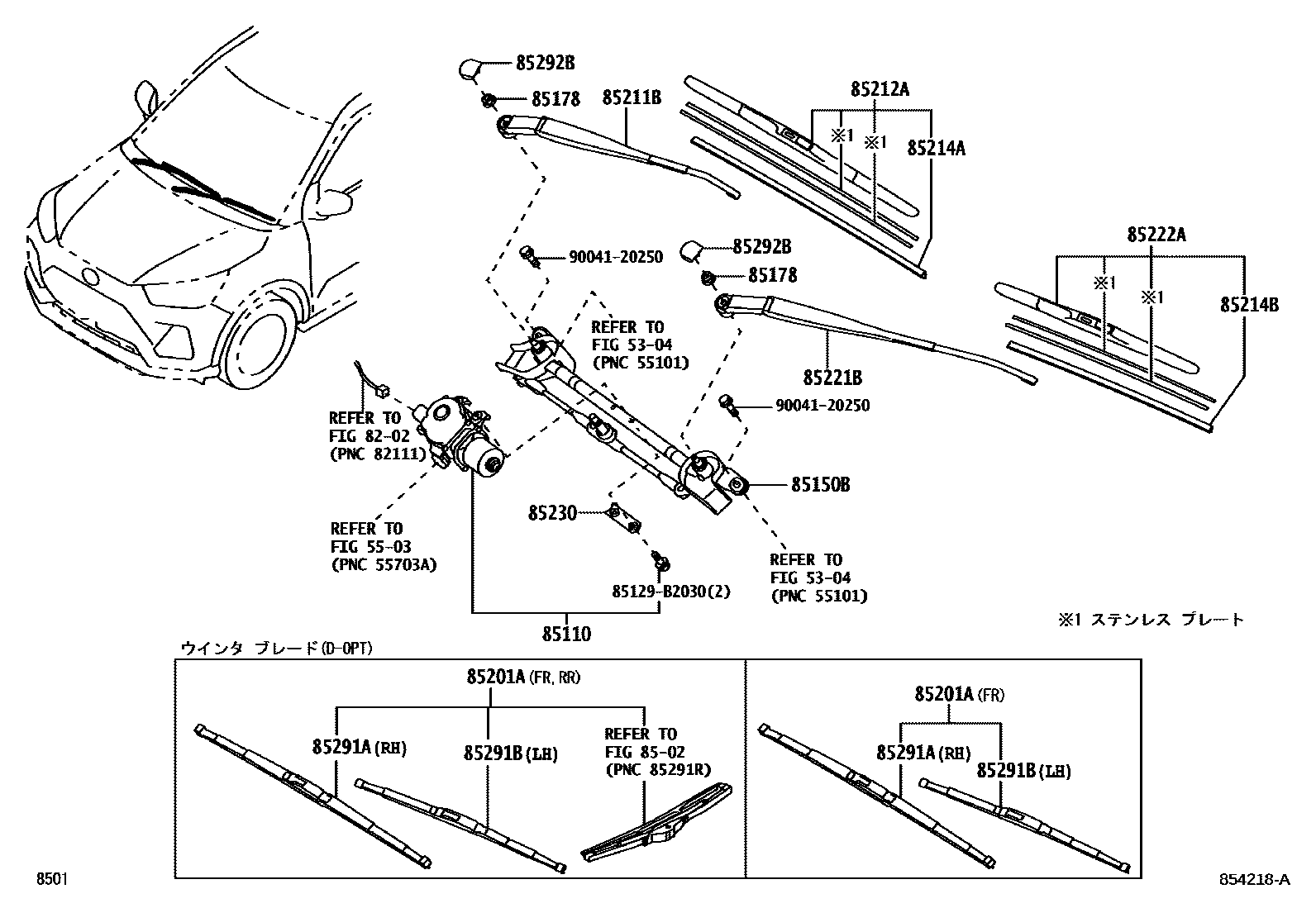

Toyota RAIZE — WINDSHIELD WIPER
5304FRONT FENDER APRON & DASH PANEL
5503COWL PANEL & WINDSHIELD GLASS
8202WIRING & CLAMP
8502REAR WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85150BLINK ASSY, WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85201ABLADE SET, WIPER, WINTER
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85230BRACKET ASSY, WINDSHIELD WIPER
85291ABLADE, FRONT WIPER, WINTER, RH
85291BBLADE, FRONT WIPER, WINTER, LH
85292BCAP, FRONT WIPER ARM HEAD
85129B2030COIL, WINDSHIELD WIPER MOTOR FIELD
main85129-B2030
9004120250
main90041-20250
20 parts on this diagram · 1 diagram in section
WINDSHIELD WIPER for Toyota RAIZE
This section contains 20 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota RAIZE. Key components include: FRONT FENDER APRON & DASH PANEL, COWL PANEL & WINDSHIELD GLASS, WIRING & CLAMP, REAR WIPER, MOTOR ASSY, WINDSHIELD WIPER.
