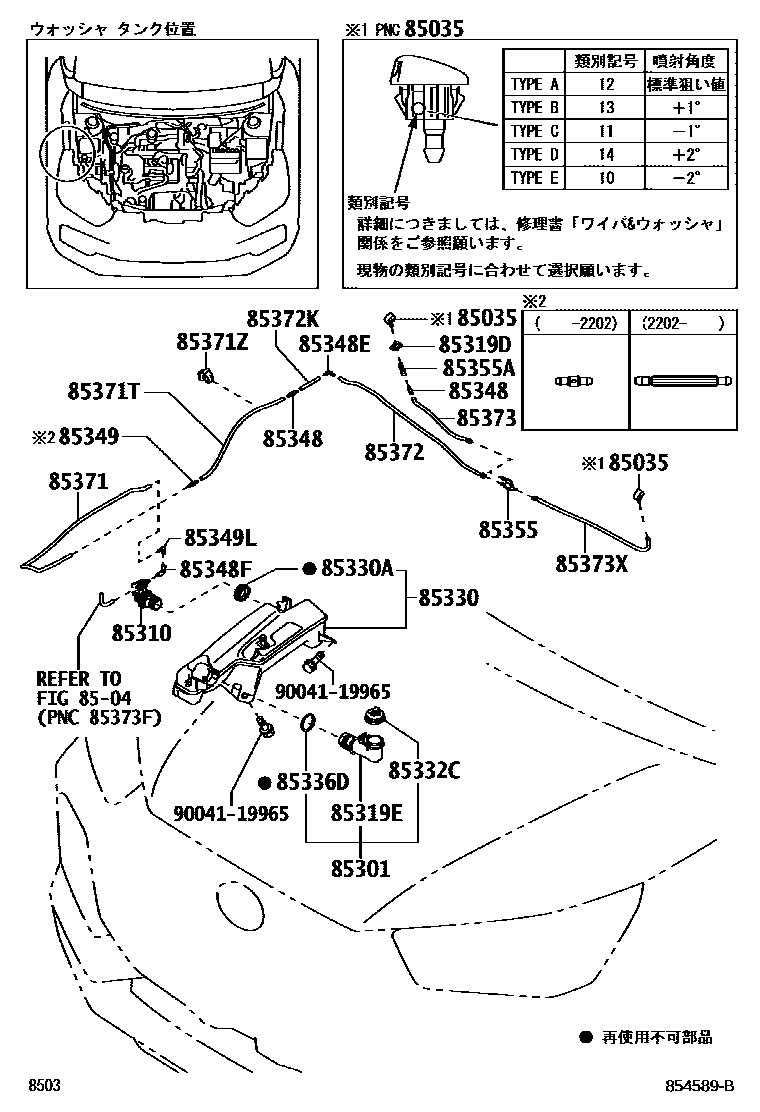

Toyota RAIZE — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
8504
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319DPACKING, FRONT WASHER
85319EINLET WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CCAP, FRONT WASHER TANK
85336DPACKING, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85349LJOINT, WINDSHIELD WASHER ELBOW, NO.1
85355VALVE, WINDSHIELD WASHER HOSE
85355AJOINT, WINDSHIELD WASHER ELBOW
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)
85371ZCLAMP, WASHER HOSE
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85373XHOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE), NO.2
9004119965
main90041-19965
25 parts on this diagram · 1 diagram in section
