Toyota RAIZE — WATER PUMP

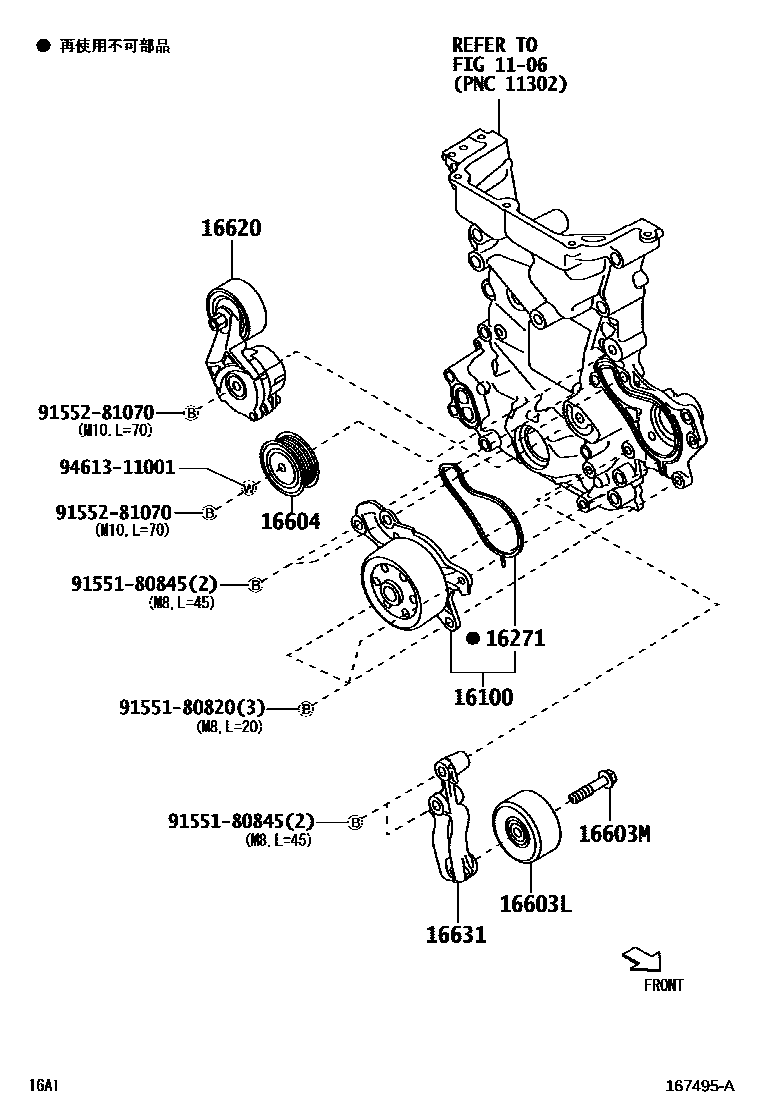

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16100PUMP ASSY, ENGINE WATER

main16100-80015i201910-202004

main16100-80017i202004-202111

main16100-B9700i202111-202912

main161A0-B9700i202111-202912

16271GASKET, WATER PUMP

main16271-40030i201910-202111

main16271-B1020i202111-202912

main16271-B1030i202111-202912

16603LPULLEY SUB-ASSY, IDLER, NO.1

main16603-B1010i201910-202111

main16603-B1011i202206-202912

16603MBOLT(FOR IDLER PULLEY)

main91552-81050i201910-202111

main91672-81050i202111-202912

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-23011i201910-202111

16620TENSIONER ASSY, V-RIBBED BELT

main16620-B1030i201910-202111

main16620-B1040i202111-202912

16631BRACKET, IDLER PULLEY

main16631-B1010i201910-202111

9155180820

main91551-80820

9155180845

main91551-80845

9155281070

main91552-81070

9461311001

main94613-11001

12 parts on this diagram · 3 diagrams in section

WATER PUMP for Toyota RAIZE

This section contains 16 genuine Toyota parts for the WATER PUMP system of the Toyota RAIZE. Key components include: TIMING GEAR COVER & REAR END PLATE, RADIATOR & WATER OUTLET, PUMP ASSY, ENGINE WATER, GASKET, WATER PUMP, PULLEY SUB-ASSY, IDLER, NO.1.
