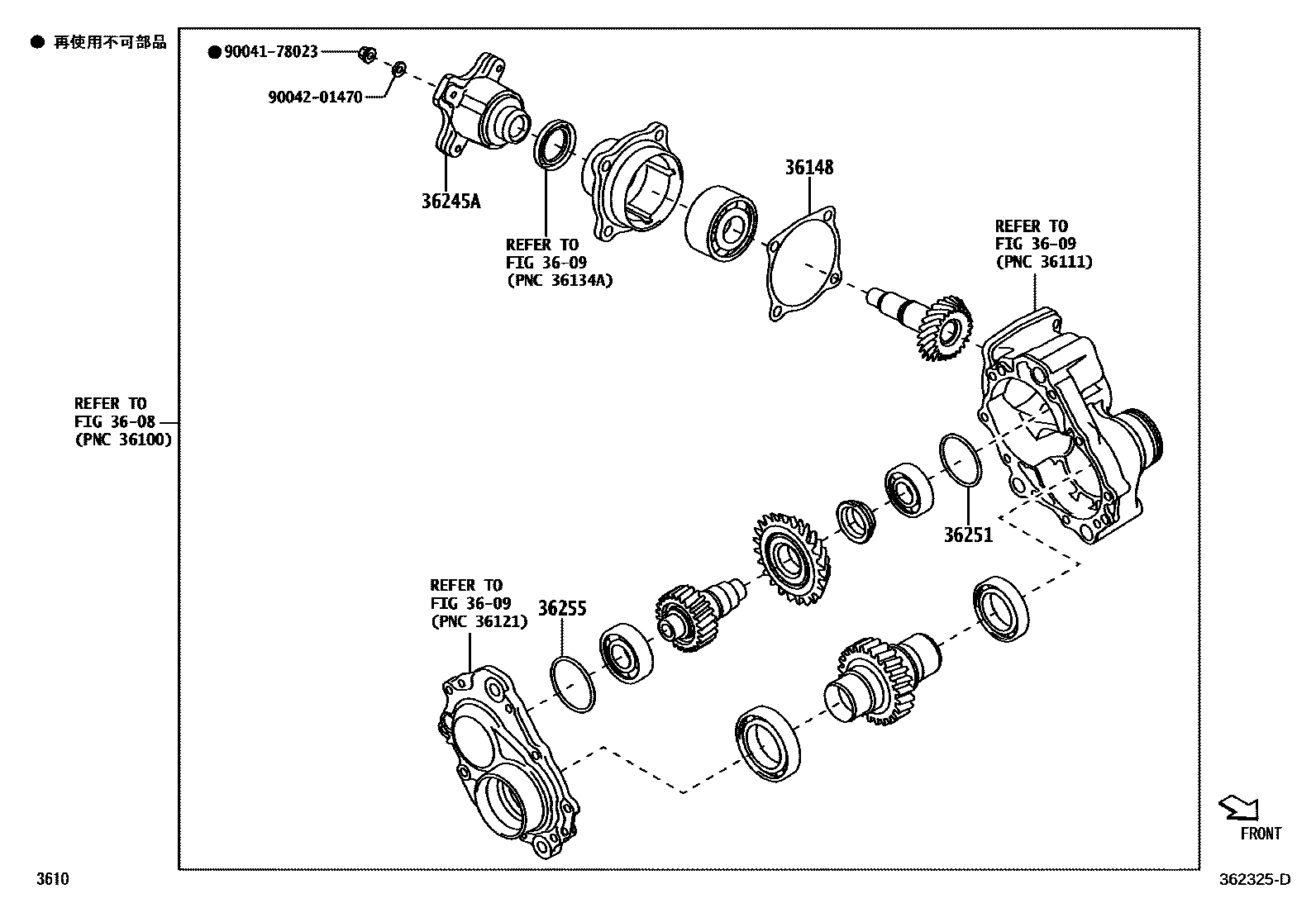

Toyota RAIZE — TRANSFER GEAR
3608TRANSFER ASSEMBLY & GASKET KIT
3609TRANSFER CASE & EXTENSION HOUSING
36148SHIM, PINION BEARING CAGE
36245AFLANGE, TRANSFER OUTPUT SHAFT
36251SPACER, TRANSFER INPUT SHAFT
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
9004178023
main90041-78023
9004201470
main90042-01470
8 parts on this diagram · 2 diagrams in section
TRANSFER GEAR for Toyota RAIZE
This section contains 8 genuine Toyota parts for the TRANSFER GEAR system of the Toyota RAIZE. Key components include: TRANSFER ASSEMBLY & GASKET KIT, TRANSFER CASE & EXTENSION HOUSING, SHIM, PINION BEARING CAGE, FLANGE, TRANSFER OUTPUT SHAFT, SPACER, TRANSFER INPUT SHAFT.
