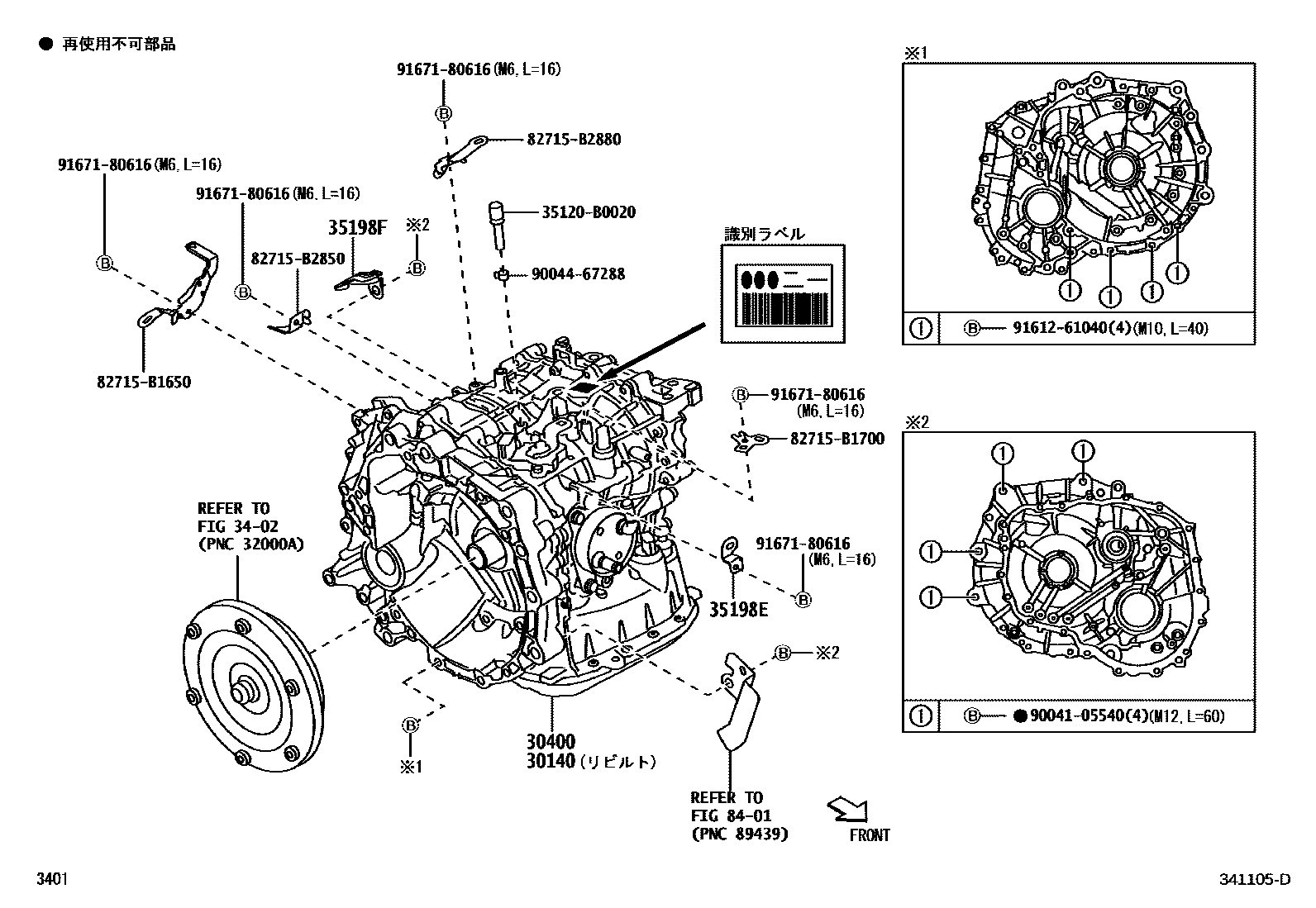

Toyota RAIZE — TRANSAXLE ASSY(CVT)

0001 1��������ASSY 0002 1��������ASSY 0003 1������� 0004 1������� 0005 1���������� 0006 1����������ASSY 0007 1���(��������) 0008 1���(��������)

30140TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER)

main30140-B0A40iA200201910-202111

main30140-B0A50iA210201910-202111

main30140-B0C70iA201202111-202912

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-B2A40iA200201910-202111

main30400-B2A50iA210201910-202111

main30400-B2C70iA201202111-202912

3402

35198EBRACKET, WIRE HARNESS CLAMP, NO.1

main82715-B2830iA200,210201910-202111

35198FBRACKET, WIRE HARNESS CLAMP

main82715-B2510iA200,210201910-202111

8401

35120B0020BREATHER ASSY, TRANSMISSION

main35120-B0020

82715B1650BRACKET,WIRING HARNESS CLAMP

main82715-B1650

82715B1700BRACKET,WIRING HARNESS CLAMP

main82715-B1700

82715B2850BRACKET,WIRING HARNESS CLAMP

main82715-B2850

82715B2880BRACKET,WIRING HARNESS CLAMP

main82715-B2880

9004105540

main90041-05540

9004467288

main90044-67288

9161261040

main91612-61040

9167180616

main91671-80616

15 parts on this diagram · 8 diagrams in section
