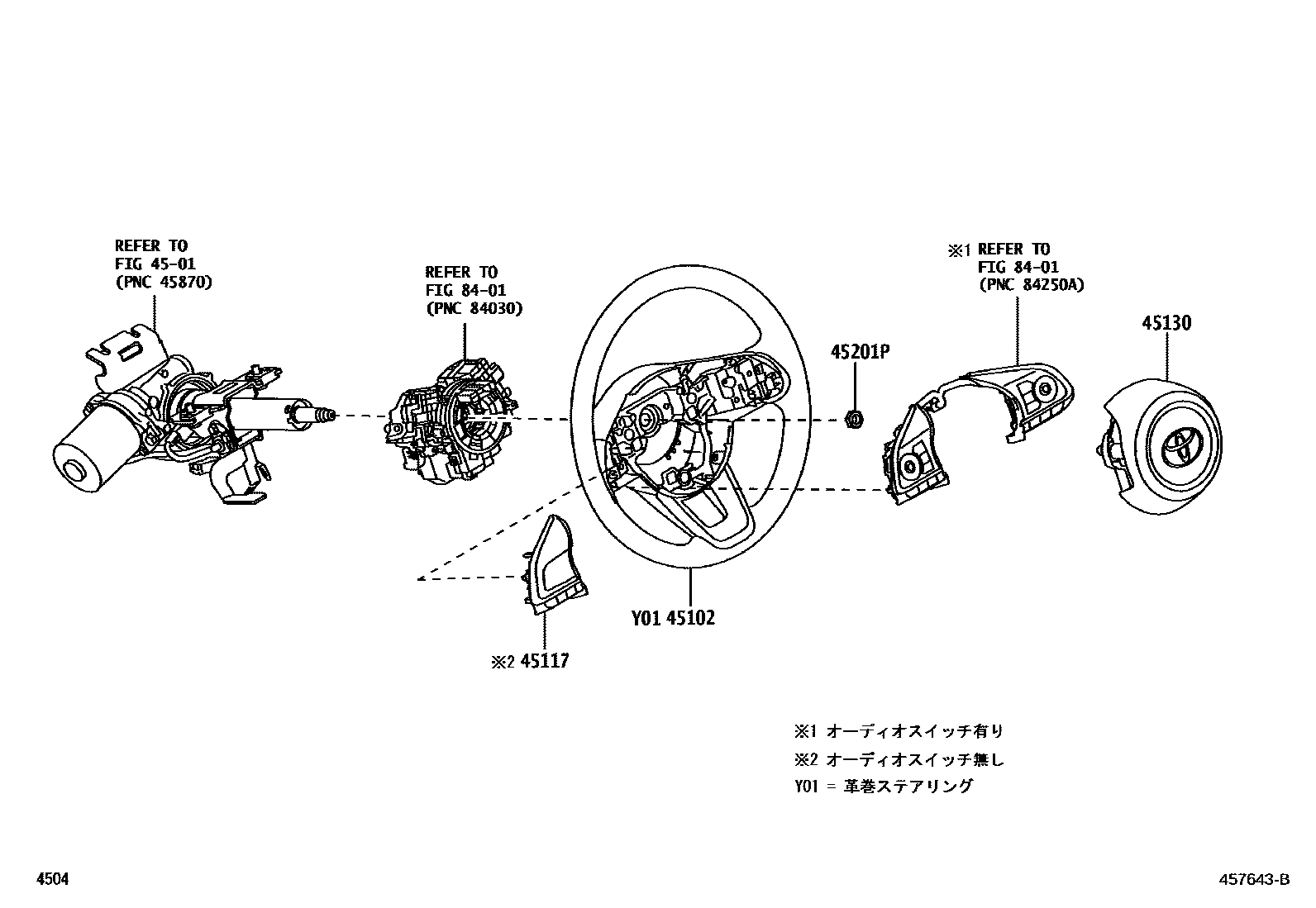

Toyota RAIZE — STEERING WHEEL

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

45102WHEEL SUB-ASSY, STEERING

main45102-B1360-C0i201910-202103

BLACK,TRIM2#

main45102-B1370-C1i201910-202103

-,TRIM2#

main45102-B1380-C1i201910-202103

-,TRIM2#

main45102-B1390-C0i202111-202912

BLACK,TRIM2#

main45102-B1400-C0i202104-202111

SILVER,TRIM2#

main45102-B1410-C0i202111-202912

SILVER,TRIM2#

45117ORNAMENT, STEERING WHEEL, NO.2

main45117-B1020-C1i201910-202111

BLACK,TRIM2#

main00000-00000i201910-202111

45130BUTTON ASSY, HORN

main45130-B1270-C1i201910-202111

BLACK,TRIM2#

main45130-B1310-C0i202111-202912

BLACK,TRIM2#

45201PNUT, STEERING WHEEL SET

main90041-70014i201910-202111

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6 parts on this diagram · 2 diagrams in section

STEERING WHEEL for Toyota RAIZE

This section contains 6 genuine Toyota parts for the STEERING WHEEL system of the Toyota RAIZE. Key components include: STEERING COLUMN & SHAFT, WHEEL SUB-ASSY, STEERING, ORNAMENT, STEERING WHEEL, NO.2, BUTTON ASSY, HORN, NUT, STEERING WHEEL SET.
