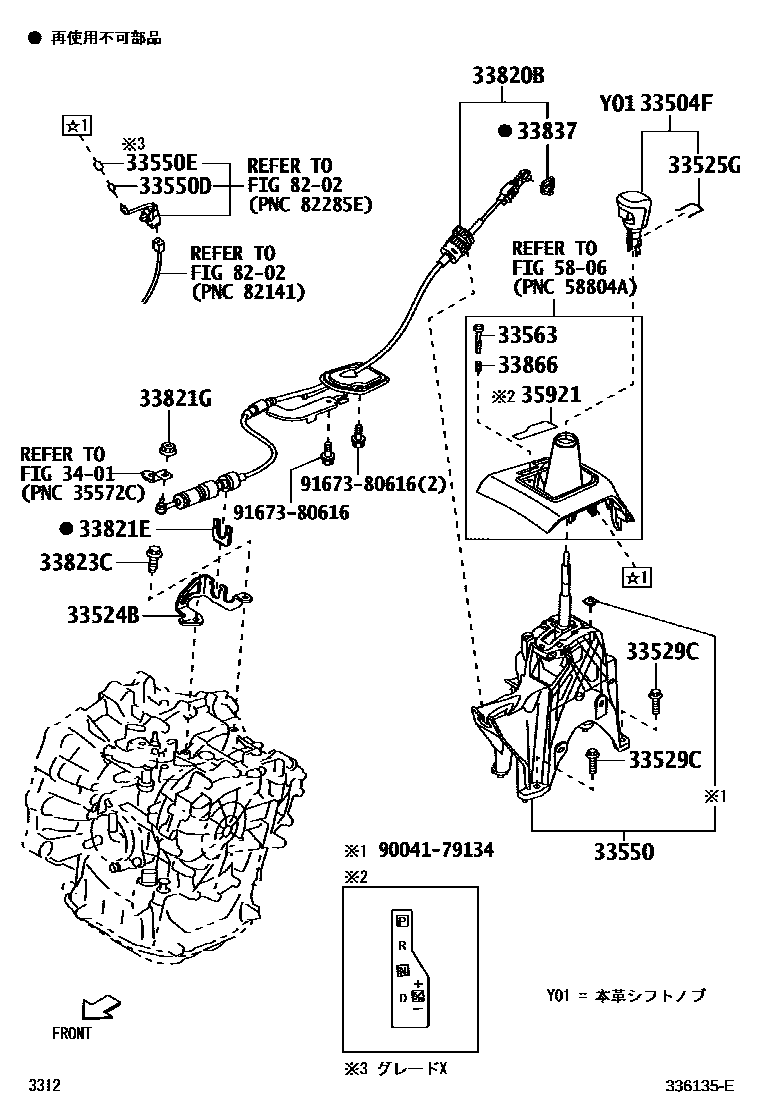

Toyota RAIZE — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-B1040-C0i201910-202103

BLACK,TRIM2#

main33504-B1041-C0i202104-202111

BLACK,TRIM2#

main33504-B1042-C0i202304-202309

BLACK,TRIM2#

main33504-B1043-C0i202310-202912

BLACK,TRIM2#

main33504-B1060-C0i201910-202012

SILVER,TRIM2#

main33504-B1061-C0i202111-202302

SILVER,TRIM2#

main33504-B1063-C0i202309-202912

SILVER,TRIM2#

main33504-B1070-C0i202012-202104

SILVER,TRIM2#

33524BBRACKET, CONTROL CABLE

main33524-B1050i202111-202912

main33524-B1060i202111-202912

33525GRING, SHIFT LEVER

main33525-B1010i201910-202111

33529CBOLT, SHIFT LEVER

main90041-20099×4i201910-202111

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-B1210-C0i201910-202005

BLACK,TRIM2#

main33550-B1211-C0i202006-202111

BLACK,TRIM2#

main33550-B1212-C0i202204-202311

BLACK,TRIM2#

main33550-B1213-C0i202311-202407

BLACK,TRIM2#

main33550-B1214-C0i202408-202912

BLACK,TRIM2#

main33550-B1220-C0i202111-202401

BLACK,TRIM2#

main33550-B1221-C0i202401-202912

BLACK,TRIM2#

33550DBULB, POSITION INDICATOR LAMP

main35955-B2040i201910-202111

33550ECAP, POSITION INDICATOR LAMP

main35956-B2060i201910-202111

33563BUTTON, SHIFT LOCK RELEASE

main33563-B1020i202111-202912

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-B1170i201910-202111

main33820-B1190i202111-202912

33821ECLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main33567-B1010i201910-202111

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90179-06274i202111-202912

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90041-05491×2i201910-202111

33837CLIP, TRANSMISSION CONTROL CABLE ADJUST

main33837-B2010i201910-202111

33866SPRING, SHIFT LOCK RELEASE

main33866-B1030i201910-202111

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35921PLATE, CONTROL POSITION INDICATOR

main35921-B1030i201910-202111

main35921-B1040i202111-202912

main35921-B1050i202111-202912

main35921-B1060i202111-202912

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

8202WIRING & CLAMP

→ Go to FIG 82-02

9004179134

main90041-79134

9167380616

main91673-80616

20 parts on this diagram · 5 diagrams in section

SHIFT LEVER & RETAINER for Toyota RAIZE

This section contains 22 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota RAIZE. Key components include: KNOB SUB-ASSY, SHIFT LEVER, BRACKET, CONTROL CABLE, RING, SHIFT LEVER, BOLT, SHIFT LEVER, RING, O (FOR SHIFT LEVER).
