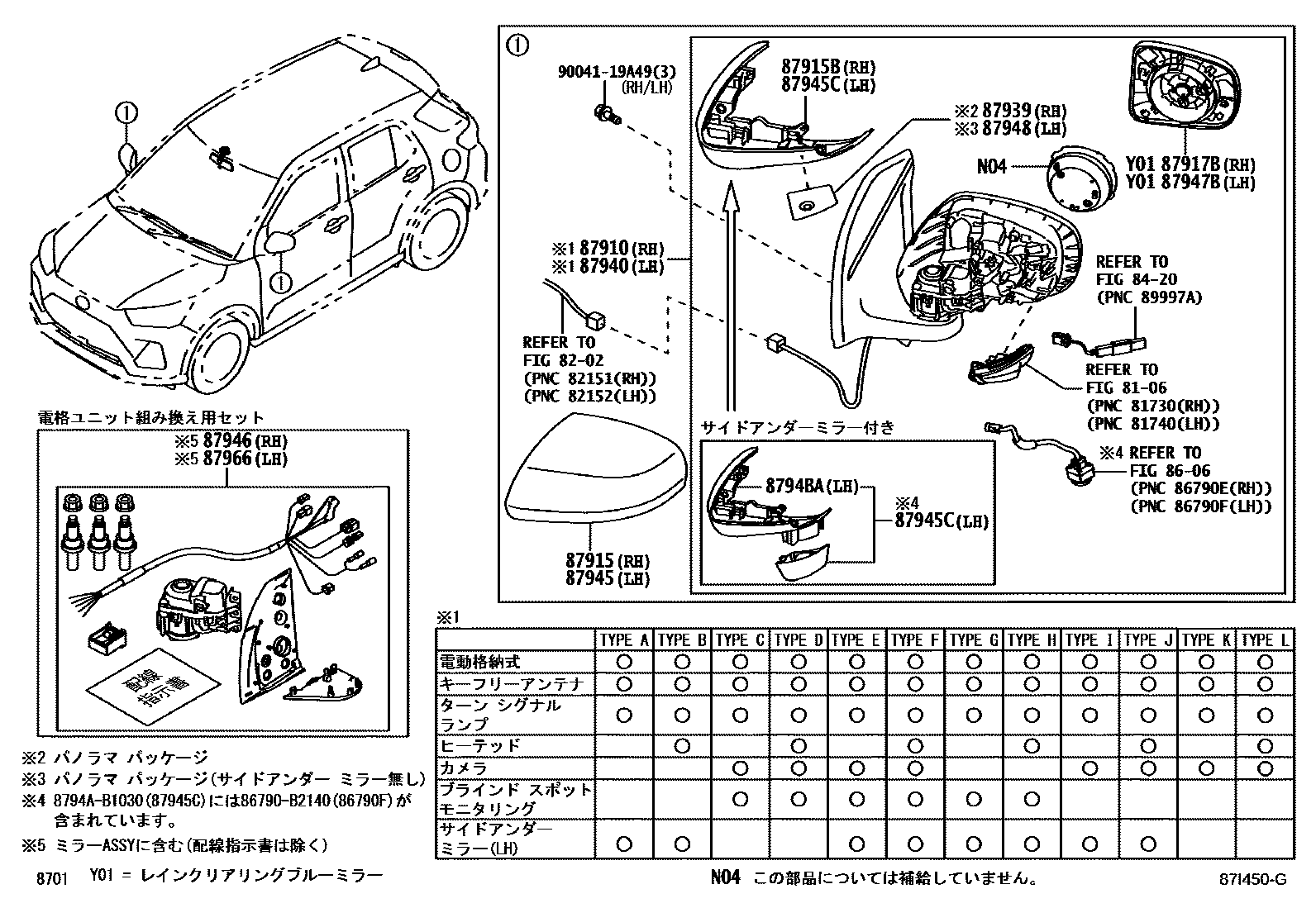

Toyota RAIZE — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8202WIRING & CLAMP
8420WIRELESS DOOR LOCK
8606CAMERA & REAR MONITOR DISPLAY
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
WHITE PEARL SE.,W25
SILVER ME.,S28
GRAY M.M.,S42
BLACK M.M.,X07 ,X95 ,XH3 ,XH6
BLACK M.M.,X07
BLACK M.M.,X07 ,XH3 ,XH6 ,XL1
RED ME.,R67
BROWNISH BEIGE M.M.,T32
GREENISHYELLOW M.M.,Y15
LASER BLUE CRYSTAL SHINE,B82
TURQUOISE M.M.,B86
87915BCOVER, OUTER MIRROR, LOWER RH
87917BMIRROR, OUTER REAR VIEW, RH
87939COVER, OUTER MIRROR HOLE, RH
main87939-B1010
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
WHITE PEARL SE.,W25
SILVER ME.,S28
GRAY M.M.,S42
BLACK M.M.,X07 ,XH3 ,XH6 ,XL1
BLACK M.M.,X07
BLACK M.M.,X07 ,X95 ,XH3 ,XH6
RED ME.,R67
BROWNISH BEIGE M.M.,T32
GREENISHYELLOW M.M.,Y15
LASER BLUE CRYSTAL SHINE,B82
TURQUOISE M.M.,B86
87945CCOVER, OUTER MIRROR, LOWER LH
87946RETRACTOR, OUTER MIRROR, RH
87947BMIRROR, OUTER REAR VIEW, LH
87948COVER, OUTER MIRROR HOLE, LH
main87948-B1010
8794BACOVER, OUTER MIRROR, LH NO.3
87966RETRACTOR, OUTER MIRROR, LH
9004119A49
main90041-19A49
18 parts on this diagram · 3 diagrams in section
MIRROR for Toyota RAIZE
This section contains 22 genuine Toyota parts for the MIRROR system of the Toyota RAIZE. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, WIRING & CLAMP, WIRELESS DOOR LOCK, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW.
