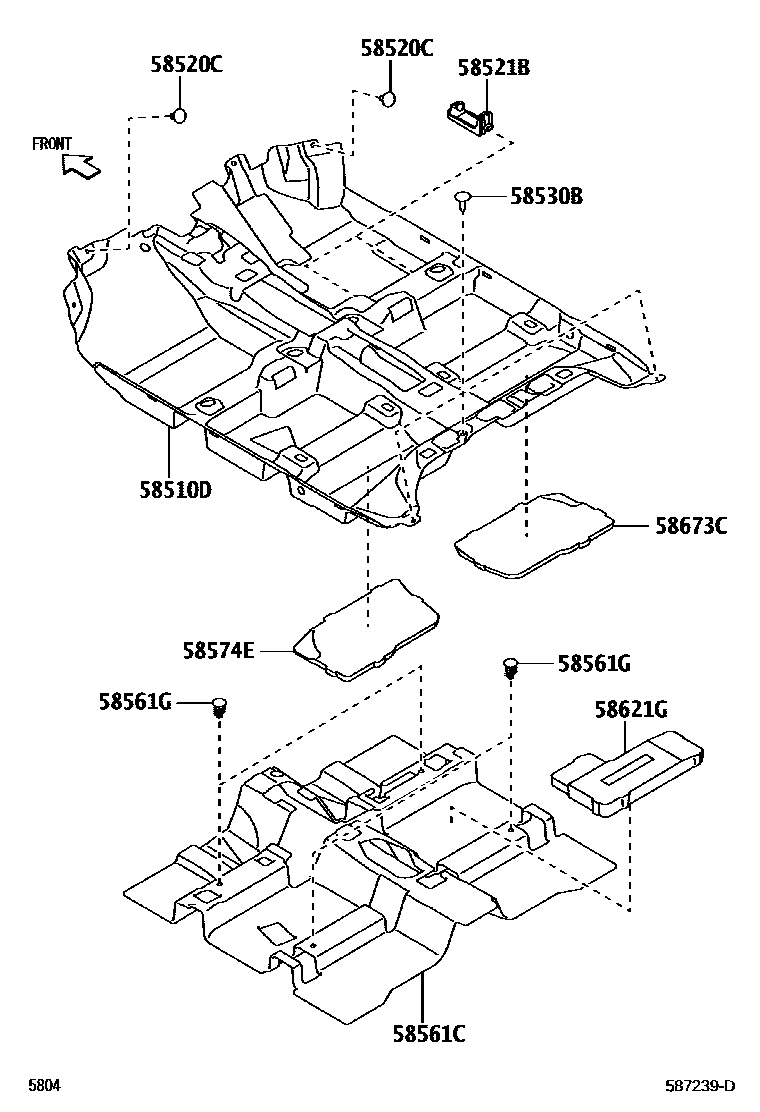

Toyota RAIZE — MAT & CARPET
58510DCARPET ASSY, FLOOR, FRONT
DK.GRAY,TRIM2#
DK.GRAY,TRIM2#
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK
58561CSILENCER, FRONT FLOOR, NO.1
58561GCLIP(FOR FRONT FLOOR SILENCER)
LT.GRAY
58574EPAD, REAR FLOOR SILENCER, NO.1
58621GPAD, FRONT FLOOR SILENCER, RH
58673CPAD, REAR FLOOR SILENCER, NO.1
9 parts on this diagram · 2 diagrams in section
MAT & CARPET for Toyota RAIZE
This section contains 9 genuine Toyota parts for the MAT & CARPET system of the Toyota RAIZE. Key components include: CARPET ASSY, FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), HOOK, FLOOR CARPET, SILENCER, FRONT FLOOR, NO.1.
