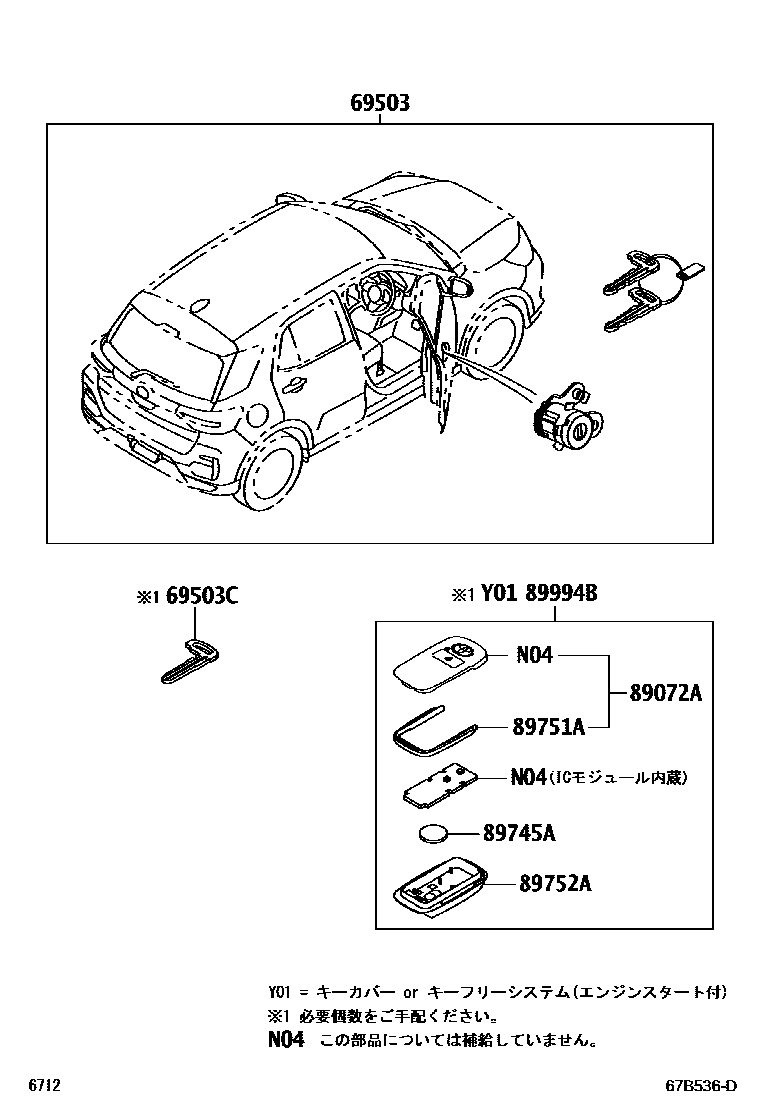

Toyota RAIZE — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-B2D40i201910-202111

69503CKEY, SUB

main69516-B2150i201910-202111

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-B1080i201910-202111

89745ABATTERY, TRANSMITTER

main89745-B2060i201910-202111

89751ACOVER, TRANSMITTER HOUSING

main89751-B2040i201910-202111

89752ACASE, TRANSMITTER HOUSING

main89752-B2080i201910-202111

89994BTRANSMITTER, ELECTRICAL KEY

main89994-B1230×2i201910-202111

7 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET for Toyota RAIZE

This section contains 7 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota RAIZE. Key components include: CYLINDER SET, LOCK, KEY, SUB, HOUSING SET, DOOR CONTROL TRANSMITTER, BATTERY, TRANSMITTER, COVER, TRANSMITTER HOUSING.
