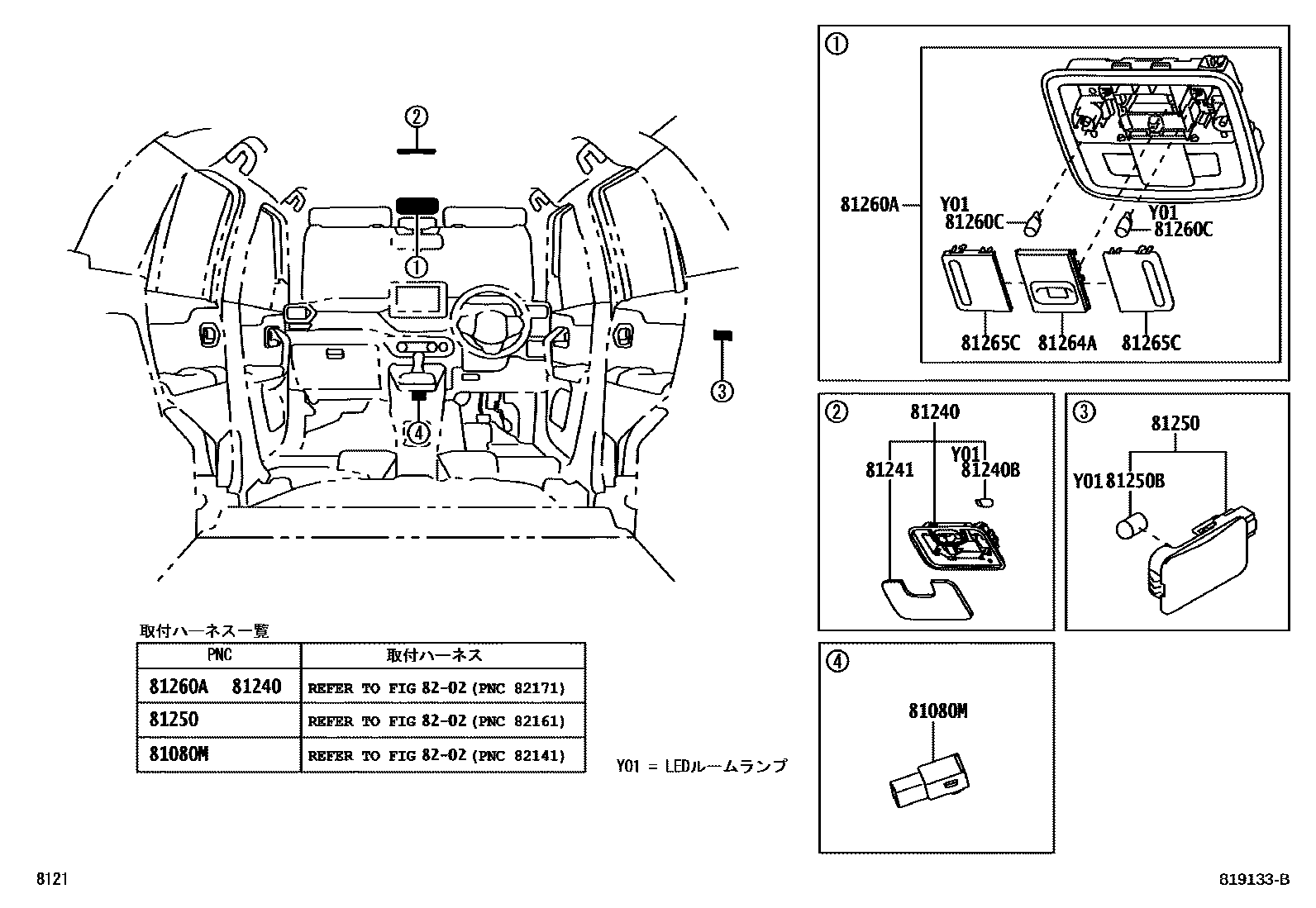

Toyota RAIZE — INTERIOR LAMP

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-B1050i201910-202111

main81080-B1051i202303-202912

81240LAMP ASSY, ROOM, NO.1

main81240-B2130-B0i201910-202111

LT.GRAY,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main90049-51188i201910-202111

81241LENS, ROOM LAMP, NO.1

main81241-B2100i201910-202111

81250LAMP ASSY, ROOM, NO.2

main81240-B1010i201910-202111

81250BBULB, ROOM LAMP, NO.2

main90981-11013i201910-202111

81260ALAMP ASSY, MAP

main81260-B1020-B0i201910-202111

LT.GRAY,TRIM2#

81260CBULB(FOR MAP LAMP)

main90981-11013×2i201910-202111

81264ACOVER, MAP LAMP

main81261-B1010-B0i201910-202111

LT.GRAY,TRIM2#

81265CLENS, MAP LAMP, NO.1

main81265-B1010×2i201910-202111

8202WIRING & CLAMP

→ Go to FIG 82-02

11 parts on this diagram · 2 diagrams in section

INTERIOR LAMP for Toyota RAIZE

This section contains 11 genuine Toyota parts for the INTERIOR LAMP system of the Toyota RAIZE. Key components include: LAMP ASSY, INTERIOR ILLUMINATION, NO.1, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2.
