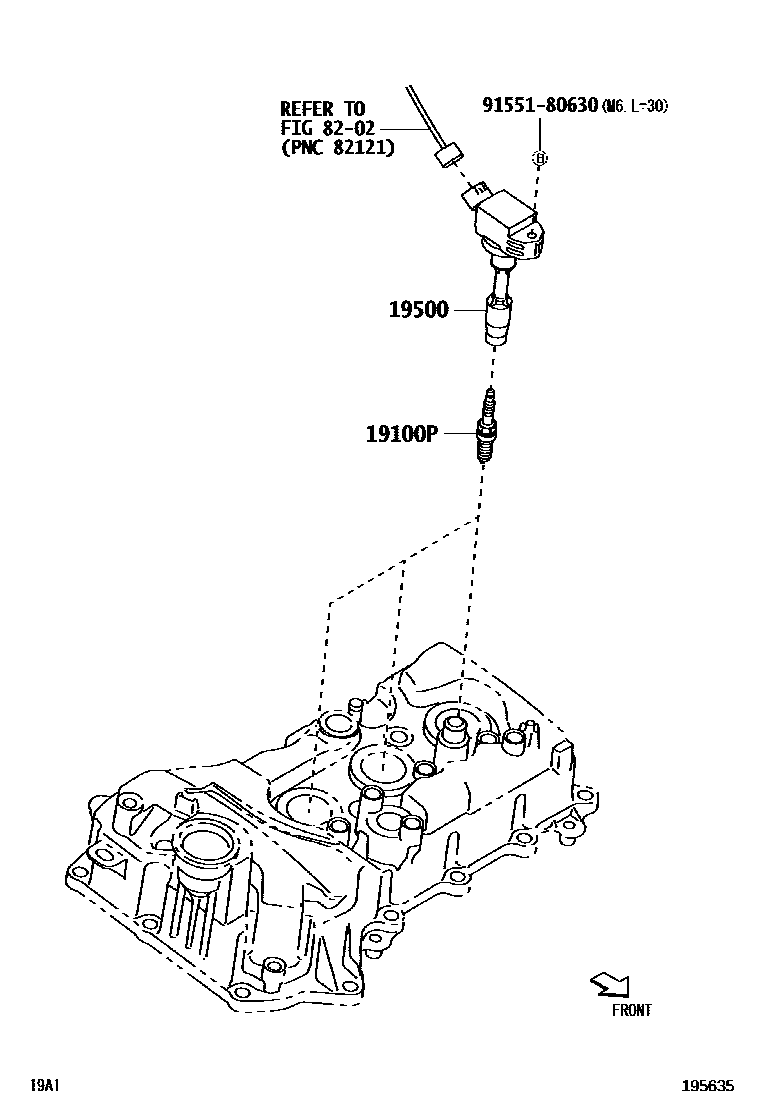

Toyota RAIZE — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90048-51220×3i202111-202912

main90048-51223×3i202111-202512

19500COIL ASSY, IGNITION

main19500-B1050×3i202111-202912

main19500-B9100×3i202207-202912

main90919-02281×3i201910-202111

8202WIRING & CLAMP

→ Go to FIG 82-02

9155180630

main91551-80630

4 parts on this diagram · 2 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota RAIZE

This section contains 5 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota RAIZE. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, WIRING & CLAMP.
