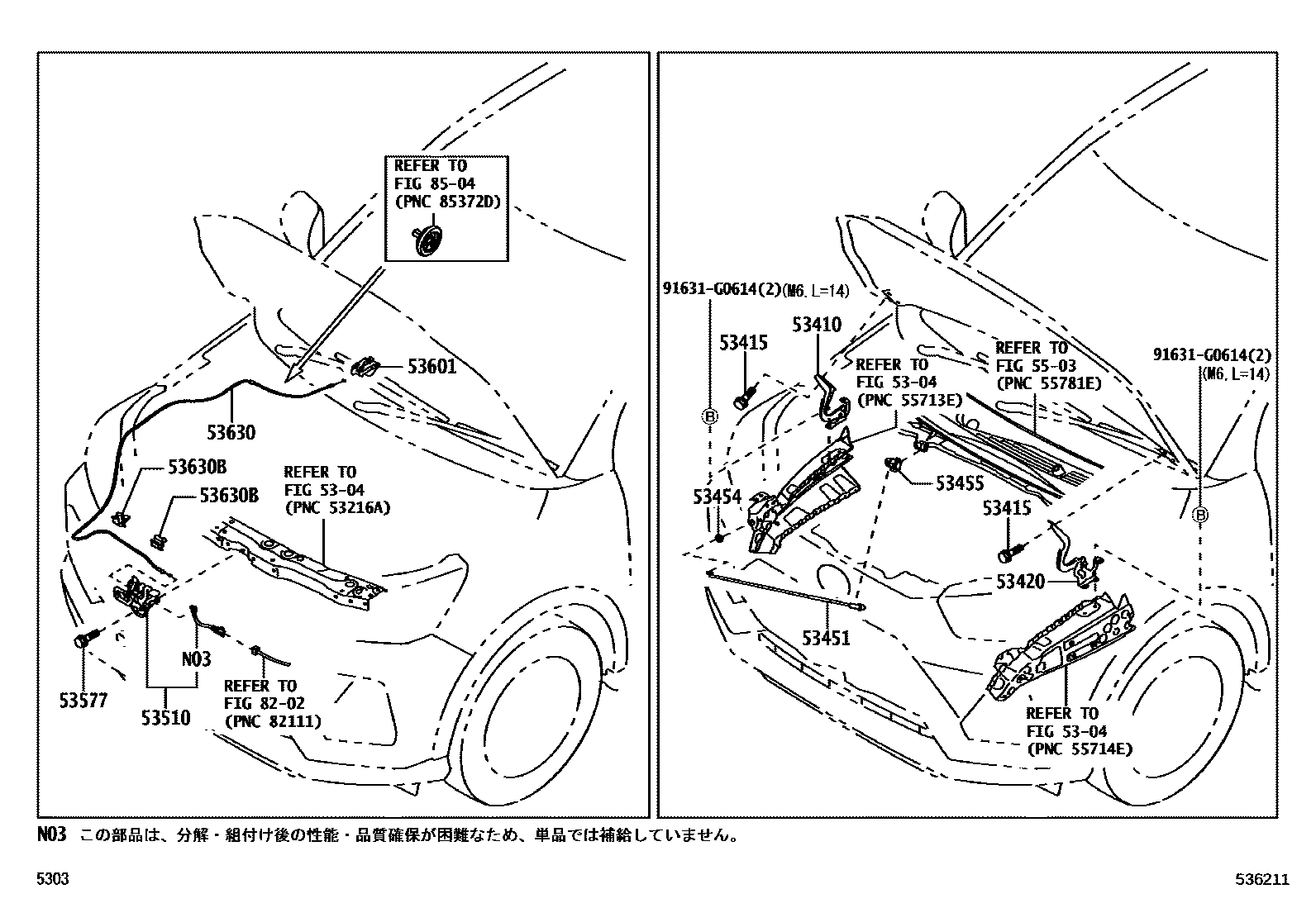

Toyota RAIZE — HOOD LOCK & HINGE

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53410HINGE ASSY, HOOD, RH

main53401-B1070i201910-202111

53415BOLT, HOOD HINGE

main91631-G0614×4i201910-202111

53420HINGE ASSY, HOOD, LH

main53402-B1070i201910-202111

53451ROD, HOOD SUPPORT

main53440-B1080i201910-202111

53454CLIP, HOOD SUPPORT ROD

main90044-80667i201910-202004

main90044-80679i202005-202111

53455CLAMP, HOOD SUPPORT ROD

main53455-B2131i201910-202111

53510LOCK ASSY, HOOD

main53510-B1130i201910-202111

53577BOLT, HOOD LOCK

main90041-05589×3i201910-202111

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0i201910-202111

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-B1140i201910-202111

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90044-64735×2i201910-202111

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

8202WIRING & CLAMP

→ Go to FIG 82-02

8504REAR WASHER

→ Go to FIG 85-04

91631G0614

main91631-G0614

16 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota RAIZE

This section contains 16 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota RAIZE. Key components include: FRONT FENDER APRON & DASH PANEL, HINGE ASSY, HOOD, RH, BOLT, HOOD HINGE, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT.
