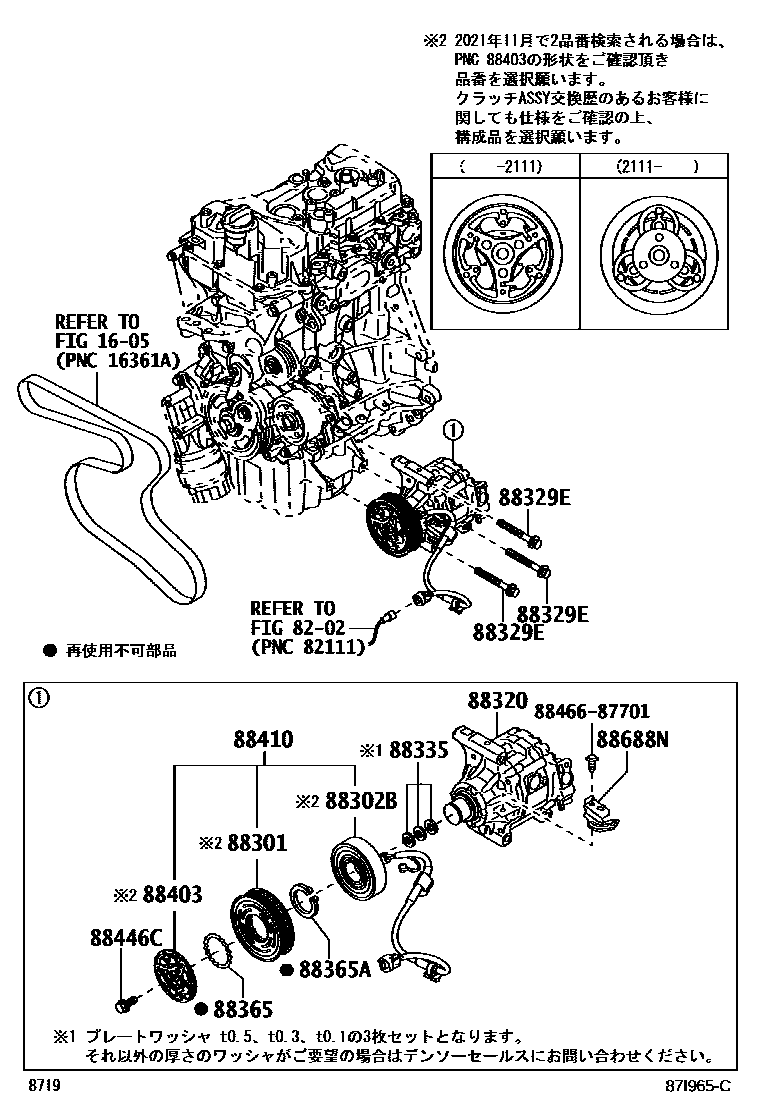

Toyota RAIZE — HEATING & AIR CONDITIONING - COMPRESSOR

1605V-BELT

→ Go to FIG 16-05

8202WIRING & CLAMP

→ Go to FIG 82-02

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-B1060i201910-202111

main88412-B1090i202111-202912

88302BSTATOR, MAGNET CLUTCH

main88411-B1050i201910-202111

main88411-B1060i202111-202912

88320COMPRESSOR ASSY, COOLER

main88320-B1090i202111-202211

main88320-B1110i202211-202912

88329EBOLT, COMPRESSOR, NO.1

main88329-B1020×3i201910-202111

88335GASKET KIT, OVERHAUL

main88335-14020i201910-202111

88365RING, SNAP

main90099-07125i202111-202912

88365ARING, SNAP (FOR COMPRESSOR)

main88365-87201i201910-202111

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-B1020i202111-202912

main88403-B2040i201910-202111

88410CLUTCH ASSY, MAGNET

main88410-B1100i201910-202111

main88410-B1110i202111-202912

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349i201910-202111

88688NBRACKET, COOLER

main88688-B1120i201910-202111

8846687701

main88466-87701

14 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota RAIZE

This section contains 15 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota RAIZE. Key components include: V-BELT, WIRING & CLAMP, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER.
