Toyota RAIZE — HEADLAMP

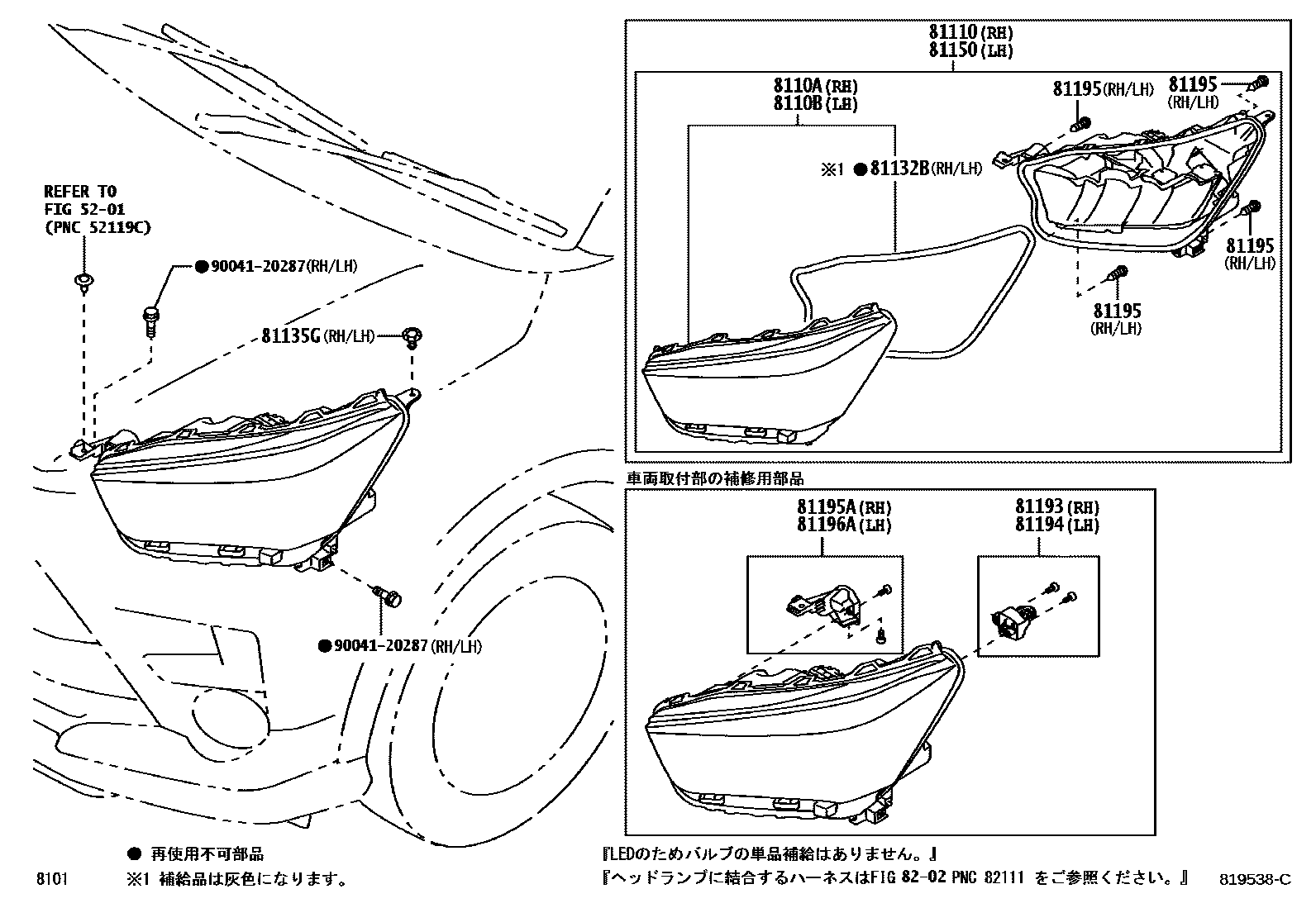

Parts diagram

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-B1010i201910-202111

main8110A-B1020i201910-202111

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-B1010i201910-202111

main8110B-B1020i202111-202912

81110HEADLAMP ASSY, RH

main81110-B1430i201910-202006

main81110-B1431i202007-202111

main81110-B1440i201910-202005

main81110-B1441i202006-202111

main81110-B1700i202111-202912

main81110-B1710i202111-202912

81132BGASKET, HEADLAMP LENS

main81132-B1010×2i201910-202111

81135GCLIP

main90044-68378×2i202111-202912

81150HEADLAMP ASSY, LH

main81150-B1430i201910-202006

main81150-B1431i202007-202111

main81150-B1440i201910-202005

main81150-B1441i202006-202111

main81150-B1700i202111-202912

main81150-B1710i202111-202912

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-B1300i201910-202111

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-B1300i201910-202111

81195SCREW, HEADLAMP

main81195-B1060×8i201910-202111

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-B1040i201910-202111

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-B1040i201910-202111

8202WIRING & CLAMP

→ Go to FIG 82-02

9004120287

main90041-20287

14 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota RAIZE

This section contains 14 genuine Toyota parts for the HEADLAMP system of the Toyota RAIZE. Key components include: FRONT BUMPER & BUMPER STAY, LENS SUB-ASSY, HEADLAMP, RH, LENS SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, GASKET, HEADLAMP LENS.
