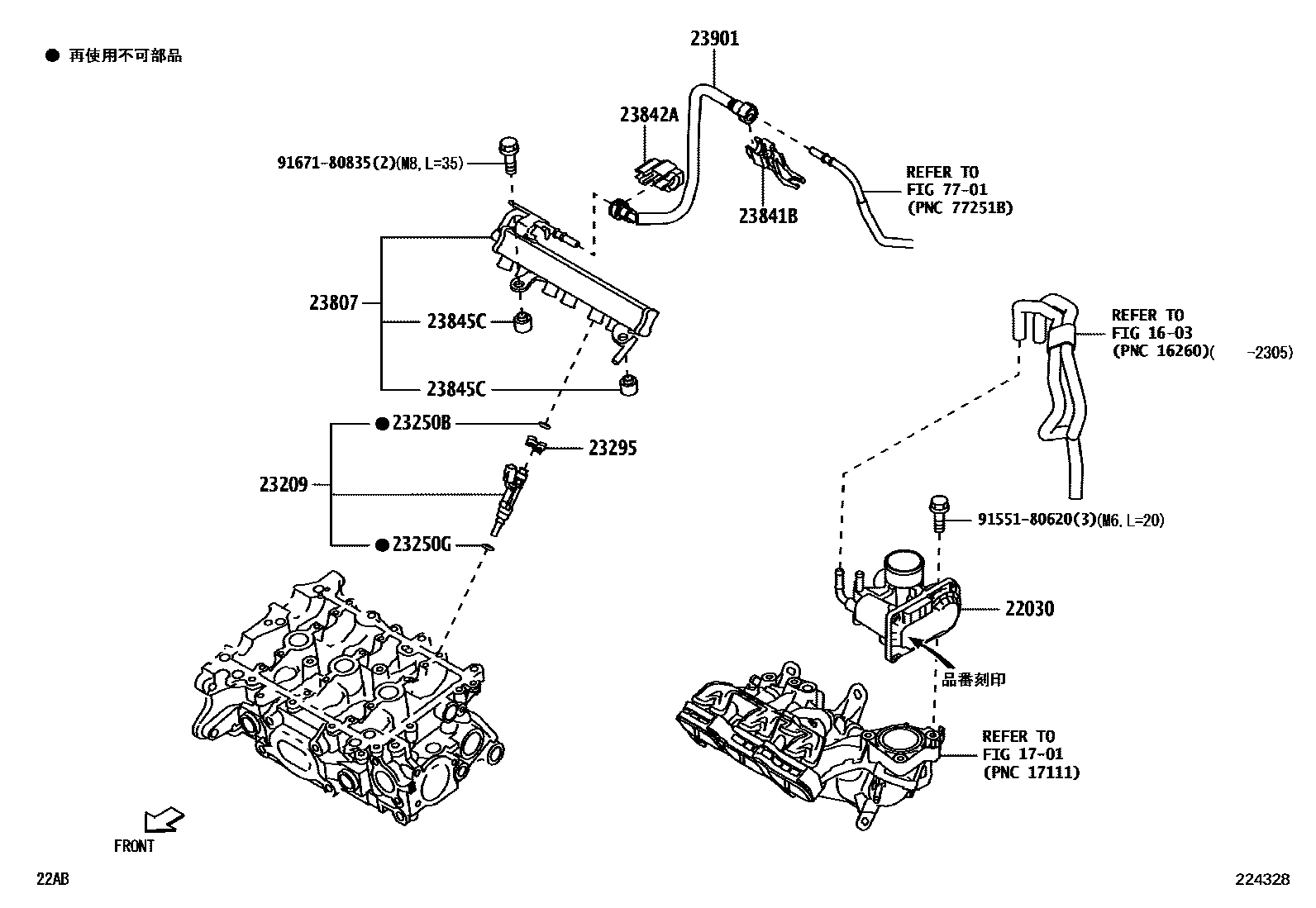

Toyota RAIZE — FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
1701MANIFOLD
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
23209INJECTOR SET, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250GRING, O, NO.2(FOR FUEL INJECTOR)
23295HOLDER, INJECTOR, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23845CINSULATOR, FUEL PIPE
23901TUBE SUB-ASSY, FUEL
7701FUEL TANK & TUBE
9155180620
main91551-80620
9167180835
main91671-80835
15 parts on this diagram · 3 diagrams in section
FUEL INJECTION SYSTEM for Toyota RAIZE
This section contains 20 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota RAIZE. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, AIR CLEANER, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, INJECTOR SET, FUEL.
