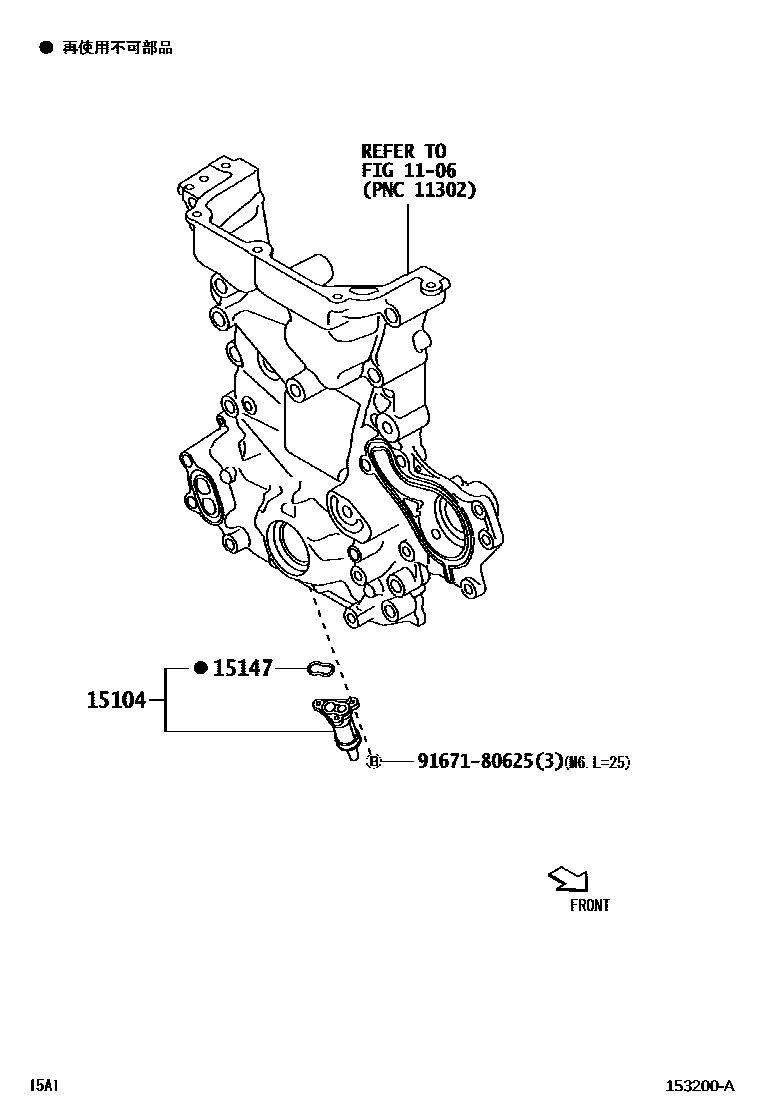

Toyota RAIZE — ENGINE OIL PUMP

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15104STRAINER SUB-ASSY, OIL

main15104-40060i201910-202111

main15104-B1020i202111-202912

15147GASKET, OIL STRAINER

main15147-40030i201910-202111

9167180625

main91671-80625

4 parts on this diagram · 2 diagrams in section

ENGINE OIL PUMP for Toyota RAIZE

This section contains 6 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota RAIZE. Key components include: TIMING GEAR COVER & REAR END PLATE, STRAINER SUB-ASSY, OIL, RING, O(FOR OIL STRAINER), GASKET, OIL STRAINER.
