Toyota RAIZE — DECK BOARD & DECK TRIM COVER

58410BBOARD ASSY, DECK

main58410-B1160-B1i201910-202104

DARK GRAY,TRIM2#

main58410-B1161-B1i202111-202912

DARK GRAY,TRIM2#

main58410-B1180-C0i202111-202912

BLACK,TRIM2#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020×4i201910-202111

58582DMAT, REAR FLOOR, REAR

main58582-B1010i201910-202111

main58582-B1020i201910-202111

main00000-00000i201910-202111

62551PCOVER, REAR SEAT SIDE, RH

main62551-B1050-C0i201910-202111

BLACK,TRIM2#

62552NCOVER, REAR SEAT SIDE, LH

main62552-B1040-C0i202111-202912

BLACK,TRIM2#

62627DCOVER, SIDE TRIM, RH

main62521-B1010-C0i201910-202111

BLACK,TRIM2#

62628ACOVER, SIDE TRIM, LH

main62521-B1010-C0i201910-202111

BLACK,TRIM2#

62630UPANEL ASSY, QUARTER TRIM, REAR RH

main62630-B1160-C0i201910-202111

BLACK,TRIM2#

main62630-B1200-C0i202111-202912

BLACK,TRIM2#

62640SPANEL ASSY, QUARTER TRIM, REAR LH

main62640-B1160-C0i201910-202111

BLACK,TRIM2#

main62640-B1180-C0supersedes 62640-B1210-C0i202111-202912

64716DCOVER, DECK TRIM, REAR

main64716-B1100-C0i201910-202111

BLACK,TRIM2#

62635B1010C0DUST PROOF, SIDE WINDOW, NO.5

main62635-B1010C0

9004120346

main90041-20346

9046710161

main90467-10161

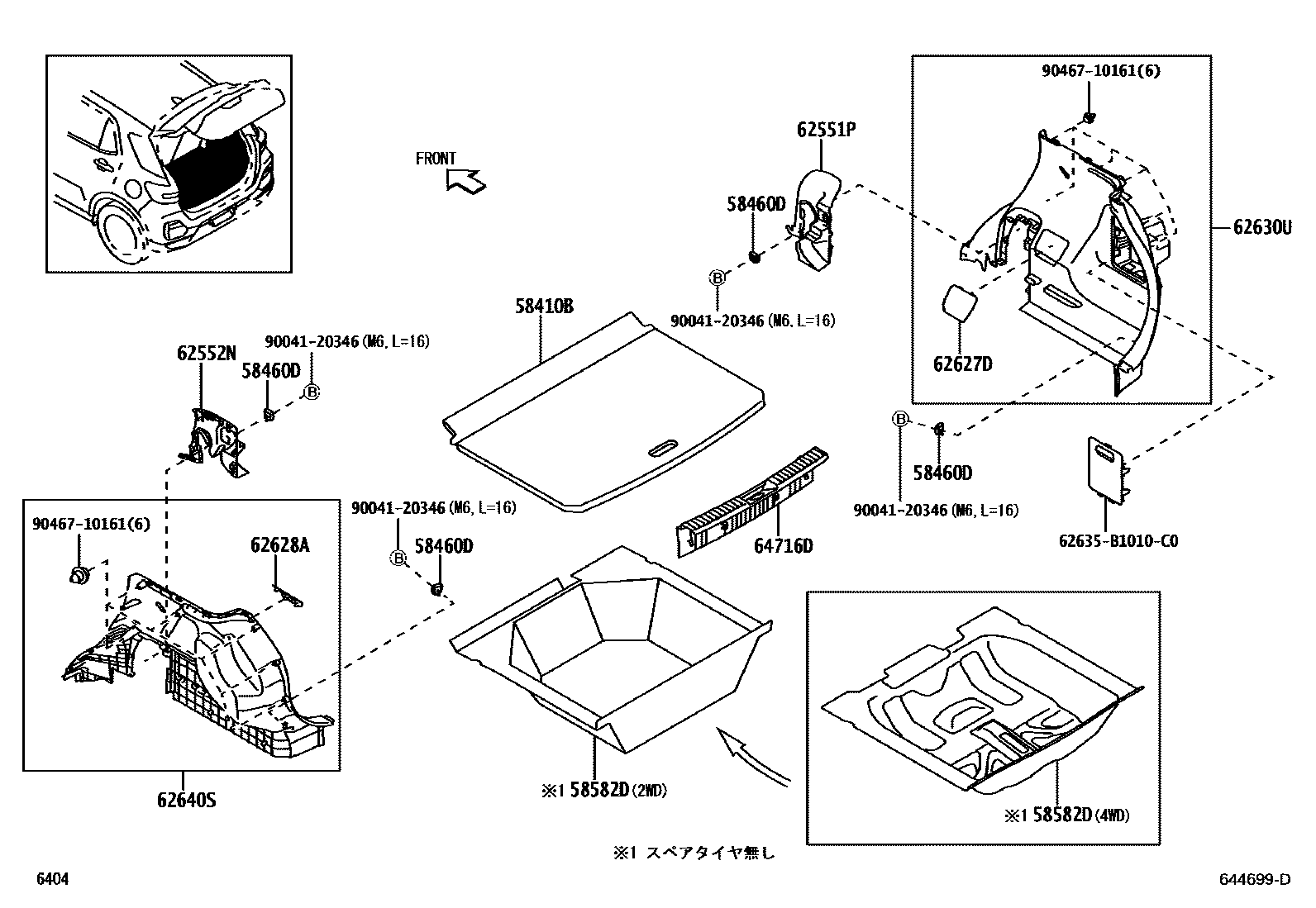

13 parts on this diagram · 3 diagrams in section

DECK BOARD & DECK TRIM COVER for Toyota RAIZE

This section contains 19 genuine Toyota parts for the DECK BOARD & DECK TRIM COVER system of the Toyota RAIZE. Key components include: BOARD SUB-ASSY, REAR FLOOR, BOARD ASSY, DECK, STRIKER ASSY, LUGGAGE HOLD BELT, HOOK, DECK BOARD LOCK, MAT, REAR FLOOR, REAR.
