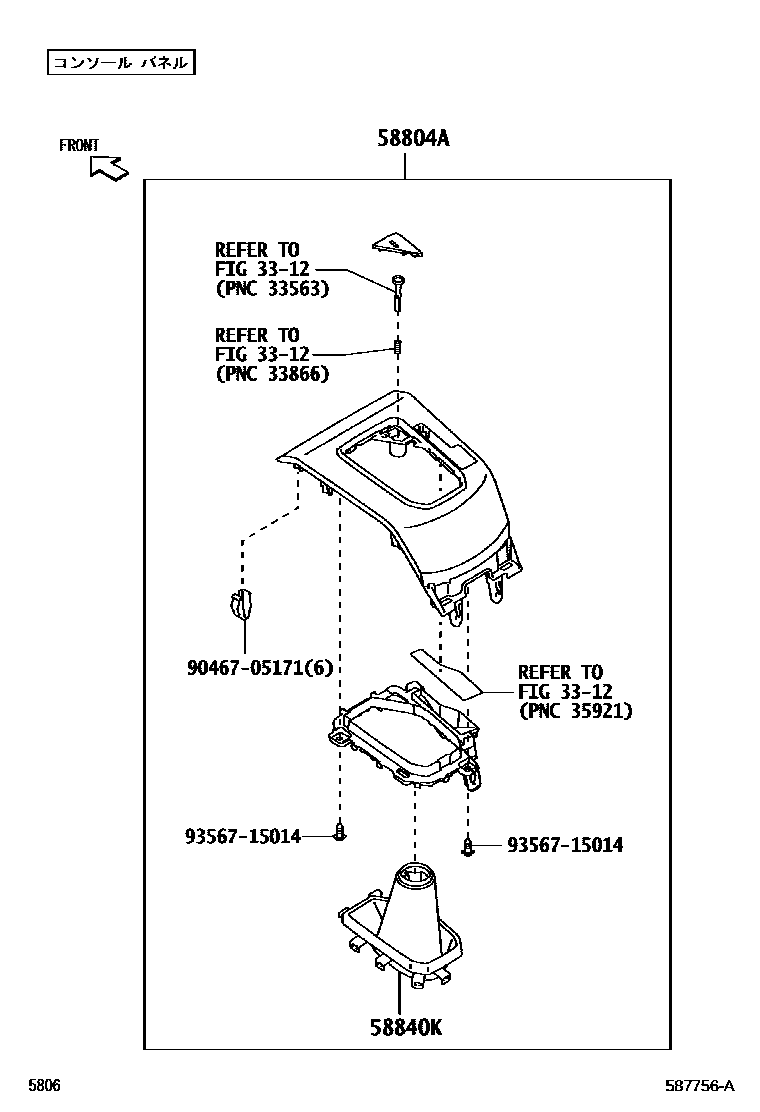

Toyota RAIZE — CONSOLE BOX & BRACKET

0001 1CONSOLE PANEL 0002 1CONSOLE PANEL 0003 1CONSOLE PANEL 0004 1CONSOLE PANEL(HYBRID) 0006 1CONSOLE PANEL 0007 1CONSOLE BOX 0009 1CONSOLE BOX

3312

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-B1010-C3iA201,210..X202111-202912

BLACK,TRIM2#

main58804-B1020-C1iA200,210..Z201910-202111

BLACK,TRIM2#

main58804-B1030-C1iA201,210..G202111-202912

BLACK,TRIM2#

main58804-B1040-C0iA201,210..Z202111-202912

BLACK,TRIM2#

main58804-B1050-C1iA202202111-202912

BLACK,TRIM2#

58840KCOVER ASSY, SHIFTING HOLE

main58840-B1070-C1iA201,210..X202111-202411

BLACK,TRIM2#

main58840-B1071-C1iA201,210..X202412-202912

BLACK,TRIM2#

main58840-B1080-C0iA200,210..G,Z201910-202111

BLACK,TRIM2#

main58840-B1081-C0iA201,210..G202412-202912

BLACK,TRIM2#

main58840-B1090-C0iA202202111-202411

BLACK,TRIM2#

main58840-B1091-C0iA202;A201,210..Z202412-202912

BLACK,TRIM2#

9046705171

main90467-05171

9356715014

main93567-15014

5 parts on this diagram · 7 diagrams in section
