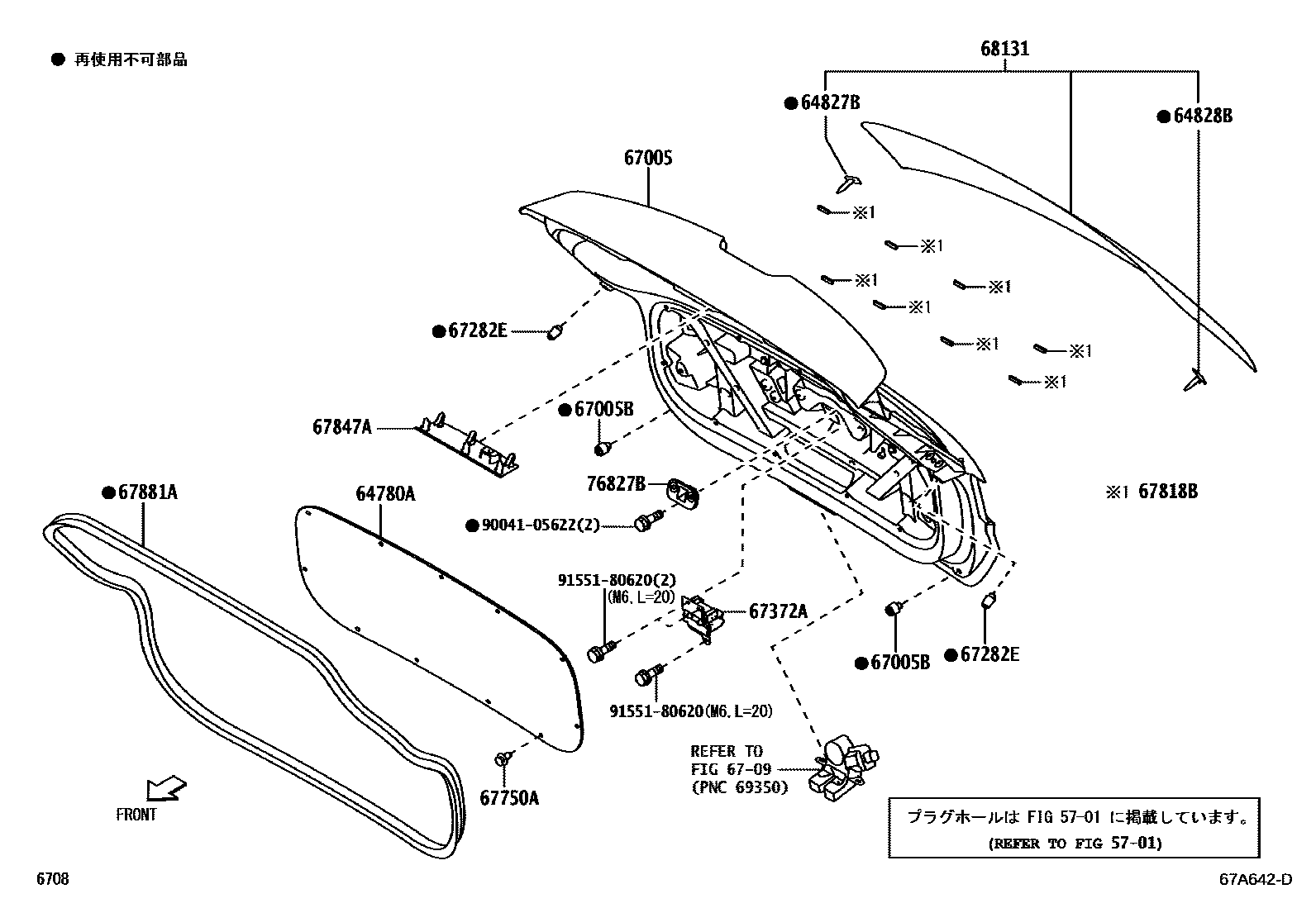

Toyota RAIZE — BACK DOOR PANEL & GLASS

5701HOLE PLUG

→ Go to FIG 57-01

64780APANEL ASSY, BACK DOOR TRIM

main64781-B1030-B0i201910-202106

DK GRAY,TRIM2#

main64781-B1031-B0i202107-202111

DK GRAY,TRIM2#

main64781-B1050-B0i202111-202912

BLACK,TRIM2#

64827BCLIP, BACK WINDOW GLASS, RH

main64827-B1050i201910-202111

64828BCLIP, BACK WINDOW GLASS, LH

main64828-B1040i201910-202111

67005PANEL SUB-ASSY, BACK DOOR

main67005-B1550-B0i201910-201912

main67005-B1551-B0i202111-202912

67005BCUSHION(FOR BACK DOOR PANEL)

main90045-41273×2i201910-202111

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

67282ECUSHION, BACK DOOR STOPPER, NO.3

main90045-41276×2i201910-202111

67372AWEIGHT, BACK DOOR

main67049-B1040i201910-202111

main67049-B2020i202111-202307

67750ACLIP(FOR BACK DOOR TRIM)

main90044-67609-C0×11i201910-202111

BLACK,TRIM2#

67818BSPACER, BACK WINDOW GLASS

main64818-B2010×8i201910-202111

67847ACOVER, BACK DOOR SERVICE HOLE

main67847-B1030-B0i201910-202111

LT.GRAY,TRIM2#

67881AWEATHERSTRIP, BACK DOOR

main67881-B1070i201910-202004

main67881-B1071i202005-202111

68131GLASS, BACK DOOR

main68105-B1060i202111-202912

76827BRETAINER, BACK DOOR GARNISH, NO.2

main76826-B1030i201910-202111

9004105622

main90041-05622

9155180620

main91551-80620

17 parts on this diagram · 5 diagrams in section

BACK DOOR PANEL & GLASS for Toyota RAIZE

This section contains 23 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota RAIZE. Key components include: HOLE PLUG, PANEL ASSY, BACK DOOR TRIM, CLIP, BACK WINDOW GLASS, RH, CLIP, BACK WINDOW GLASS, LH, PANEL SUB-ASSY, BACK DOOR.
