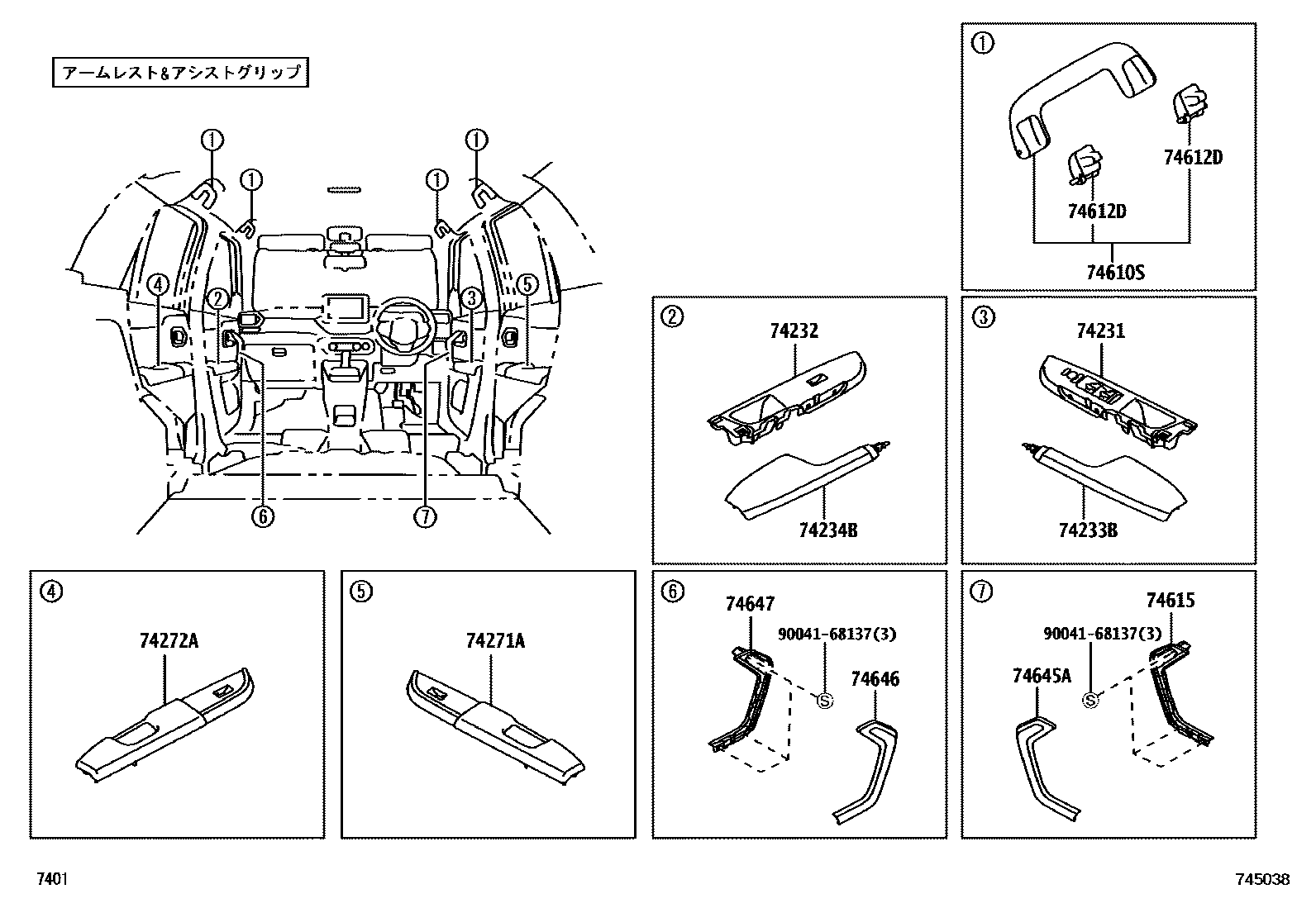

Toyota RAIZE — ARMREST & VISOR

0001 1ARMREST & ASSIST GRIP 0002 1VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-B1170-C0iA20#,210202111-202912

BLACK,TRIM2#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-B1170-C0iA200,210201910-202111

BLACK,TRIM2#

74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH

main74233-B1050-C0iA20#,210..G,X202111-202912

BLACK,TRIM2#

main74233-B1060-C0iA200,210..Z201910-202111

BLACK,TRIM2#

74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH

main74234-B1050-C0iA200,210..G,X201910-202111

BLACK,TRIM2#

main74234-B1060-C0iA200,210..Z201910-202111

BLACK,TRIM2#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-B1130-C0iA200,210201910-202111

BLACK,TRIM2#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-B1130-C0iA200,210201910-202111

BLACK,TRIM2#

74610SGRIP ASSY, ASSIST

main74610-B2030-B0×4iA200,210201910-202111

LT.GRAY,TRIM2#

74612DCOVER, ASSIST GRIP

main74612-B2070-B0×8iA200,210201910-202111

LT.GRAY,TRIM2#

74615BASE, ASSIST GRIP

main74647-B1010-C0iA200,210..X201910-202111

BLACK,TRIM2#

main74647-B1010-D0iA20#,210..G,Z202111-202912

RED,TRIM2#

74645ACOVER, DOOR ASSIST GRIP, RH

main74645-B1040-B0iA200,210201910-202111

SILVER,TRIM2#

74646COVER, DOOR ASSIST GRIP, LH

main74646-B1040-B0iA200,210201910-202111

SILVER,TRIM2#

74647BASE, DOOR ASSIST GRIP

main74648-B1010-C0iA200,210..X201910-202111

BLACK,TRIM2#

main74648-B1010-D0iA20#,210..G,Z202111-202912

RED,TRIM2#

9004168137

main90041-68137

13 parts on this diagram · 2 diagrams in section
