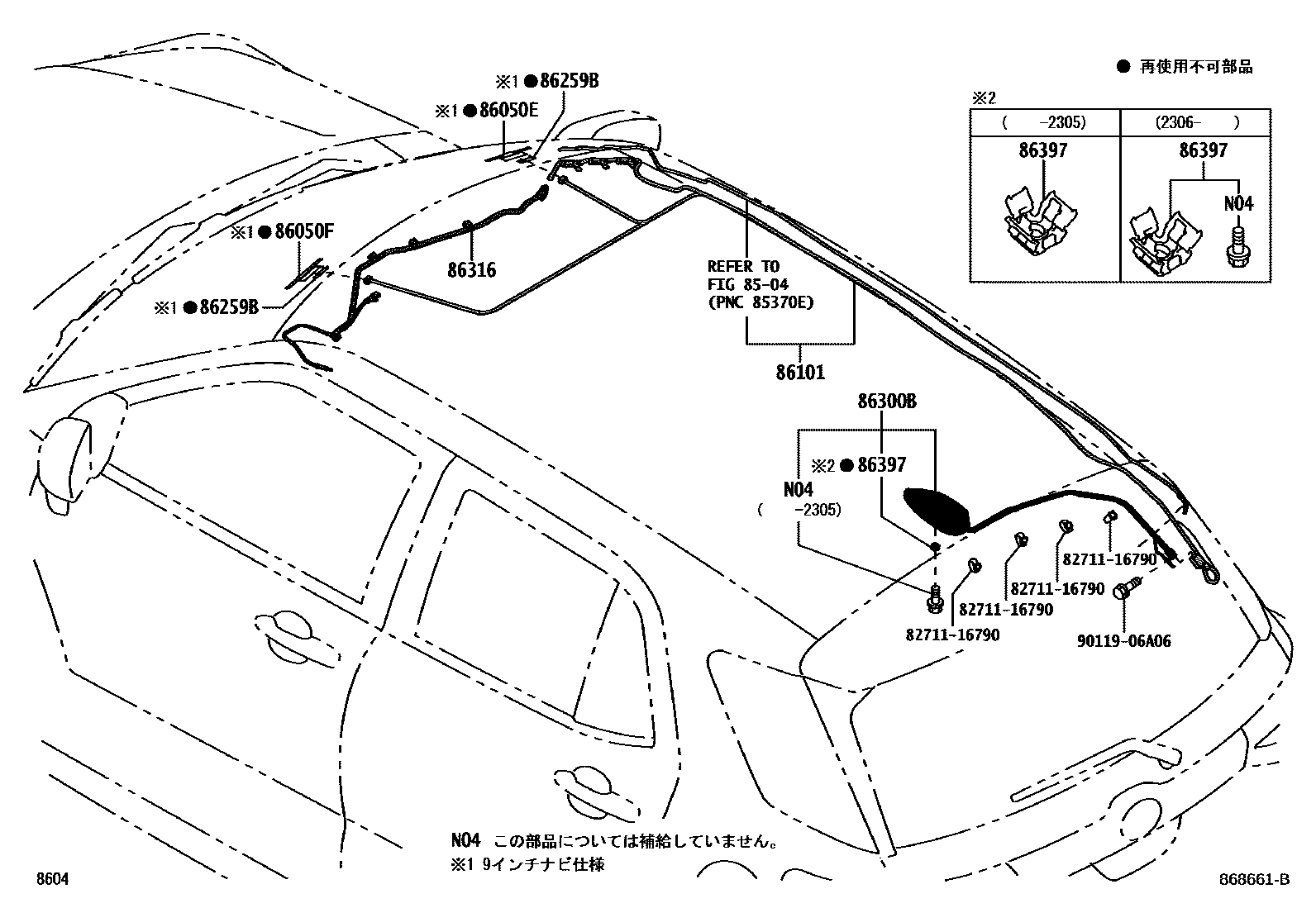

Toyota RAIZE — ANTENNA

8504REAR WASHER

→ Go to FIG 85-04

86050EANTENNA ASSY, TELEVISION

mainC8648B1010i202411-202912

86050FANTENNA ASSY, TELEVISION

mainC8648B1020i202111-202411

86101CORD SUB-ASSY, ANTENNA

main86159-B1020supersedes 86316-B1440i202111-202411

86259BTERMINAL, ANTENNA NO.1

main86259-B1010×2i201910-202002

main86259-B1020×2i202411-202912

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-B1180-A0supersedes 86300-B1160-A0i202411-202912

main86300-B1180-B0supersedes 86300-B1160-B0i201910-202111

main86300-B1180-B1supersedes 86300-B1160-B1i202111-202411

main86300-B1180-C0supersedes 86300-B1160-C0i202411-202912

main86300-B1180-D0supersedes 86300-B1160-D0i201910-202111

main86300-B1180-E0supersedes 86300-B1160-E0i201910-202111

main86300-B1180-F0supersedes 86300-B1160-F0i201910-202111

main86300-B1180-J0supersedes 86300-B1160-J0i201910-202111

main86300-B1180-J1supersedes 86300-B1160-J1i202411-202912

86316CABLE, ANTENNA

main86159-B1010supersedes 86316-B1420i201910-202111

86397PLATE, ANTENNA EARTH

main86397-B1020i202306-202912

main86397-B2020i201910-202111

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

9011906A06

main90119-06A06

10 parts on this diagram · 1 diagram in section

ANTENNA for Toyota RAIZE

This section contains 10 genuine Toyota parts for the ANTENNA system of the Toyota RAIZE. Key components include: REAR WASHER, ANTENNA ASSY, TELEVISION, CORD SUB-ASSY, ANTENNA, TERMINAL, ANTENNA NO.1.
