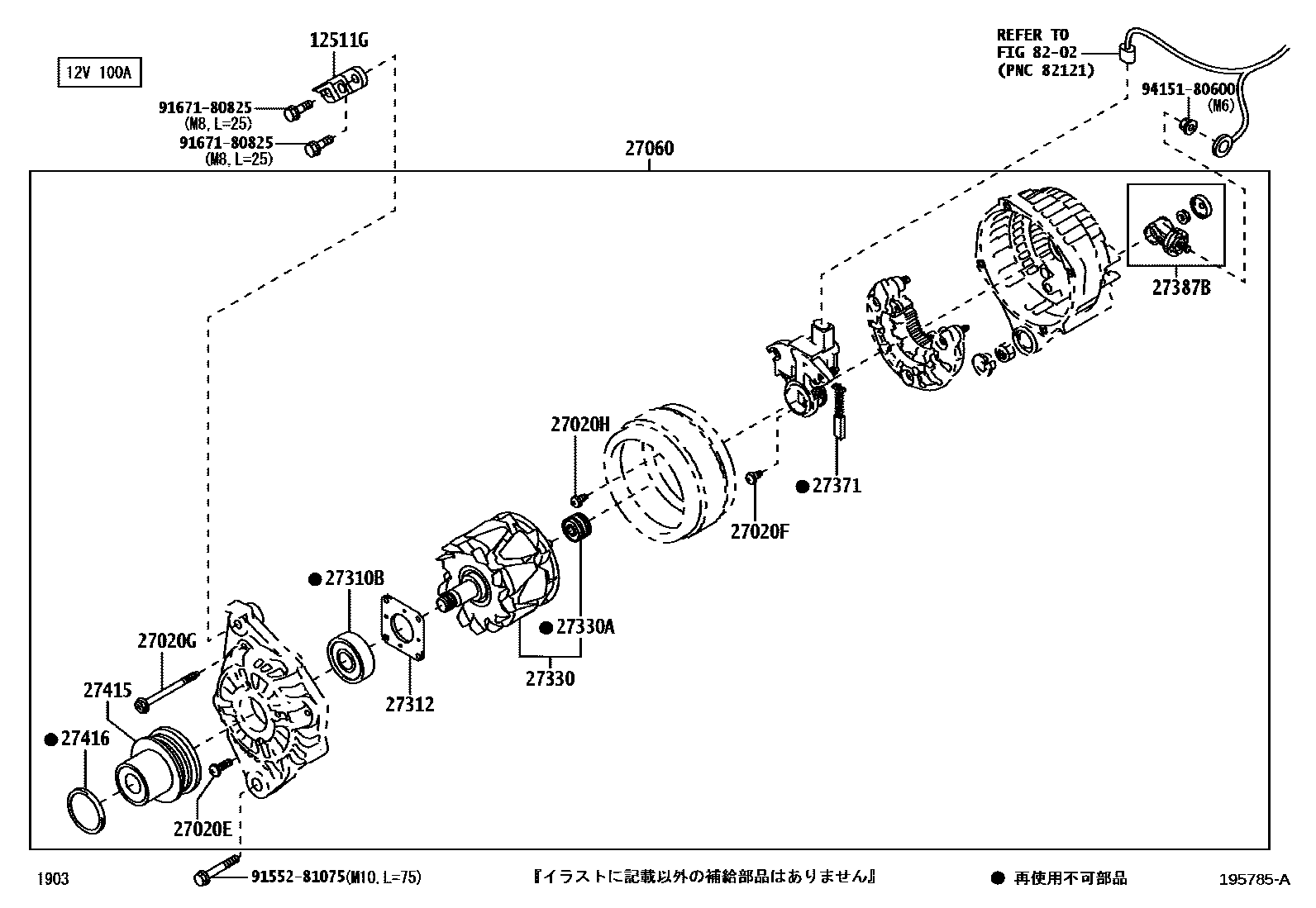

Toyota RAIZE — ALTERNATOR
12511GBRACKET, ALTERNATOR, NO.2
27020EBOLT(FOR ALTERNATOR)
27020FBOLT, NO.1(FOR ALTERNATOR)
27020GBOLT, NO.2(FOR ALTERNATOR)
27020HBOLT, NO.3(FOR ALTERNATOR)
27060ALTERNATOR ASSY, W/REGULATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27330ABEARING(FOR ALTERNATOR ROTOR)
27371BRUSH, ALTERNATOR
27387BINSULATOR, ALTERNATOR TERMINAL
27415PULLEY, ALTERNATOR W/CLUTCH
27416CAP, ALTERNATOR PULLEY
8202WIRING & CLAMP
9155281075
main91552-81075
9167180825
main91671-80825
9415180600
main94151-80600
18 parts on this diagram · 3 diagrams in section
ALTERNATOR for Toyota RAIZE
This section contains 18 genuine Toyota parts for the ALTERNATOR system of the Toyota RAIZE. Key components include: BRACKET, ALTERNATOR, NO.2, BOLT(FOR ALTERNATOR), BOLT, NO.1(FOR ALTERNATOR), BOLT, NO.2(FOR ALTERNATOR), BOLT, NO.3(FOR ALTERNATOR).
