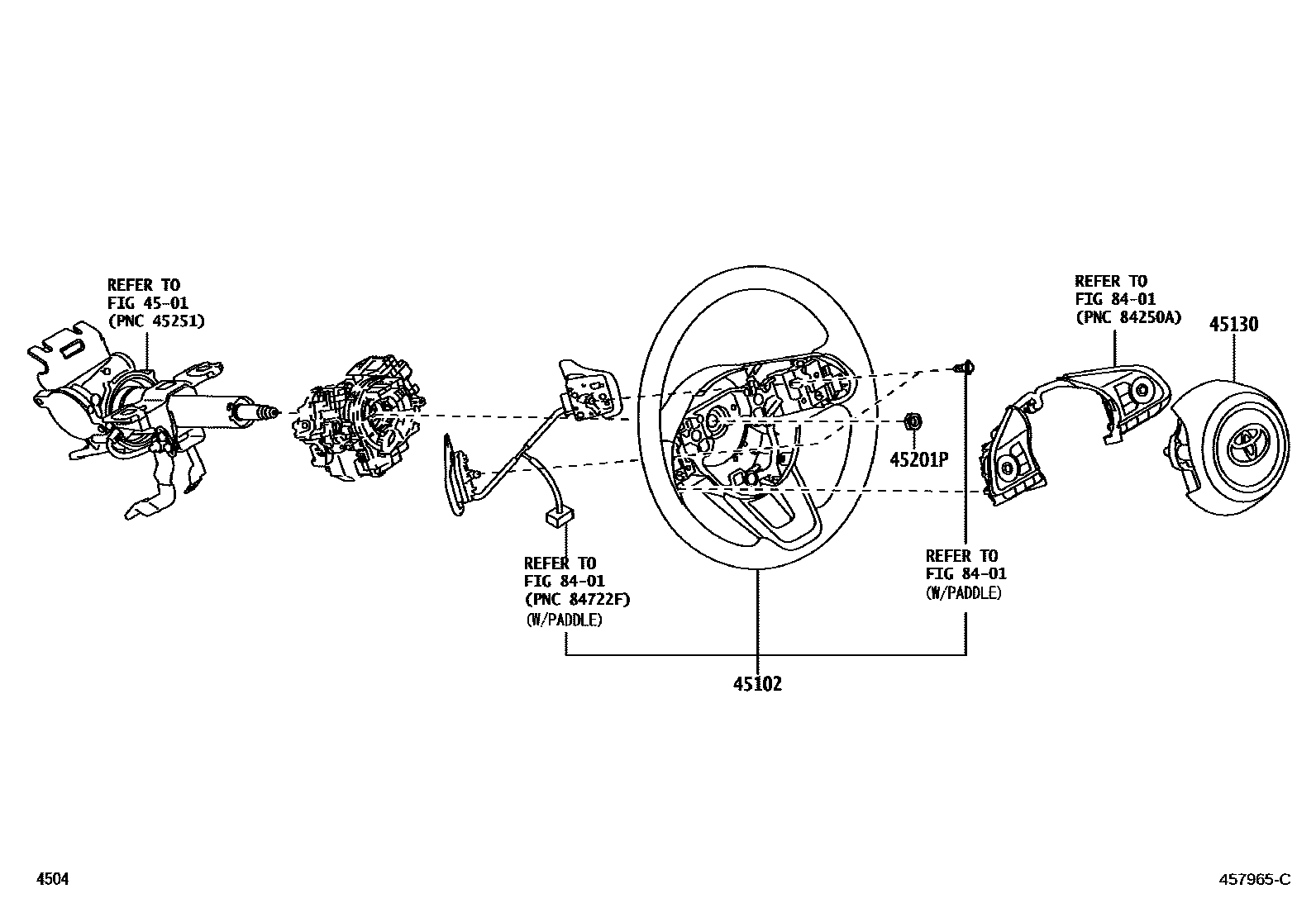

Toyota RAIZE — STEERING WHEEL

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

45102WHEEL SUB-ASSY, STEERING

main45102-BZA00-C0i202108-202608

BLACK,TRIM2#

main45102-BZA10-C0i202104-202608

BLACK,TRIM2#

main45102-BZA20-C0i202104-202607

BLACK,TRIM2#

main45102-BZA30-C0i202108-202608

BLACK,TRIM2#

45130BUTTON ASSY, HORN

main45130-BZ860-C0i202104-202608

BLACK,TRIM2#

45201PNUT, STEERING WHEEL SET

main9004A-17176i202104-202608

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

5 parts on this diagram · 3 diagrams in section

STEERING WHEEL for Toyota RAIZE

This section contains 8 genuine Toyota parts for the STEERING WHEEL system of the Toyota RAIZE. Key components include: STEERING COLUMN & SHAFT, WHEEL SUB-ASSY, STEERING, WIRE SUB-ASSY, HORN BUTTON, ORNAMENT, STEERING WHEEL, NO.1, ORNAMENT, STEERING WHEEL, NO.2.
