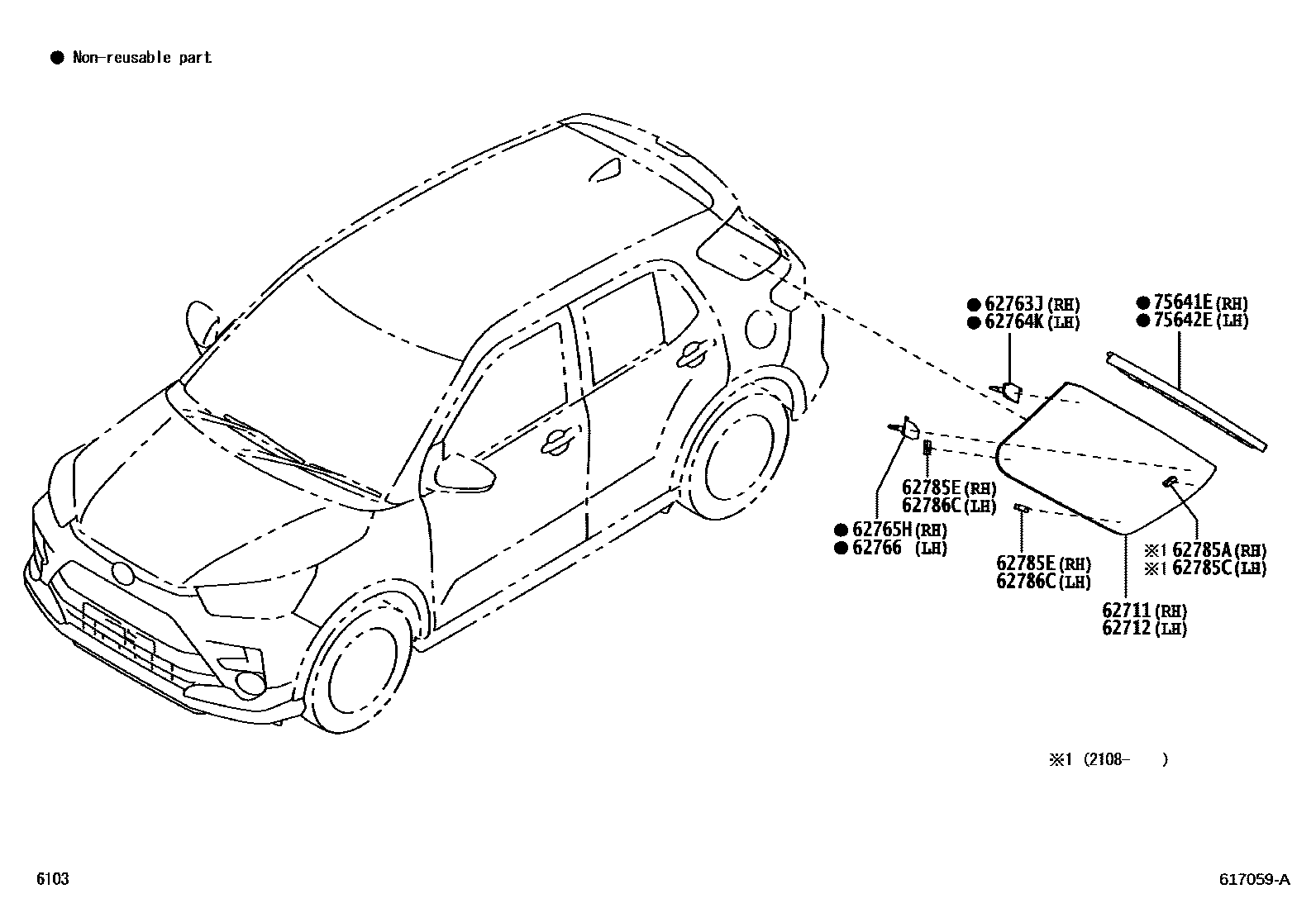

Toyota RAIZE — QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-BZ340i202104-202608

62712GLASS, QUARTER WINDOW, LH

main62712-BZ340i202104-202608

62763JRETAINER, QUARTER WINDOW GLASS, UPPER

main62763-BZ080i202104-202608

62764KRETAINER, QUARTER WINDOW GLASS, UPPER

main62764-BZ080i202104-202608

62765HRETAINER, QUARTER WINDOW GLASS, LOWER

main62765-BZ060i202104-202608

62766RETAINER, QUARTER WINDOW GLASS, LOWER LH

main62766-BZ060i202104-202608

62785ASPACER, QUARTER WINDOW GLASS

main64818-BZ010i202108-202608

62785CSPACER, QUARTER WINDOW GLASS

main64818-BZ010i202108-202608

62785ESPACER, QUARTER WINDOW GLASS, RH

main64818-BZ010×2i202104-202608

62786CSPACER, QUARTER WINDOW GLASS, LH

main64818-BZ010×2i202104-202608

75641EMOULDING, QUARTER WINDOW, RH

main75641-BZ090i202104-202608

75642EMOULDING, QUARTER WINDOW, LH

main75642-BZ090i202104-202608

12 parts on this diagram · 1 diagram in section

QUARTER WINDOW for Toyota RAIZE

This section contains 12 genuine Toyota parts for the QUARTER WINDOW system of the Toyota RAIZE. Key components include: GLASS, QUARTER WINDOW, RH, GLASS, QUARTER WINDOW, LH, RETAINER, QUARTER WINDOW GLASS, UPPER, RETAINER, QUARTER WINDOW GLASS, LOWER.
